Socomac- MONOLINA CNC Diamond Wire Saw Profiling Machine

Name: Socomac- MONOLINA CNC Diamond Wire Saw Profiling Machine
Brand: Euro Arss S.C.
SKU: 3955
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine

Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Regular guidance & maintenance

Supplier

Euro Arss S.C.

Socomac

Poland

Main Product:

Bridge Cutting Machine, Water Jet, CNC Work Center, Gang Saw, Polishing Line|

Contact supplier

Start Order

You may also like

CNC Diamond Wire Saw Shaping Machine Marble Granite Cutting Machine

Cnc profiling wire saw machine

Stone CNC Wire Saw Machine

Profiling CNC Diamond Wire Block Cutting Shaping Profiling Machine

SHXJ-LY-1800&2200 Four -Axis Column Movable Type CNC Wire Saw Machine

Product Detail
Company Profile

Overview

Machinery Function Features

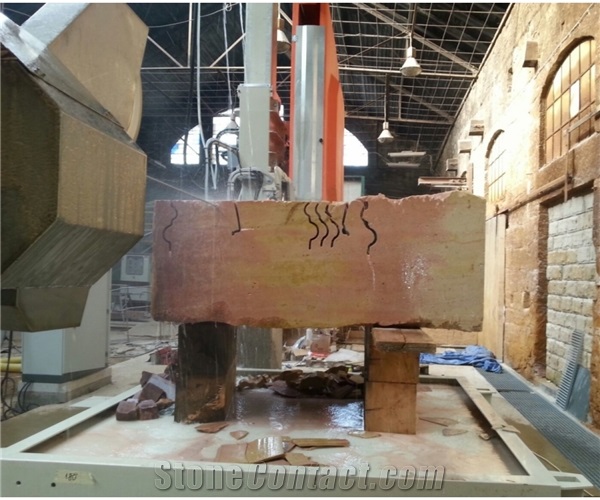

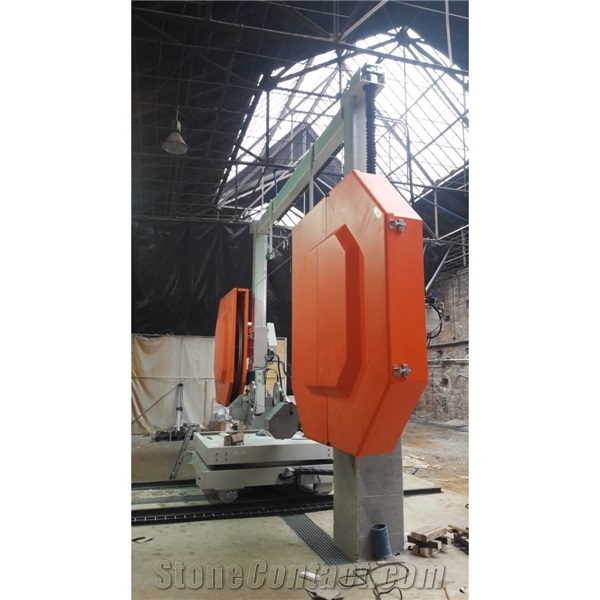

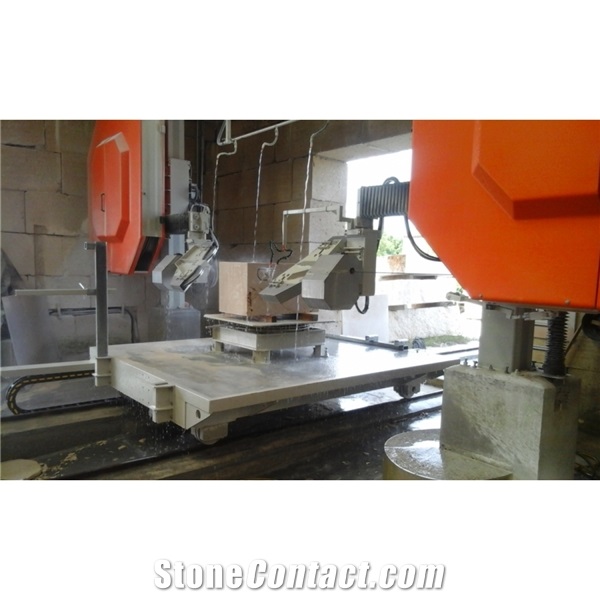

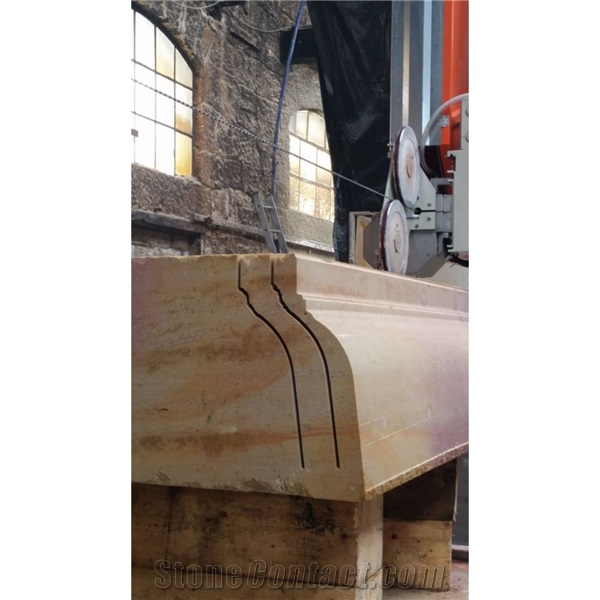

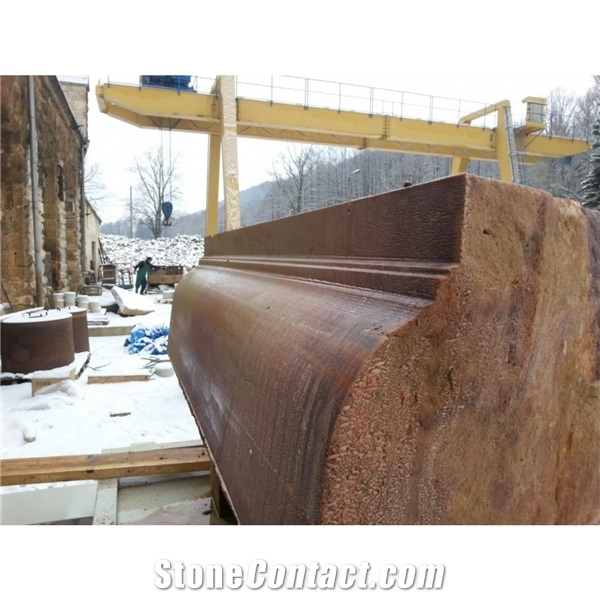

The machine is designed to cut decorative profiles from stone blocks. It is equipped with 2 flywheels with a diameter of 2,350 mm and 2 pairs of small flywheels with a diameter of 400 mm to guide the rope in any direction. Small flywheels are mounted on movable arms to reduce the distance between them and the material and increase the precision of the cut. The flywheel motor is equipped with an inverter to adjust the circumferential speed of the rope.

Technical Data

Parameters	Unit	MONOLINA
Total installed power	kw	22
Total water requirements	L/min	50
flywheels diameter (2 pcs)	mm	2350
Wire actuating motor power	kw	15
Compressed air requirements	L/min	10
Diamond wire length	m	21.9
Guide flywheels diameter (2 pcs)	mm	400
