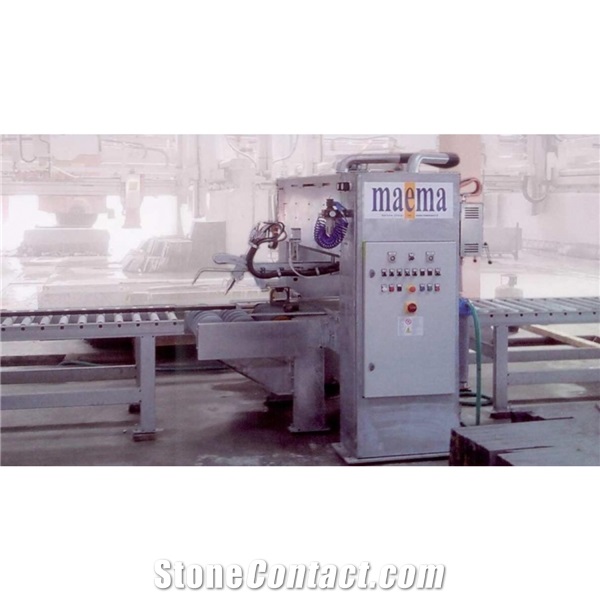

Maema- KOMPATTA Automatic Flaming and Bush Hammering Machine
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Stone Flaming Machine
Usage:
Granite, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Main Product:
Bridge Cutting Machine, Water Jet, CNC Work Center, Gang Saw, Polishing Line|
Machinery Function Features

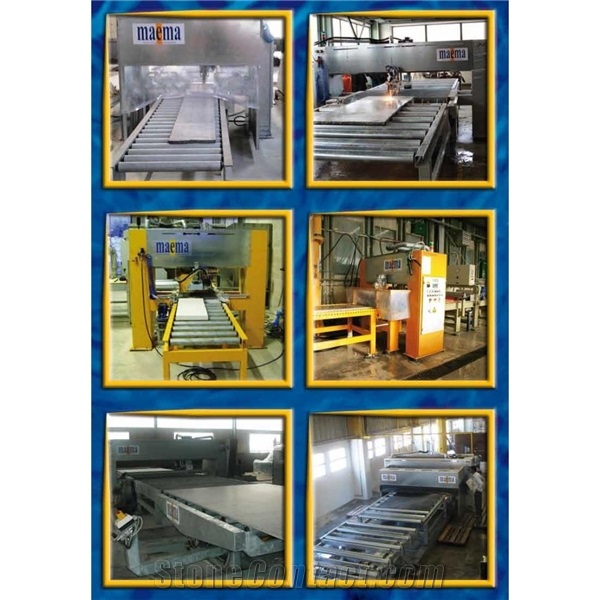

Flame machine mod. KOMPATTA for processing boards with maximum dimensions of 2200x150h mm, including:
roller conveyor with passive rollers for loading panels; dimensions 2000 x 2200 mm
independent bridge for vertical displacement of the slide and left-right movement of the flame tube group
1 or 2-burner flame system and bushing system for 1 to 4 bush hammers.
motorized conveyor belt to move the plates under the processing bridge; dimensions
roller conveyor with passive rollers for plate unloading; dimensions 2000 x 2200 mm.
serial voltage / frequency Volt / Hz 400 /
Technical Data
Parameters |
Unit |
KOMPATTA |
Voltage |
Volt / Hz |
400/50 |
Number of bush hammers |
nr |
1 to 4 |
The length of the conveyor belt |
mm |
1500 |
Max. working thickness |
mm |
150 |
No. of fire head |
nr |
1 to 2 |
Length of roller conveyors for loading/unloading slabs |
mm |
2500 |
Max. working width |
mm |
2200 |
