Cogeim Europe- STL / A 1500 SHOT GUN Shot Blasting Machine
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Stone Sandblasting Machine
Usage:
Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Main Product:
Bridge Cutting Machine, Water Jet, CNC Work Center, Gang Saw, Polishing Line|
Machinery Function Features

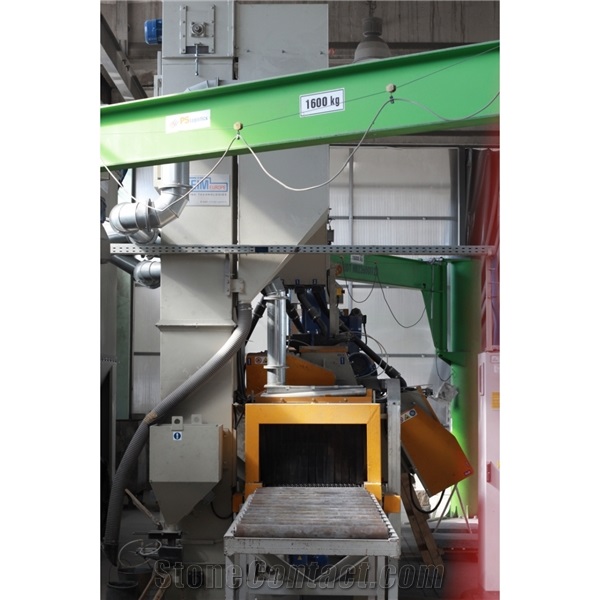

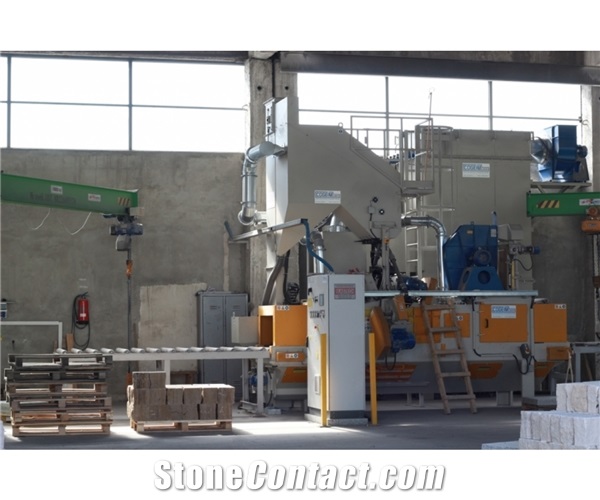

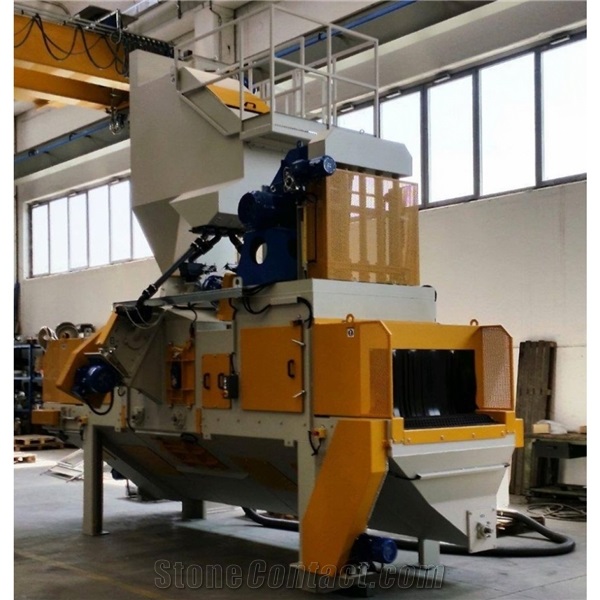

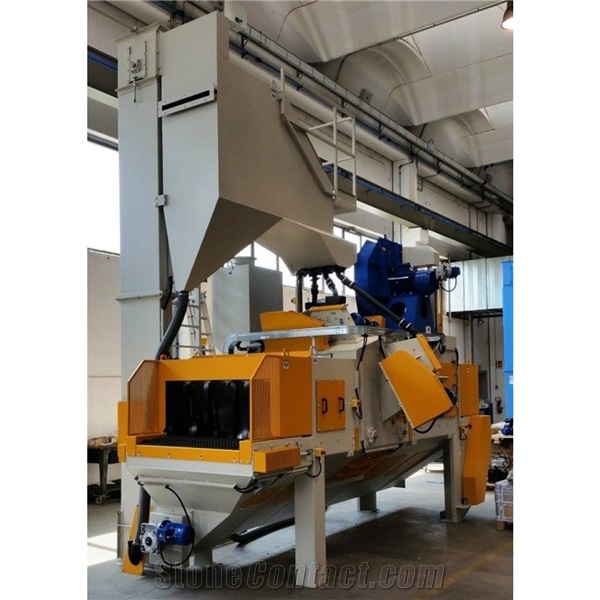

STL / A 1500 SHOT GUN
This machine is particularly suitable for shot blasting concrete, agglomerate, marble, stone, granite and other neutral materials of various shapes and sizes.
Main characteristics:
* Shot blasting only on the upper outer surface of parts and on the side of parts as an option
* Operated with a turbine system with centrifugal ejection of steel shot.
* Closed mesh metal mesh mat.
* The speed of the mat is regulated by the control board.
* Turbine speed adjustable by control board.
Technical Data
Parameters |
Unit |
STL / A 1500 SHOT GUN |
conveyor belt width |
mm |
1600 |
adjustable turbine speed |
rpm |
1300 ÷ 3000 |
max. height of details (thickness) |
mm |
~400 |
shot speed |
m/sec |
38 ÷ 78 |
useful width of the conveyor belt |
mm |
1500 |
Dust removal of air |
m3/h |
11.000 |
total shot throwing capacity |
kg/min |
360 |
1 blower for cleaning workpieces |
6500 m³ / hour - 22 kW |
|
number of installed turbines, type CG 380 |
nr |
4 |
turbine engine power |
kW |
7.5 each |
Processing speed |
m/min |
0.5 ÷ 5 |
