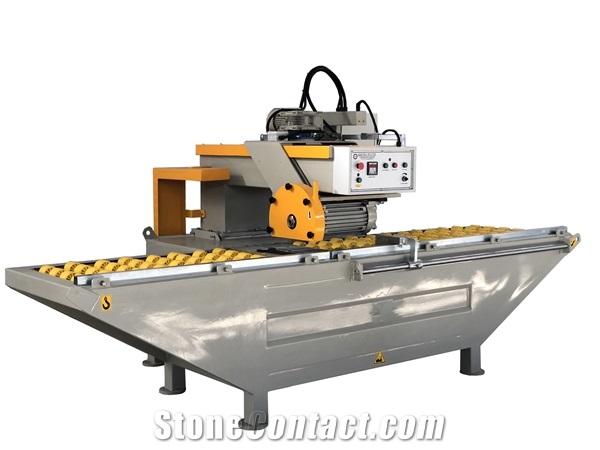

Head Cross Cutting Machine

Name: Head Cross Cutting Machine
Brand: Grotto Group
SKU: 3977
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine

Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Regular guidance & maintenance, Remote troubleshooting

Trade Terms

Delivery Details: FOB,CIF,EXW

Payment :

Supplier

Grotto Group

Turkey

Eatablished :Feb 23,2018

Main Product:

Marble, Travertine, Onyx, Machine|

Contact supplier

Start Order

You may also like

SQ-600 Hand Pulling Edge Cutting Machine- Strip Cutting Machine

Thin Stone Veneer Saw

Stone Corner Cutting Machine Thin Veneer Saw For Marble Granite

Oil Immersed Edge Cutting Machine

Stone Trimming Machine

Product Detail
Company Profile

Overview
Trade Terms

Machinery Function Features

HEAD CUTTING MACHINE ( CROSS CUTTING MACHINE ) •Working Width: 680 mm •Working Thicknes : 10 - 100 mm •Disc Diameter: 350 - 450 mm •Motor Power: 7,5 kW •Bridge Motor Power: 0,75 kW •Total Motor Power: 8,25 kW •Water Consumption: 120 lt / min •Machine Dimensions ( W / L / H ): 2150 / 3380 / 1700 mm •Machine Weight : 1200 Kgs •Roler Conveyor •Linear Guide Movement •Double Electric Panel

Technical Data

Parameters	Unit	Head Cross Cutting
Maximum thickness	mm	100
Number of disc-holder heads	nr	1
Waste outfeed roller bench length	mm	3380
Machine width (W)	mm	2150
Cooling water requirement	L/min	120
Installed electrical power	kw	8.25
Approximate weight	Kg	1200
Minimum working thickness	mm	10
Disc-holder head motor pover	kw	7.5
Disc diameter	mm	350 - 450
Machinable width	mm	680
Machine height (H)	mm	1700
Conveyor system motor power	kw	0.75
