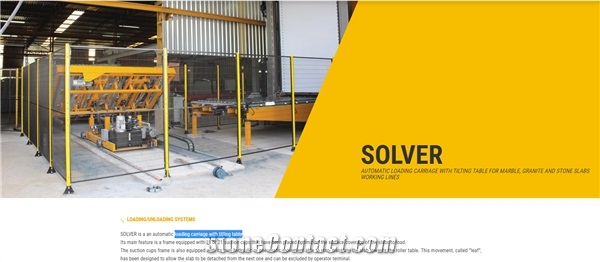

SOLVER Automatic Loading Carriage with Tilting Table for Marble, Granite, Artificial Stones Working Lines

SOLVER is a an automatic loading carriage with titling table. Its main feature is a frame equipped with 18 or 21 suction cups that have been placed optimizing the surface coverage of the slabs to load. The suction cups frame is also equipped with its own hydraulic or pneumatic movement able to roto- translate the slab towards the roller table. This movement, called “leaf”, has been designed to allow the slab to be detached from the next one and can be excluded by operator terminal. This carriage is supplied with touch screen control panel to set up all parameters. An ultra sonic sensor is detecting the carriage positioning. The carriage is moved by means gearmotor, inverter controlled, for a precise and delicate loading of slabs. The automatic operation of the carriage runs by means of sensors: they check the position of the machine, the presence or absence of slab and the connection with the roller conveyor. All these operations are stood over by means of last generation PLC system. SOLVER carriage is available with increased payload of 1,500 kg or 2,500 kg. It is also available the model equipped with rotating suction cups frame to operate lines where the slab supports are placed onto their own axe.
