Onejet Waterjet Machine For Marble, Granite, Quartz

Name: Onejet Waterjet Machine For Marble, Granite, Quartz
Brand: ONEJET CO.,LTD
SKU: 4045
Price: 36800 USD
Availability: InStock

FOB Price:$36800-56800

Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 30 wprking days

Warranty:18 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

ONEJET CO.,LTD

OneJet

China

Eatablished :Aug 06,2015

Main Product:

Waterjet, Waterjet Cutting Machine, Abarsive Waterjet, Engraving Machine, Marble Waterjet, Waterjet Cutter|

Contact supplier

Start Order

You may also like

5-Axis Waterjet Machine For Stone Countertops And Art Pattern Cutting

Trend Pro Series Intensifier Pump For Waterjet Machines

Next Jet CNC Waterjet Saw – Stone Cutting Machine

CNC 5 Axis Waterjet Machine

CNC 5-Axis Water Jet Machine, Waterjet Cutting Machine

Product Detail
Company Profile

Overview
Components
Video
Customer Case

Machinery Function Features

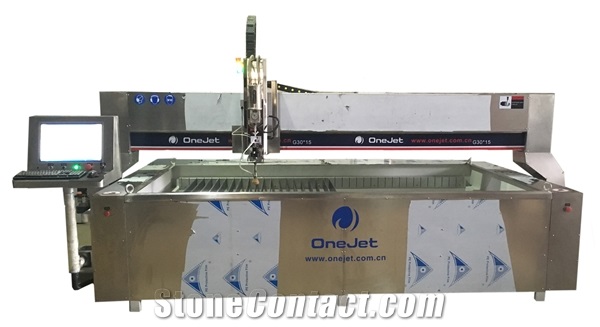

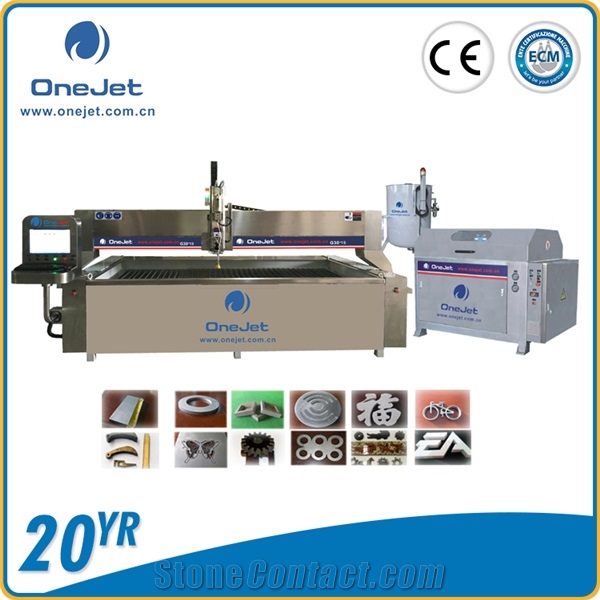

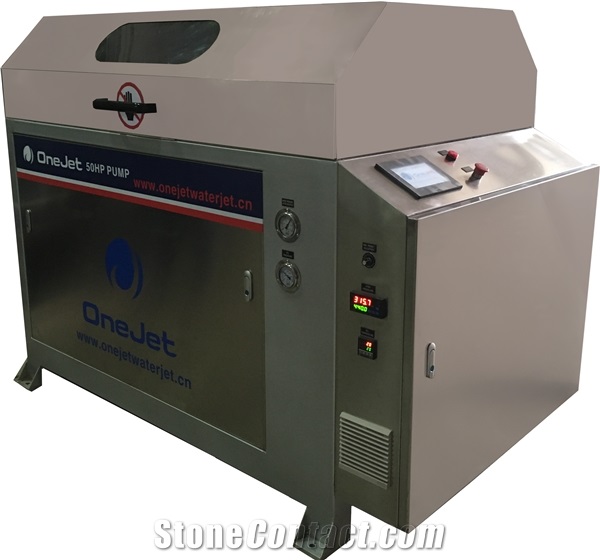

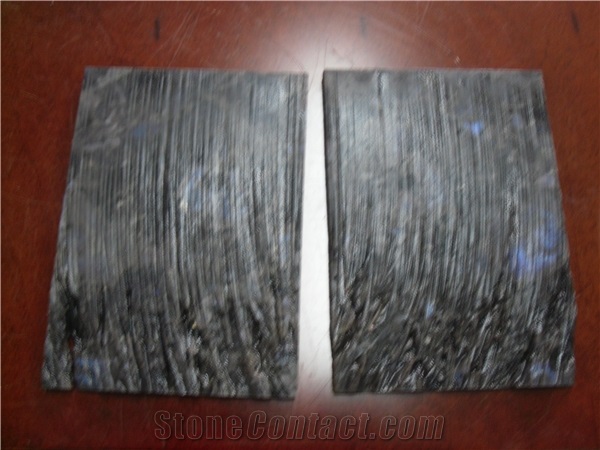

Onejet waterjet cutting granite up to 100mm thick Maxi cutting thickness for granite: 150mm pump:50HP working pressure: from 0-380mpa,adjustable Siemense Motor,PLC,softstarter Cutting size can be customized upto 4 by 8 meters. Thress axis,five axis optional

Technical Data

Parameters	Unit	ONEJET50-G30*15

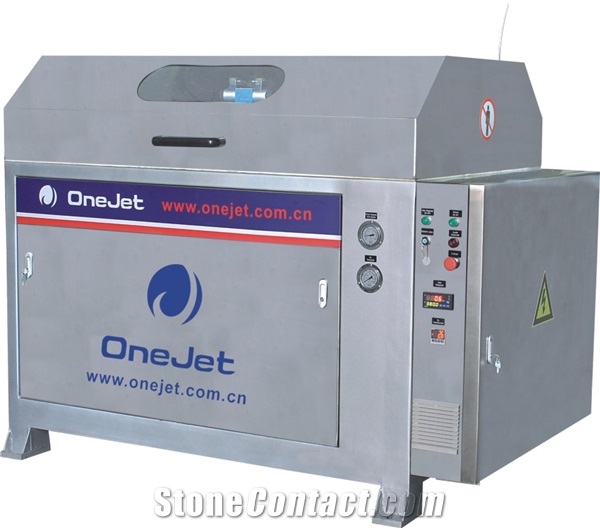

Waterjet pump power	kw	37

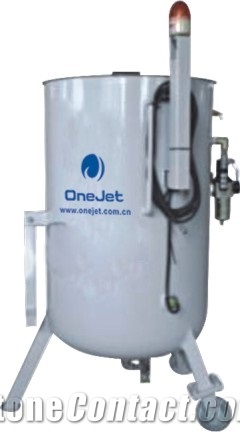

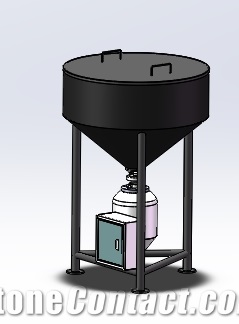

Capacity of external tank for abrasive	Kg	500
Dimensions of the work table	mm	4400X2150X2150
Machine length (L)	mm	6500
Waterjet pump capacity	L/min	3.7
Y-axes travel	mm	1500
Machine width (W)	mm	3500
CNC Control System		Weihong CNC
Machine height (H)	mm	2250
Cutting Accuracy	mm	0.1
X-axis travel	mm	3000
Average level of equivalent sound power	dB	75
Approximate weight(including table)	Kg	4170
X - Y axis displacement speed	m/min	10
Waterjet max pressure	bar	4137
Z-axes travel	mm	180
Max orifice diameter	mm	0.35
Max. cutting thickness for granite	mm	150mm

Software

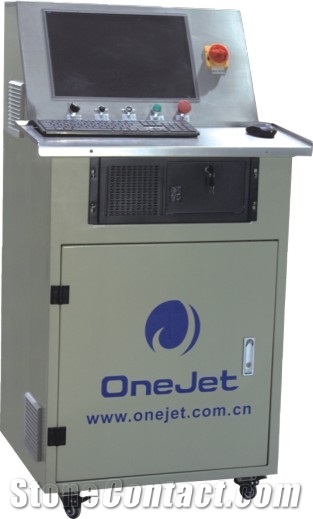

Industrial computer based on Windows; Naiky professional control card and motion card;All stainless steel structure; Wiresless keyboard and mouse; Intel dual-core CPU, 3 USB;Remote assist available from producer;flexiable moving wheels

1, Leadin & lead-out setting in software

2, Manual and Auto

3, DXF,NC,CNC,G CODES accept

4, Easy operation: NCstudio/ESA/ECS control for choose, programm easy and opertaion simple. cutting parameters date inside control

5, SERVOS: ALL servos in XYZ, M2,CANOpen and EtherCAT communication

6,Pressure can be adjustable in control system from 0-380mpa any time and any points. Save energy in cutting different materials

7,All alarms show in software
