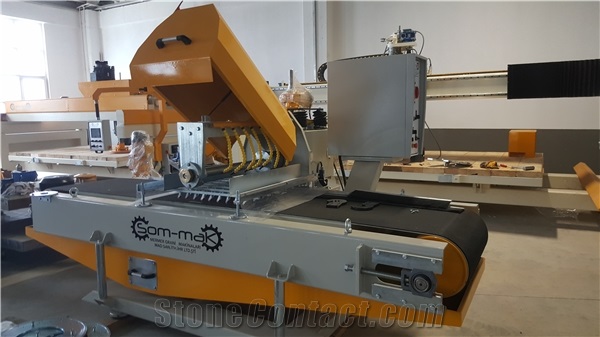

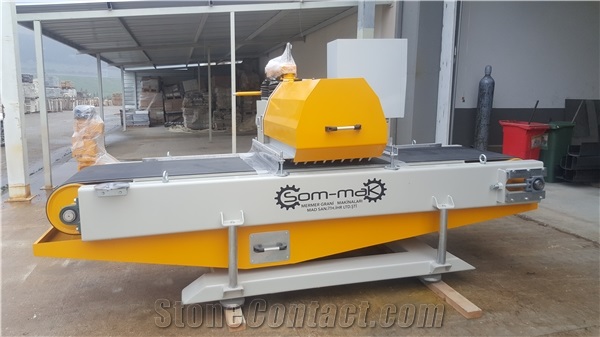

Multi-Blade Cross-Cutter, Trimming Machine

Name: Multi-Blade Cross-Cutter, Trimming Machine
Brand: Som-maK Mermer Granit Makina Ltd Sti
SKU: 4253
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming

Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting, Field troubleshooting

Supplier

Som-maK Mermer Granit Makina Ltd Sti

Som-maK

Turkey

Eatablished :Mar 01,2022

Main Product:

Mermer Makina, Alın Cila Pah Makinası, Köprü Plaka Kesme, Yan Kesme Makinası, Cnc Router , Plaka Cila Makinasi|

Contact supplier

Start Order

You may also like

Automatic Curbstone Cutting Machine Line

Slicing Machine For Kerbstone With Two Worktables

PGB-600/800-Double Heads Tile Cutting Machine

KDQ-600 Multi-Blades Stone Cutting Machine

Auto.Cross-Lengthway Cutting Machine- Multi-Blade Cross-Cutter

Product Detail
Company Profile

Overview

Machinery Function Features

MULTIPLE CUTTING MACHINE TECHNICIAL SPECIFICATIONS Cutting Engine Power 22/30 kw Cutting Engine Speed 2800 rpm Band Motor Power 0,55 kw Belt Speed 65 cm / min Saw Lowering / Lifting Motor Power 0,18 kw Press Up Down Motor Power 0,18 kw Maximum Cutting Width 650 mm Minimum Cutting Width 50 mm Maximum Cutting Thickness 120 mm Minimum Cutting Thickness 10 mm Saw Diameter 250-350 mm Number of Saws Min: 2 / Max: 13 pcs Control System Manuel Button PLC optional Miter System Available Water Consumption 60 liters / min Machine Dimensions (width - length - height) 2100 - 3550 - 2000 mm Machine Weight 1500 kg Machine dimensions can be changed according to customer demand.

Technical Data

Parameters	Unit	Multi-Blade Cross-Cutter
Outfeed conveyor belt motor power	kw	0,18
Number of disc-holder heads	nr	Min: 2 / Max: 13 pcs
Discs diameter	mm	250-350
Disc-holder head motor power	kw	22/30
Water requirement for each spindle	L/min	60
Min.Strip Machinable width	mm	50
Unloading robot driving motor power	kw	0,18
Min. working strip thickness	mm	10
Cutting Engine Speed	rpm	2800
Machine length (L)	mm	3550
Conveyor system control motor power	kw	0.55
Max.Strip Machinable width	mm	650
Machine height (H)	mm	2000
Approximate weight	Kg	1500
Max. working strip thickness	mm	120
Bridge advancement speed	cm/min	65
Machine width (W)	mm	2100
Infeed roller bench motor power	kw	0,18
