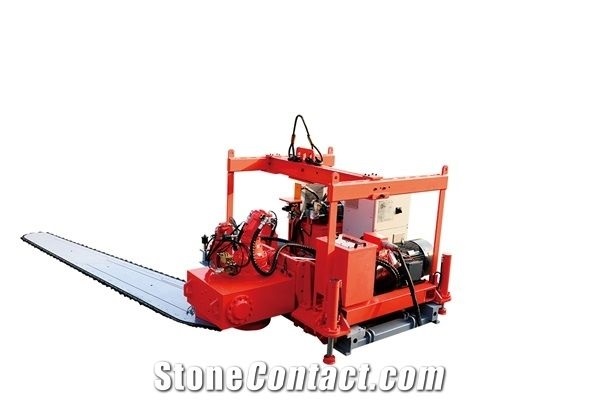

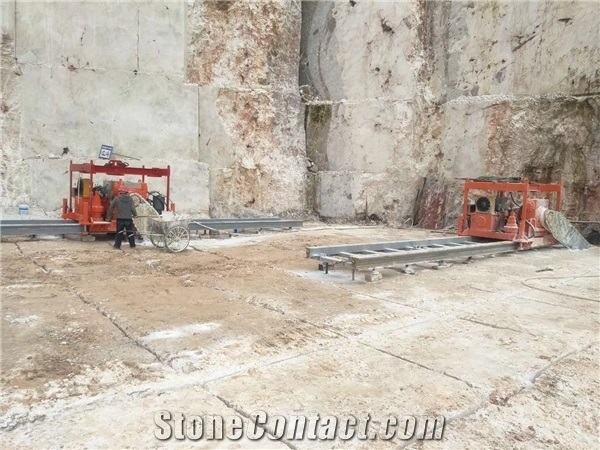

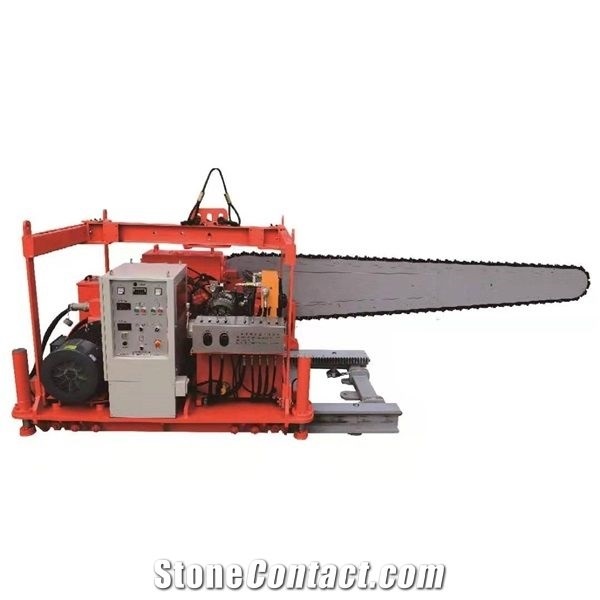

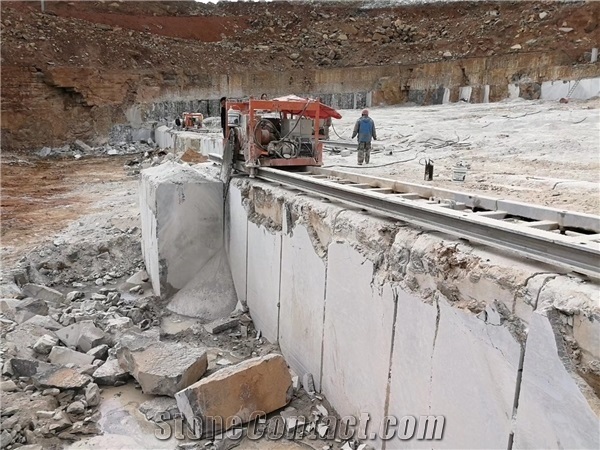

Rail Type Chain Saw Machine for Marble Quarry
FOB Price:
Type:
Stone Quarry MachinesStone Chain Saw MachinesBank Chain Saw Machines
Usage:
Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Machinery Function Features
Dry cuts, no water supply required.
The products are referred to Italy mainstream manufacturers’design, reasonable layout and structure, convenient operation.
The gear boxes are planetary gear boxes, large bearing capacity, supplied by Italian producer.
The rails and trolleys are made of alloy steel, big bearing capacity and deformation resistant.
The hydraulic components are also from Italy.
The main oil pumps and hydraulic motors are made in Germany.
The electrical components are mainly from Schneider Electric.
The chain arms are made of high strength steel from Sweden.
The cutting chains are made of wear-resistant steel from Sweden
The bearings and oil seals are the Japanese brands.
Technical Data
Parameters |
Unit |
GD-CS2500 |
GD-CS3200 |
GD-CS4000 |
GD-CS7500 |
3m Rail Weight(kg) |
kg |
880 |
970 |
970 |
970 |
Working Voltage |
V/hz |
400V/50hz |
400V/50hz |
400V/50hz |
400V/50hz |
Max Vertical Cutting Depth |
mm |
2500 |
3200 |
4000 |
7500 |
Overall machine height |
mm |
1860 |
1860 |
1860 |
2100 |
Chain rotation speed |
m/s |
0~1.2 |
0~1.2 |
0~1.2 |
0~1.2 |
Arm rotation |
° |
360° |
360° |
360° |
360° |
Grease tank capacity |
Kg |
25 |
25 |
50 |
|
Hydraulic oil tank capacity |
L |
120 |
200 |
150 |
|
Overall machine width |
mm |
1800 |
2000 |
2000 |
2100 |
Total installed power |
kw |
45 |
55 |
55 |
65 |
Secondary Motor Power |
kW |
7.5 |
7.5 |
||
Allowed Horizontal Cutting Depth |
mm |
2500 |
3200 |
3200 |
4000 |
Cutting speed |
m/h |
0~4 |
0~4 |
0~4 |
0~4 |
Overall machine length |
mm |
3200 |
3200 |
3200 |
4000 |
Weight |
Kg |
5700 |
7100 |
7600 |
11000 |
Kerf Width |
mm |
40 |
40 |
40 |
40 |
Main Motor Power |
kw |
45 |
45 |
||
Working Temperature |
℃ |
-10℃~60℃ |
-10℃~60℃ |
-10℃~60℃ |
-10℃~60℃ |
Travel speed |
m/h |
30 |
30 |
30 |
30 |
