Marble Sandstone Block Pushing Steel Cushion Hydro Bag for Quarry
FOB Price:$40-
Type:
Stone Quarry MachinesQuarry Hydro-Bags, Rock SplitterQuarry Hydro-Bags
Usage:
Marble, Limestone, Sandstone
After-Sale
Warranty:6 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Dec 22,2000
Main Product:
Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|
Machinery Function Features

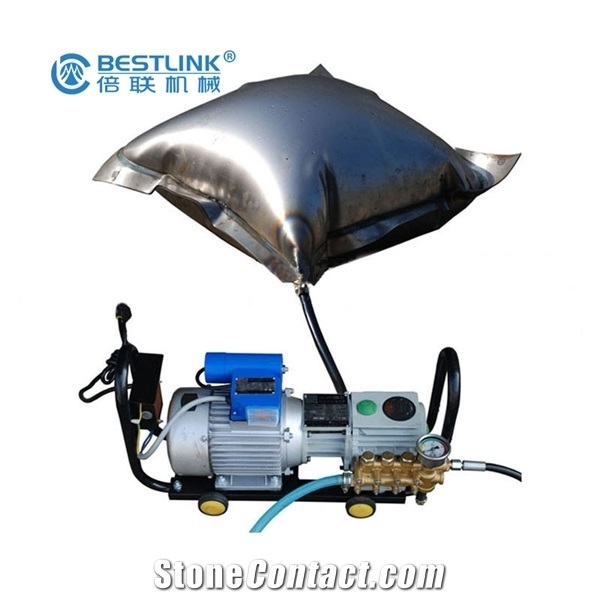

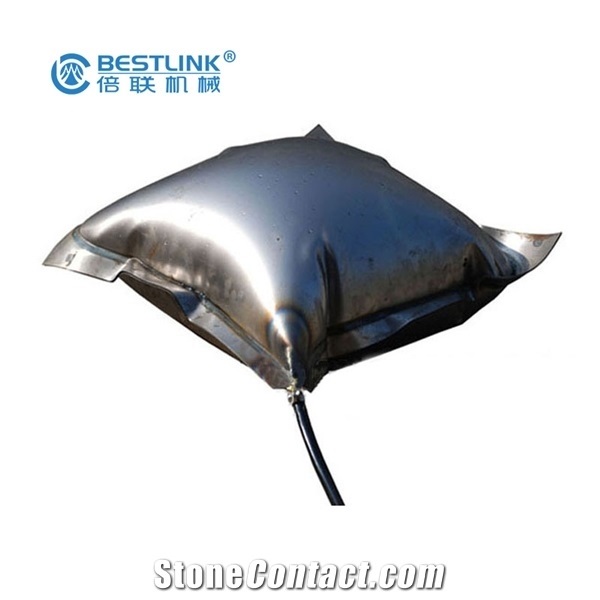

The steel cushion Hydro-Bag is widely used in the marble and stone quarrying industry,specially for stripping blocks from the mountain. The revolutionary aspect of the HYDRO-BAG equipment lies basically in the possibility of stripping blocks up to 1000 tons or more, without the need to prepare slots to house the jacks since the HYDRO-BAG has an original thickness of just 2 mm (0.08") and can be easily slipped into the wire saw cut.

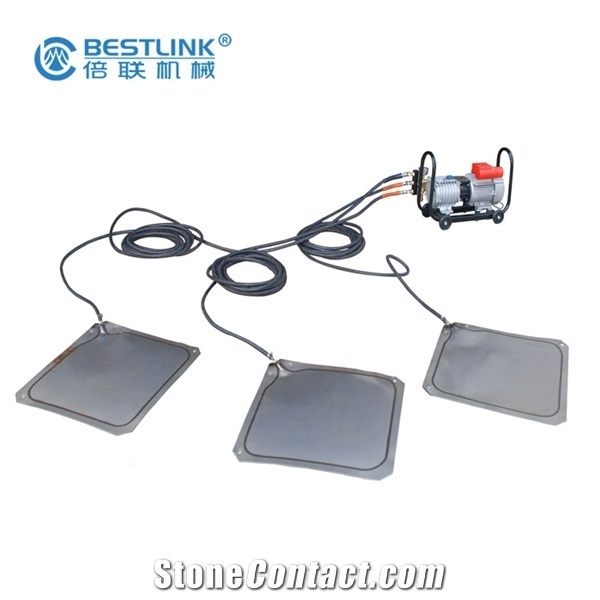

A complete HYDRO-BAG equipment consists of:
1. Electric or pneumatic pump unit to create the pressure for the cushions;
2. Safety valves and distribution valves;
3. Pipes, cocks and inlet filters;
4. Quick couplings;

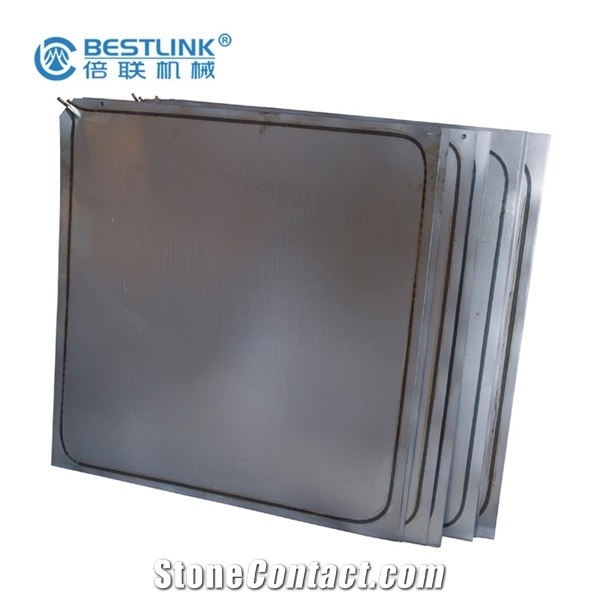

5. A series of HYDRO-BAG cushions.
Technical Data
Parameters |
Unit |
50*50cm |
100*50cm |
100*100cm |
100*200cm |
150*150cm |
Thrust Force(Pushing Capacity) |
T |
75 |
150 |
300 |
600 |
675 |
Motor Weight |
Kg |
25 |
25 |
25 |
25 |
25 |
Bag Size |
cm |
50*50 |
100*50 |
100*100 |
100*200 |
150*150 |
Weight |
Kg |
2.5 |
5 |
10 |
20 |
22.5 |
Motor Max. Pressure |
bar |
5-7 |
5-7 |
5-7 |
5-7 |
5-7 |
air consumption |
cbm/min |
2 |
2 |
2 |
2 |
2 |
Electric |
v |
2 phase, 220V/50Hz |
2 phase, 220V/50Hz |
2 phase, 220V/50Hz |
2 phase, 220V/50Hz |
2 phase, 220V/50Hz |
