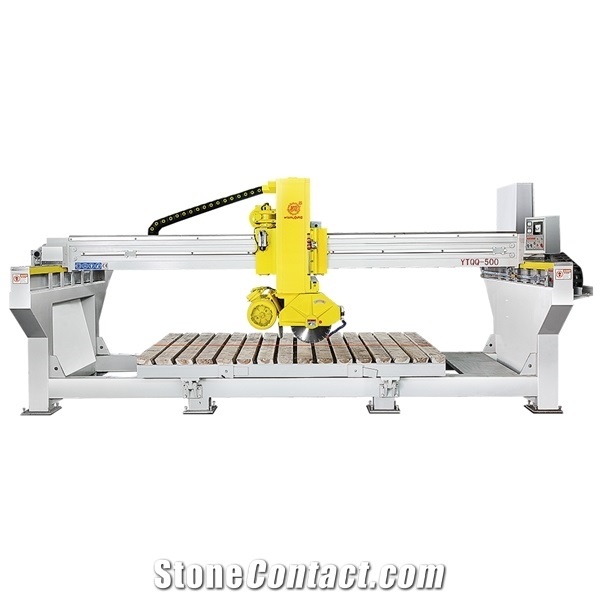

YTQQ-500/600 Mono-block Bridge Cutting Machine

High efficiency for cutting slab & tile, flexible, accurate and reliable. With the mono-block structure, installation is not necessary for this machine, and it brings much convenience to users. Feature * Mono-block structure, side beams are fixed on the steel, solid and stable. * Equipped with infrared device for precise cutting location * Wide crossbeam of bridge structure for large size of slab cutting and it is made of strong cast iron to avoid distortion after long-term use. * Guide rail on the crossbeam is in oil bath and it is protected from water and dust * Dustproof design of the slide track ensures the precise guide movement & long lifespan * Vertical movement of machine head is driven by accurate hydraulic system, and the stroke is adjustable * Cross movement of the machine head on the crossbeam is driven by motor equipped with OMRON rotary encoder by which the precision is guaranteed * The crossbeam is installed on the side beams by lineal guide track that results in less friction force and provides better flexibility and reliability * Worktable can tilt 0-85° * The blade head can rotate 90° by hydraulic system to cut the other side of slab without turning its direction * Equipped with PANASONIC frequency transducer and PLC, programmable and fully automatic * Touch-sensitive operating system, friendly human-machine interface design
