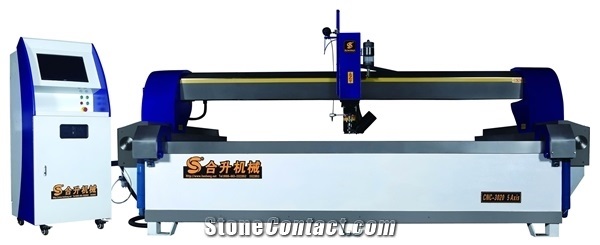

Water Jet Machine HSM-WJ3020
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Aug 03,1993
Main Product:
Stone Cutting Machine, Polishing Machine, Edge Polishing Machine, Multi-Blade Cutting Machine, Machine Tools, Stone Machine|
Machinery Function Features
1. Controlled by computer; Can edit needed figures in next working procedure;
2. The machine tool uses seamless precision ball screw and guideway. Combining with high precision servo motor, it guarantees the accuracy and machine.
3. Materials can be cut except diamond and alloy steel.
Technical Parameters:
Maximum Processing Range: 3000mmX2000mm
Thickness of Cutting: 0~120mm
Travel of X-Axis: 3000mm
Travel of Y-Axis: 2000mm
Travel of Z-Axis: 180mm
Maximum Speed of Cutting: 3000mm/min
Working Pressure: 350-380Mpa
Diameter of Gem Nozzle: Φ0.33mm

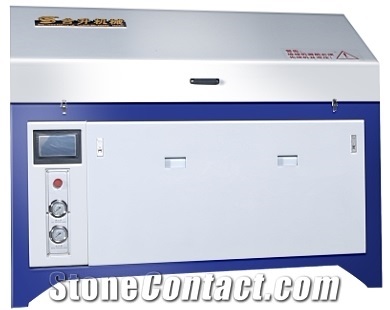

Power of Oil Pump Motor: 30kw
Gross Power: 30.75kw

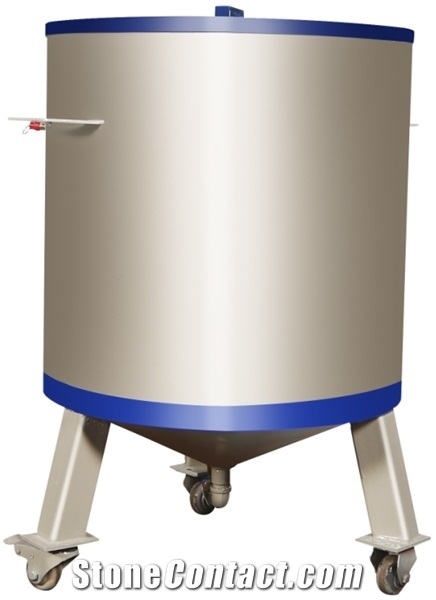

Sands Consumption: 10~25kgs/h
Gross weight: 3800kgs
External Dimension of Machine: L4200×W2350×H1800mm
Technical Data
Parameters |
Unit |
HSM-WJ3020 |
X-axis travel |
mm |
3000 |
Maximum Speed of Cutting |
mm/min |
3000 |
Z-axes travel |
mm |
180 |
Power of Oil Pump Motor |
kw |
30 |
Machine length (L) |
mm |
4200 |
Gross Power |
kw |
30.75 |
Machine height (H) |
mm |
1800 |
Waterjet max pressure |
Mpa |
350-380 |
Sands Consumption |
kgs/h |
10~25 |
Dimensions of the work table |
mm |
3000X2000 |
Machine width (W) |
mm |
2350 |
Y-axes travel |
mm |
2000 |
Diameter of Gem Nozzle |
mm |
Φ0.33 |
Max. Thickness of Cutting |
mm |
0~120 |
Approximate weight(including table) |
Kg |
3800 |
