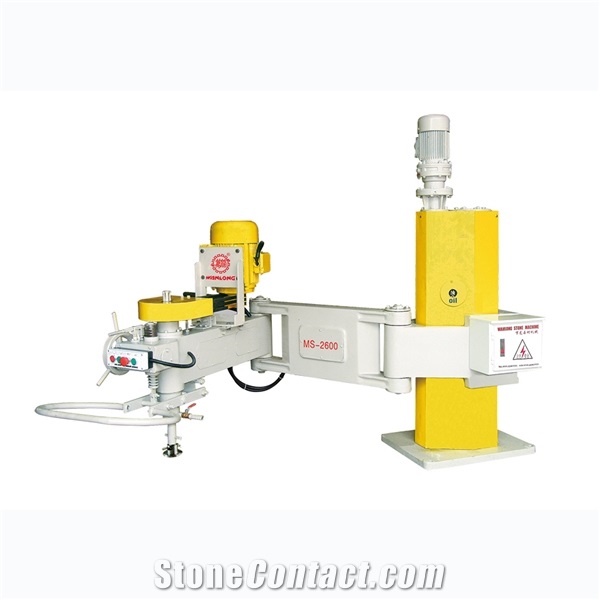

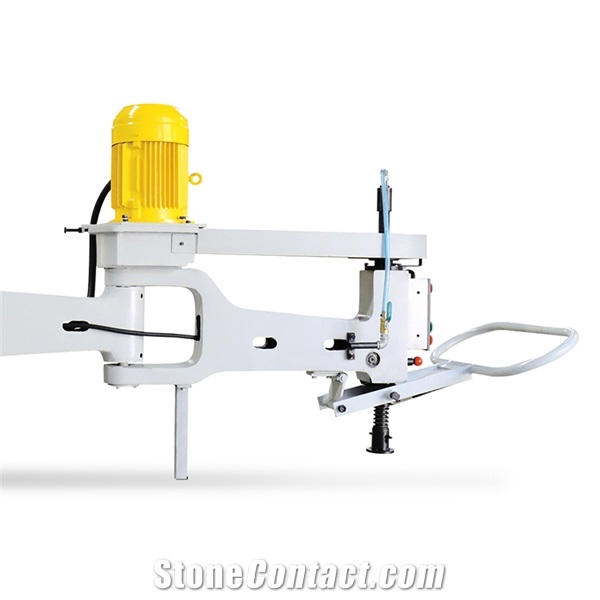

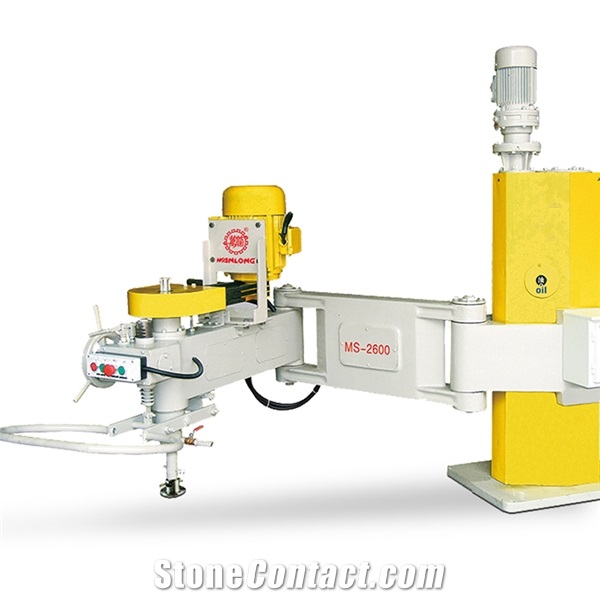

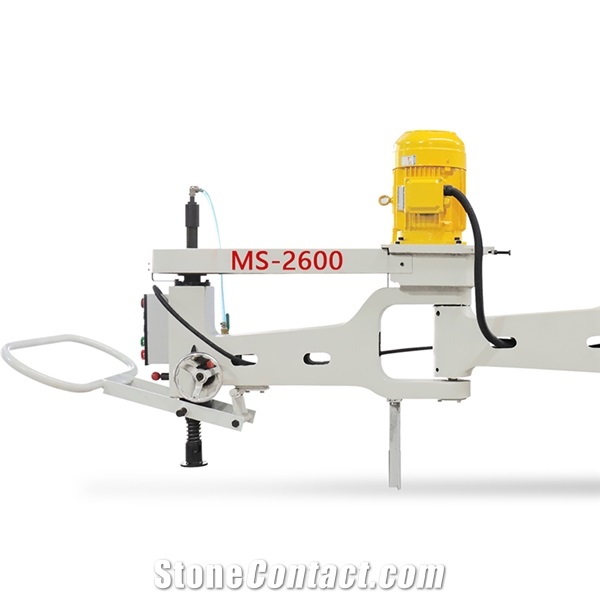

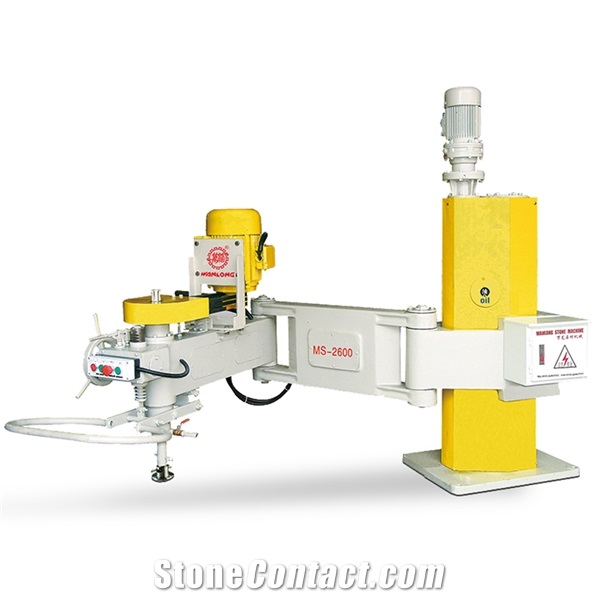

Wanlong Manual Stone Surface Manual Arm Polishing Machine
FOB Price:$2500-2600
Type:
Stone Factory MachinesStone Surface Processing Machines Arm Polishing Machine
Usage:
Granite, Marble, Limestone, Slate, Sandstone
After-Sale
Lead Time:
30 working days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting
Supplier
Eatablished :Jan 08,1993
ISO9001-2000,SGS,TUV
Main Product:
Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|
Machinery Function Features
1. Indigenous double speed main motor, 4.5KW-4/5.5KW-2, Lifting motor power 0.75KW
2. Eletric screw rod for front & back arm lifting
3. Pneumatic lifting head
4. Maximum polishing size 2600x900mm
Technical Data
Parameters |
Unit |
MS-2600 |
MS-3000 |
Lifting stroke |
mm |
0-800 |
0-800 |
Machine overall height |
mm |
1700 |
1700 |
Machine overall width |
mm |
650 |
650 |
Max. processable length |
mm |
2600 |
3000 |
Main motor power |
kw |
4.5/5.5 |
4.5/5.5 |
Approx. Weight |
Kg |
850 |
900 |
Gyro radius |
mm |
2600 |
3000 |
Diameter of plate |
mm |
220 |
220 |
Machine overall length |
mm |
3500 |
3800 |
Max. processable width |
mm |
900 |
1200 |
Software
Work Example
Processed Stone Photos
Components
-

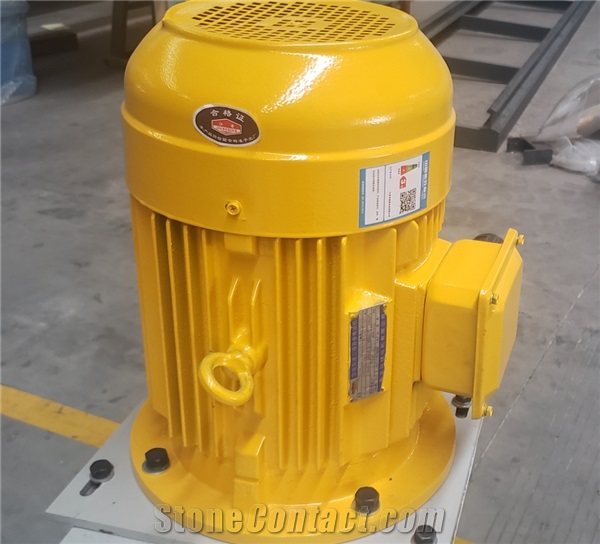

motor
Consumables
-

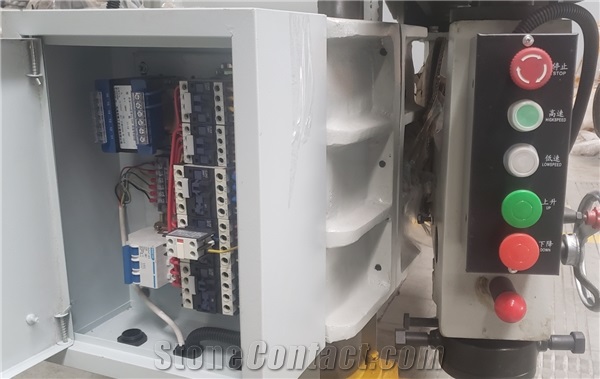

control box
Video
Install Video

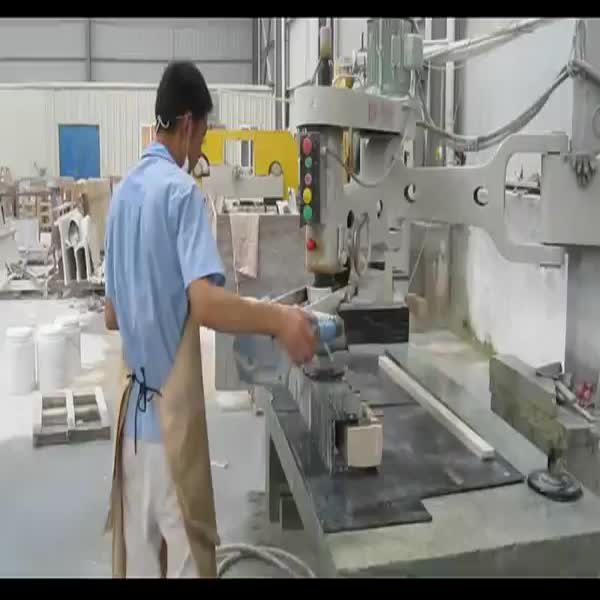

Operation Video
