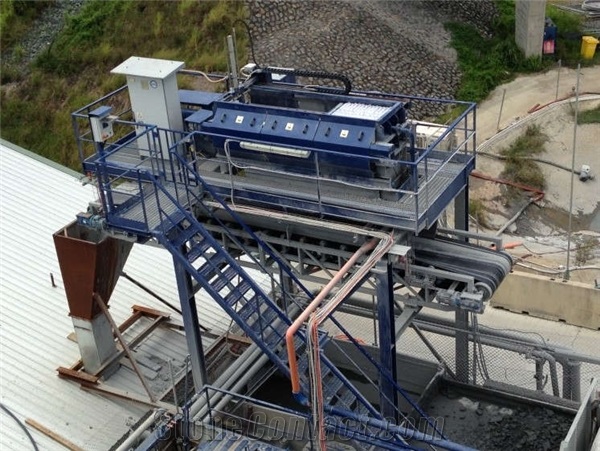

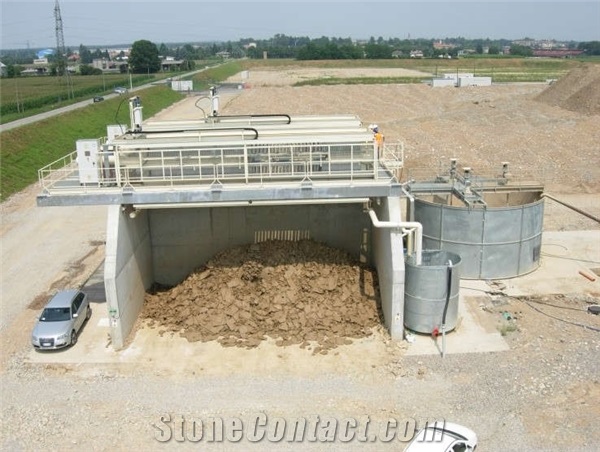

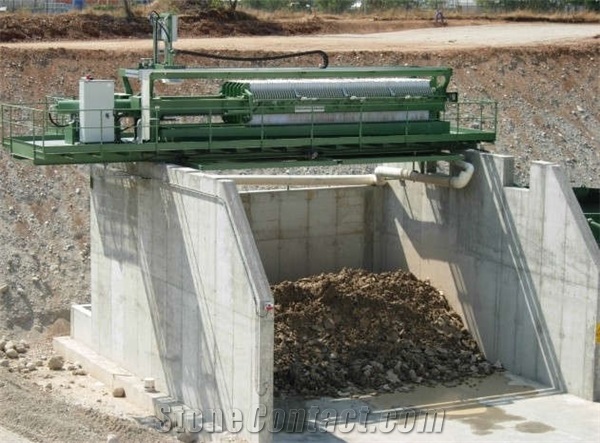

Single piston side beams filter press

The side beams filter press has been designed and manufactured by Fraccaroli & Balzan S.p.A. to fulfill the requirements of Companies which need simple machines with a very high productivity. The main features of these filterpresses are listed below. Filterpresses models MODEL mm x mm N° plates FB/300-6 300 x 300 6 FB/400-5 400 x 400 5 FB/400-6 400 x 400 6 FB/630-4 630 x 630 4 FB/630-5 630 x 630 5 FB/630-8 630 x 630 8 FB/630-10 630 x 630 10 FB/630-15 630 x 630 15 FB/800-8 800 x 800 8 FB/800-10 800 x 800 10 FB/800-15 800 x 800 15 FB/800-25 800 x 800 25 FB/1000-15 1000 x 1000 15 FB/1000-20 1000 x 1000 20 FB/1000-25 1000 x 1000 25 FB/1000-40 1000 x 1000 40 FB/1000-60 1000 x 1000 60 FB/1000-80 1000 x 1000 80 FB/1200-20 1200 x 1200 20 FB/1200-25 1200 x 1200 25 FB/1200-40 1200 x 1200 40 FB/1200-60 1200 x 1200 60 FB/1200-80 1200 x 1200 80 FB/1500-20 1500 X 1500 20 FB/1500-25 1500 X 1500 25 FB/1500-40 1500 X 1500 40 FB/1500-60 1500 X 1500 60 FB/1500-80 1500 X 1500 80 FB/1500-90 1500 X 1500 90 FB/1500-100 1500 X 1500 100 FB/1500-120 1500 X 1500 120 FB/1500-150 1500 X 1500 150 FB/2000-80 2000 X 2000 80 FB/2000-100 2000 X 2000 100 FB/2000-120 2000 X 2000 120 FB/2000-150 2000 X 2000 150 FB/2000-180 2000 X 2000 180 FB/2000-190 2000 X 2000 190
