KERF-1000 Slot Cutting and Drilling Machine for Wall Cladding
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Dec 31,1984
Main Product:
Disc Cutter Bridge Nsr 350, Cnc Work Centers, Polishing And Profiling Machines, Used Stone Machine Second Hand Machines, Bridge Saws, Cranes|
Machinery Function Features
Machine that allows to obtain holes and cuts with great flexibility. Ref. 8502

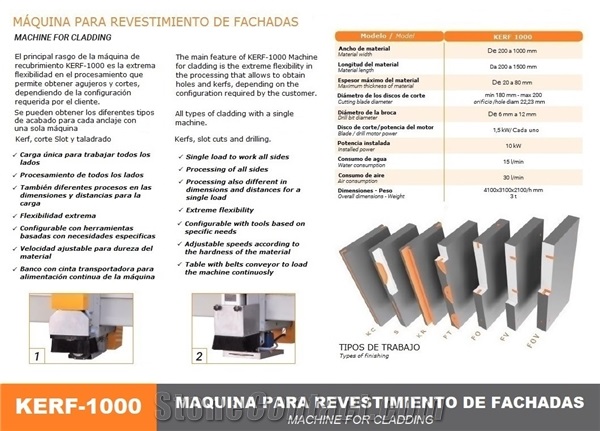

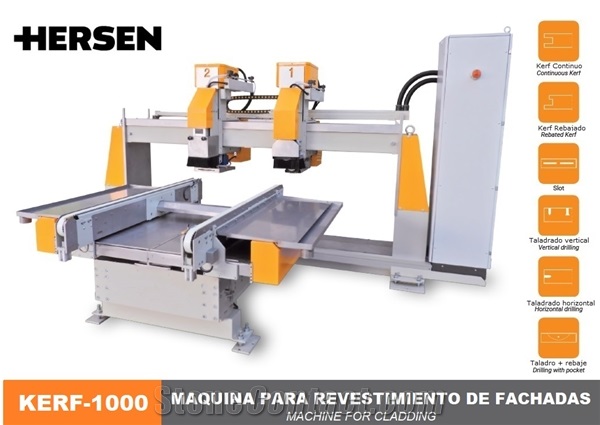

Machine for cladding KERF-1000
Ref. 8502 Technical characteristics:
The main feature of the KERF-1000 coating machine is the extreme flexibility in processing that allows to obtain holes and cuts, depending on the configuration required by the customer.

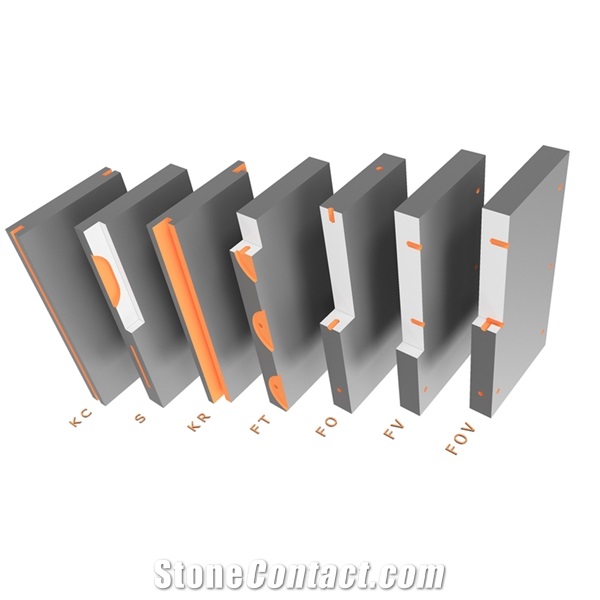

The different types of finish for each anchor can be obtained with a single machine:
Kerf, Slot cutting and drilling
Technical Data
Parameters |
Unit |
KERF-1000 |
Each Spindle Motor Power |
kw |
1.5 |
Water consumption |
L/min |
15 |
Machine overall length |
mm |
4100 |
Max. working thickness |
mm |
80 |
Min. working thickness |
mm |
20 |
Total motor power |
kw |
10 |
Max. working width |
mm |
200 to 1000 |
Air consumption |
VL/min |
30 |
Drilling Diameter |
mm |
6 to 12 |
Machine overall width |
mm |
3100 |
Max. working length |
mm |
200 to 1500 |
Machine overall height |
mm |
2100 |
Approx. Weight |
Kg |
3000 |
