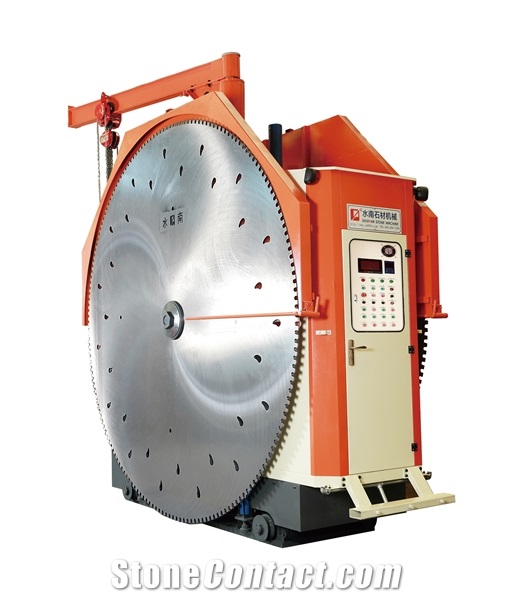

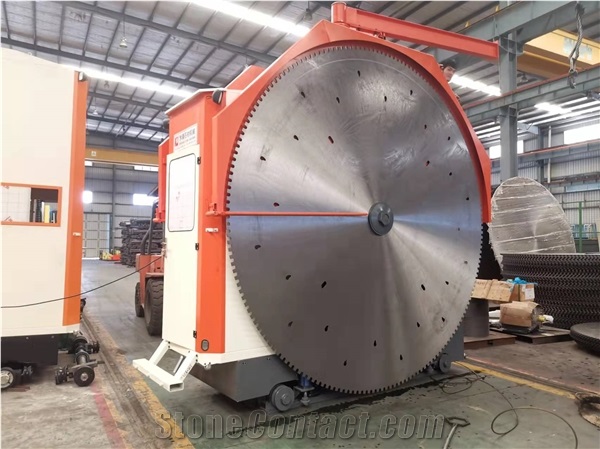

YZK1360/1900 Double Blade Granite And Marble Stone Quarry Machine
FOB Price:$19500-26500
Type:
Stone Quarry MachinesDouble Blade Mining Machine
Usage:
Granite, Marble, Limestone, Sandstone, Travertine
After-Sale
Lead Time:
7 days after getting details
Warranty:3 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance
You may also like
Machinery Function Features
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.
4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
Technical Data
Parameters |
Unit |
YZK1360/1900-3600 |
Dimension LxWxH |
mm |
2800*1650*3200 |
Power of Pump Motor |
kw |
4 |
Gross Weight |
Kg |
7500 |
Power of Tool Stroke |
kw |
55 |
Power of Main Motor |
kw |
55 |
Center Distance of Rail |
mm |
1140 |
Diameter of Blade |
mm |
3600 |
Max. Cutting Depth |
mm |
1500 |
Motor of lengthwise rail swich |
kw |
2.2 |
Water Consumption |
m3/h |
5 |
Cutting Width |
mm |
1360-1900 |
Total Power |
kw |
120 |

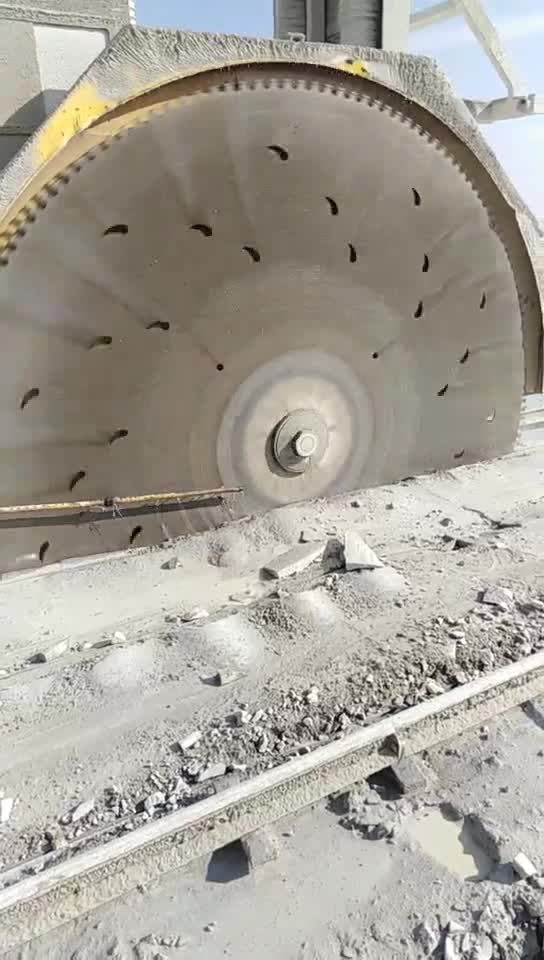

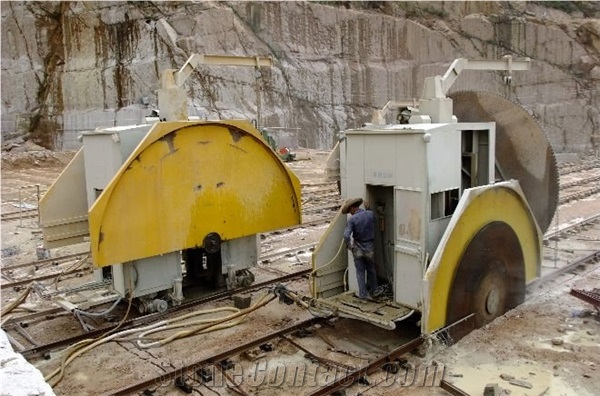

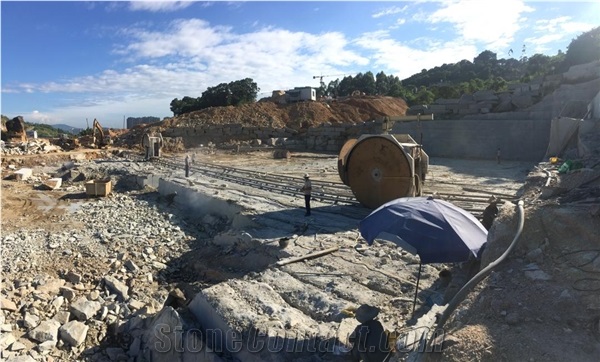

Work Example
Video
Install Video
Operation Video
