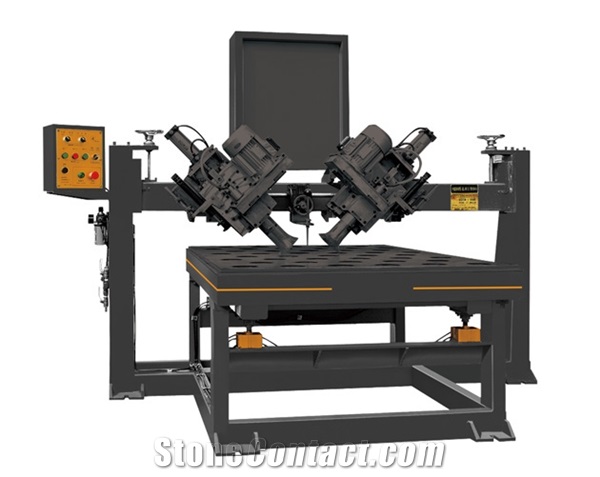

SZ/PC-10 Automatic 45 Tilting Drilling Machine
FOB Price:$8000-9900
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
35 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Sep 10,2018
Main Product:
Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|
Machinery Function Features
SZ/PC-10 is a special drill machine with a double draw hook hole for dry slate hanging, which is a creative machine in domestic China. It uses the main shaft at high speed, automatic feed knife with air pressure and precise orientation. The special parts use straight-line bearings completely and an imported universal roll wheel, which changes the gliding movement to roll movement with low cost and labors intensity. It is featured as stable function, good precision of drilling hole and high efficiency, which is equal to foreign advanced level. It is an ideal equipment for slate hanging manufacturer.
Technical Data
Parameters |
Unit |
SZ/PC-10 |
Total motor power |
kw |
2.2 |
Machine overall height |
mm |
1950 |
Drilling Angle |
° |
double 45° |
Drilling Diameter |
mm |
Φ3~Φ12 |
Worktable size |
mm |
1640×1200 |
Approx. Weight |
Kg |
850 |
Machine overall length |
mm |
2350 |
Machine overall width |
mm |
1650 |
Drilling Depth |
mm |
50 |
