Hand Held Pneumatic Button Bit Grinder Grinding Machine
FOB Price:$520-6000
Type:
Stone Factory MachinesStone Handling, Loading MachinesStone Tools Machinery
Usage:
Granite, Marble, Artificial Stone
After-Sale
Lead Time:
15 days
Warranty:12 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Dec 22,2000
Main Product:
Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|
Machinery Function Features

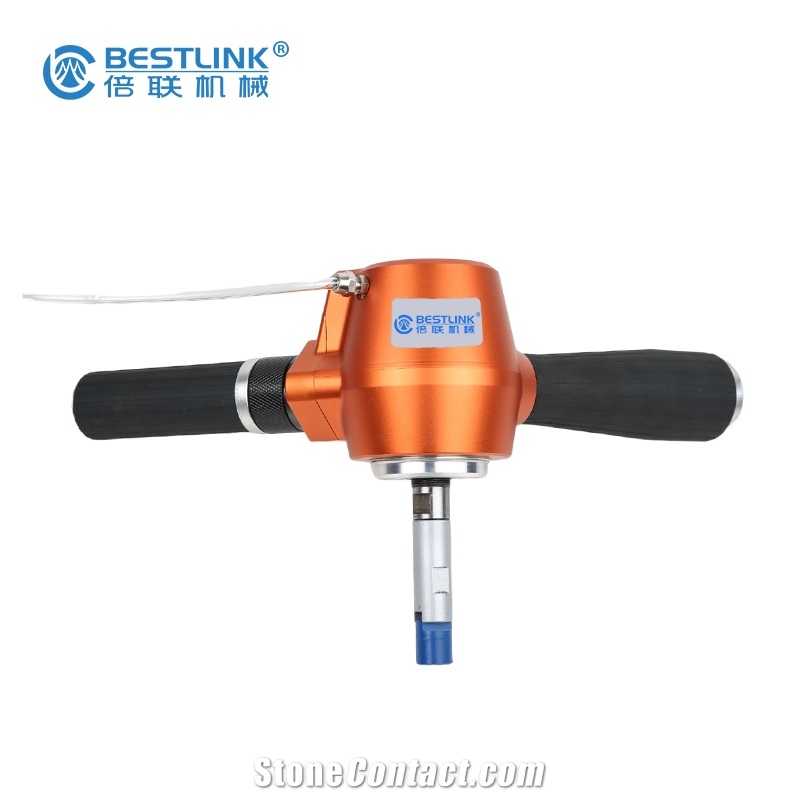

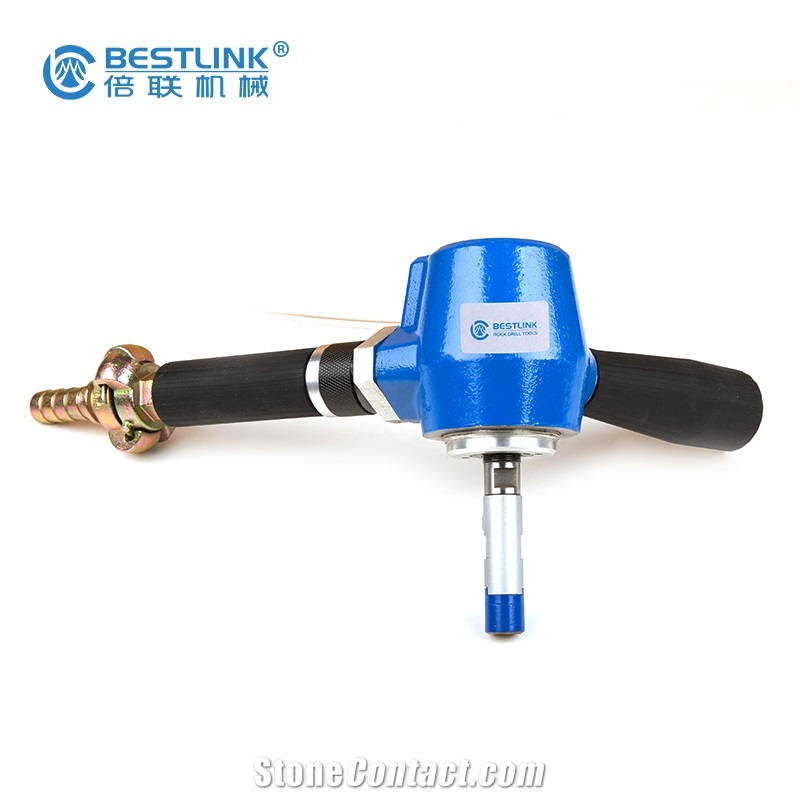

2021 BESTLINK Factory Hand Held Pneumatic Button Bit Grinder/ Grinding Machine/Drill Bit Grinder

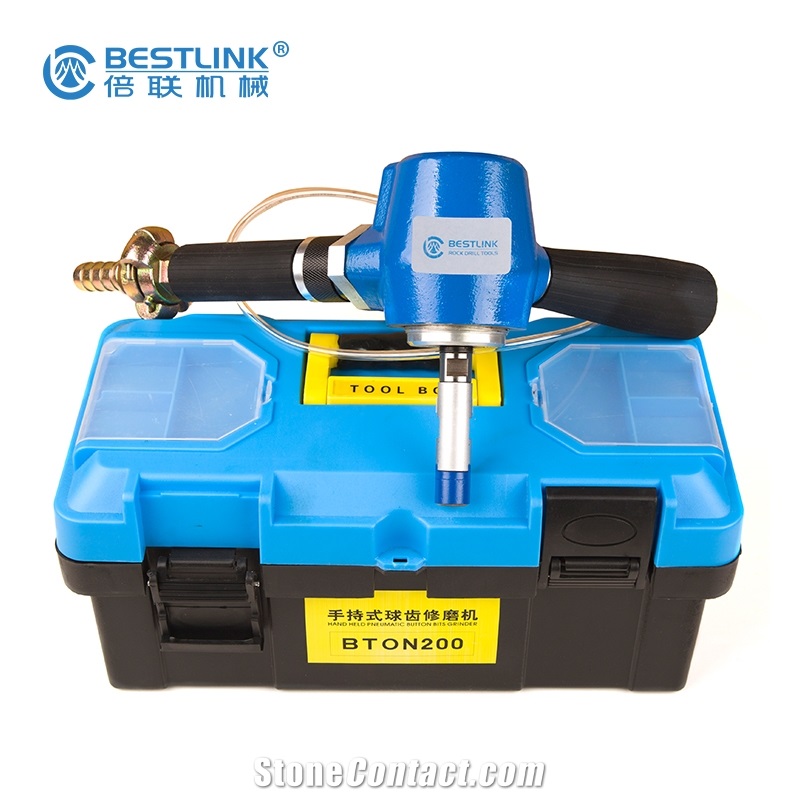

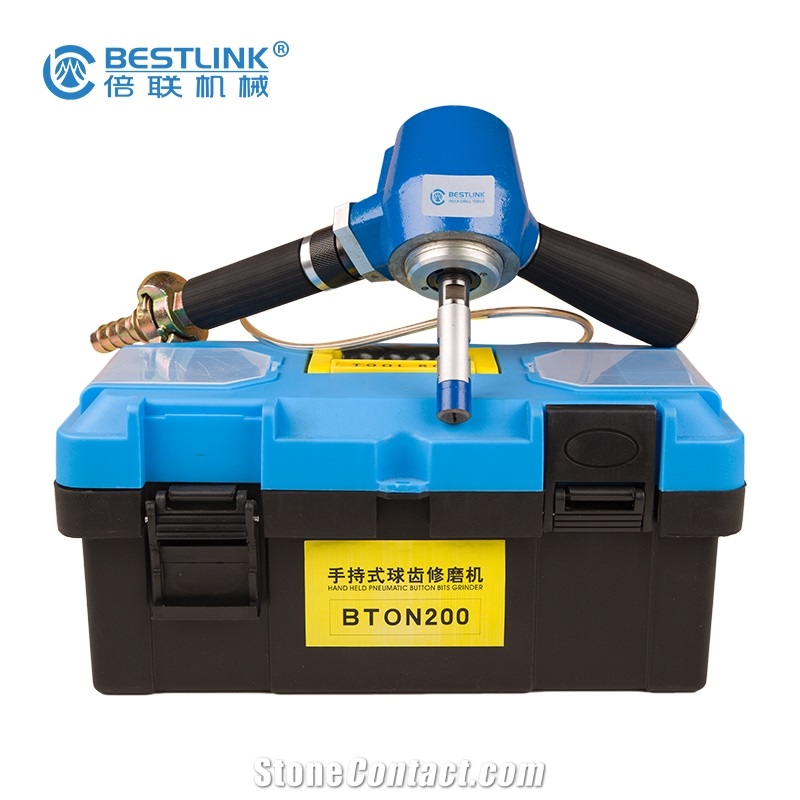

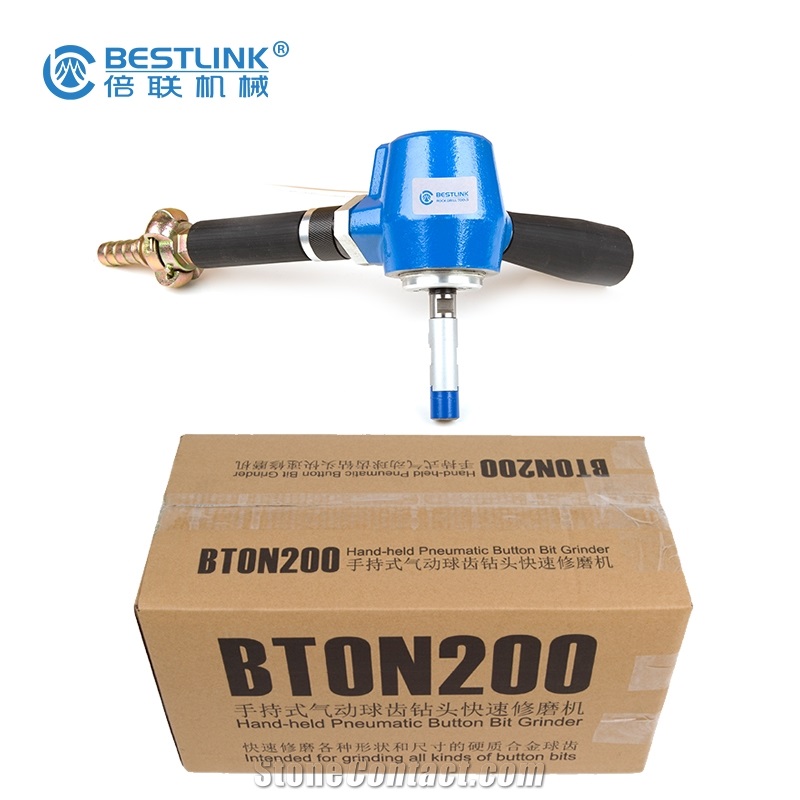

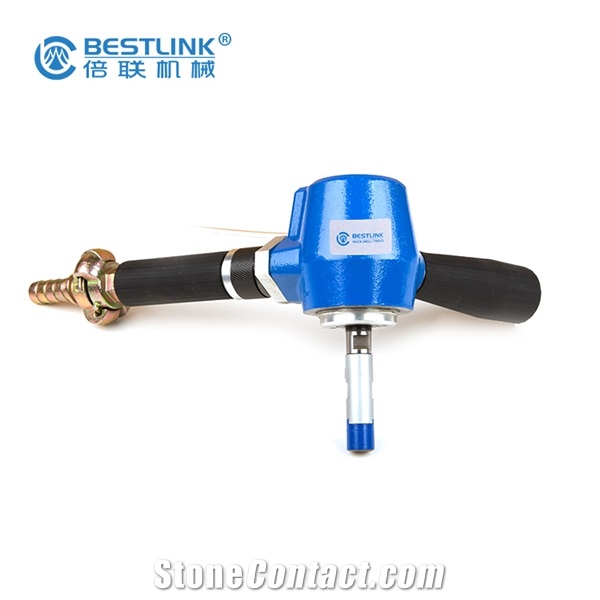

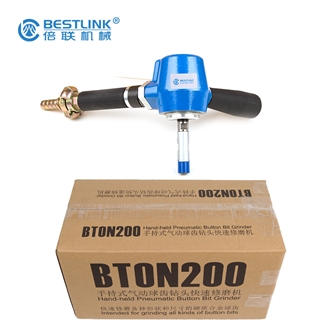

Drill Bit Grinder BTON200
Air pressure, max 5-7 bar (100psi)
Air consumption 2m3/min (50ft3/min)
Rate power 1.5kw
Idling speed 20,000 rpm
Water flushing
presuure, max 4 bar (60psi)
Hose diameter, air 19 mm(1/2″)
Hose diameter, water 4mm
Weight, exclude hoses 3.2 kg
Sound level 80 dB
Grinding button size Φ6-25 mm
Pneumatic robot arm button bits grinder AGM18
Rotation speed 20000 rpm
Motor power 1.5 KW
Working air pressure 5-7 bar (100 psi)
Air consumption 2.2 m3 / min (80ft3/min)
Max. water pressure 4 bar (60 psi)
Air hose diameter 19 mm
Water hose diameter 6 mm
Weight excl. packaging 330.0 Kg
Weight incl. packaging 350.0 Kg
Transport dimensions 1600*700*1500mm
Sound level 92 dB(A)

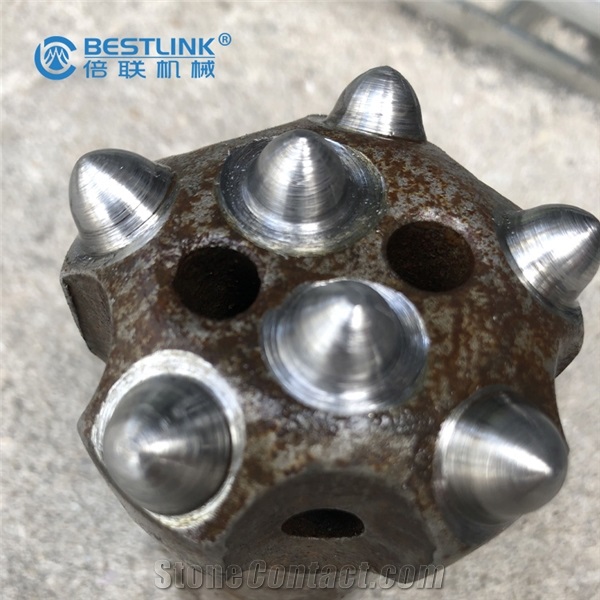

Processed Stone Photos
Components

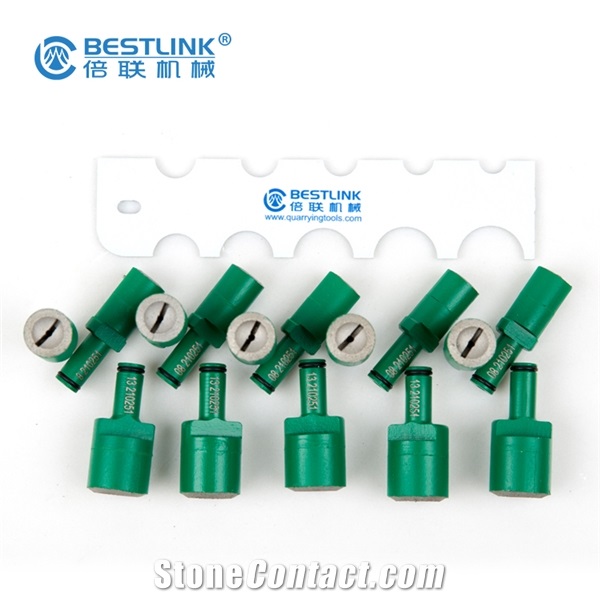

Consumables
Video

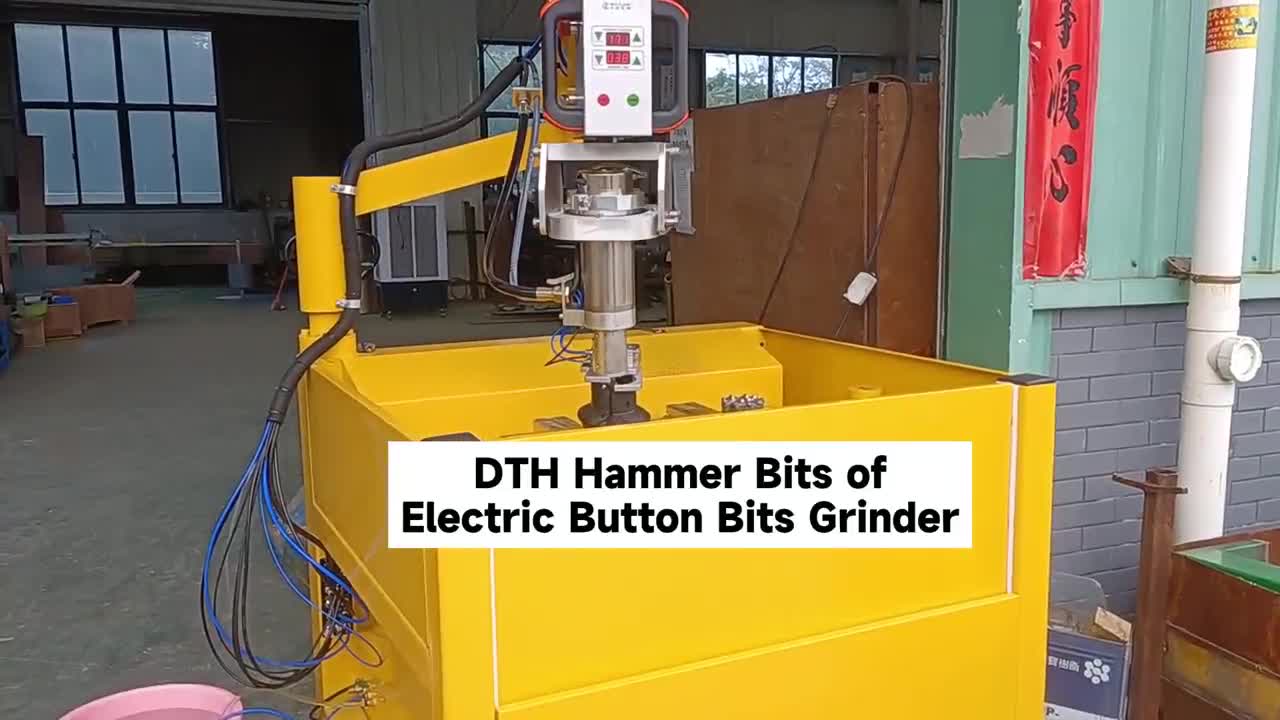

Operation Video
