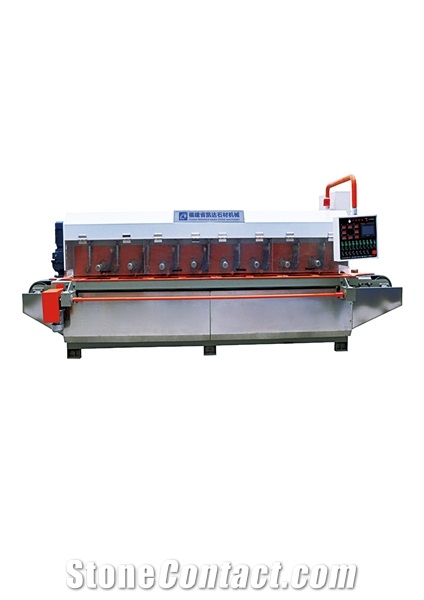

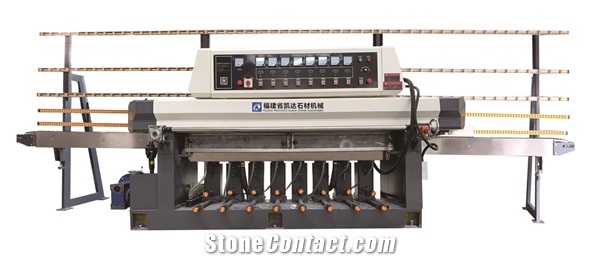

XTJ-200 Full Automatic Line Edge Profiling, Processing Machine- Edge Grinding & Polishing Machine

FOB Price:$11000-15000

Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Fujian Province Kaida Stone Machinery Co.,Ltd.

Fujian Province Kaida Stone Machinery Co.,Ltd.
KAIDA

ChinaChina idicon

Eatablished :Jan 21,2014

ISO 9001

Main Product:

Bridge Cutting Machine, Medium Block Cutting Machine, Stone Profiling Machine, Stone Turnover Machine, Block Cutting Machine, Manual Edge Cutting Machine|

Contact supplier

Start Order

You may also like
SIDE TOP BOTTOM EDGE POLISHING MACHINE（TM2500P）
SIDE TOP BOTTOM EDGE POLISHING MACHINE（TM2500P）
YMB3000 Special Profiling And Grinding Combination Machine
YMB3000 Special Profiling And Grinding Combination Machine
CNC Automatic Stone Profiling Machine For Sale
CNC Automatic Stone Profiling Machine For Sale
Edge Line Stone Profiling, Polishing Machine
Edge Line Stone Profiling, Polishing Machine
Automatic Stone Edging Edge Profiling Polishing And Chamfering Machine
Automatic Stone Edging Edge Profiling Polishing And Chamfering Machine
  • Overview
  • Components
  • Video
  • Customer Case
Machinery Function Features
XTJ-200 Automatic Combination Grinding & Polishing Machine，Kaida stone machinery product, is a professional stone slab side processing machinery, mainly used for grinding, modeling and polishing the flat edges of marble, quartz, granite or artificial stone slabs, forming bright & smooth flat edge, oblique corner and various curve edges.
Technical Data
Parameters
Unit
XTJ-200
Standard diameter of polishing wheels
mm
200
Min. processing thickness
mm
15
Machine overall height
mm
1900
Max. processing thickness
mm
80
Min. processing width
mm
30
Machine overall length
mm
4200
Belt advancement speed
m/min
0.4-1.5
Max. processing width
mm
300
Machine overall width
mm
1600
Air consumption
L/min
200
Approx. Weight
Kg
8000
Max. diameter of shaping wheel
mm
200
Number of dressing/polishing spindles
nr
8
Total power
kw
80
No. calibrating/shaping/cutting spindles
nr
4

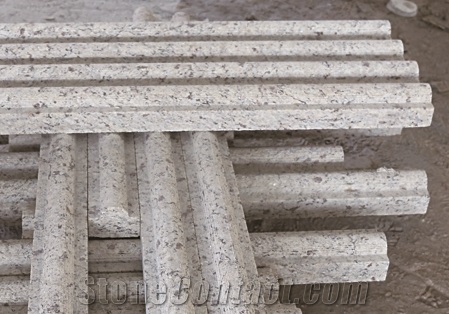

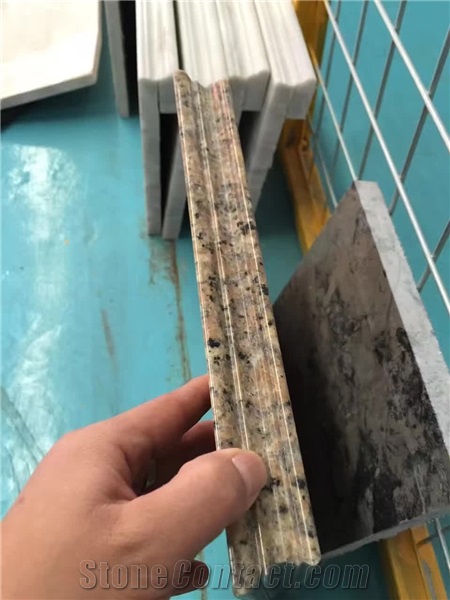

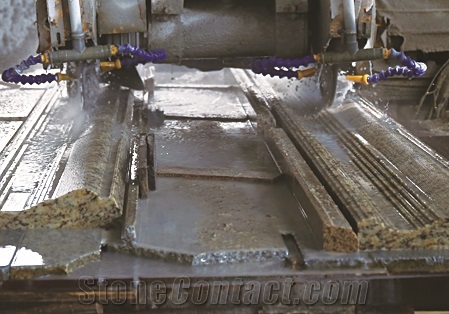

Processed Stone Photos
  • Granite

    Granite

Components

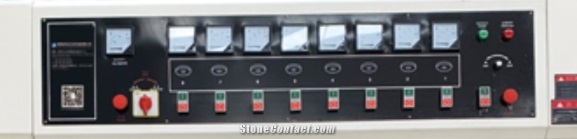

  • Electric panel

    Electric panel

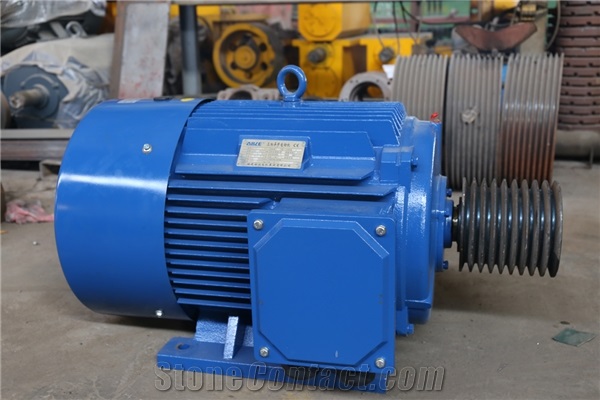

  • Main motor

    Main motor

Consumables

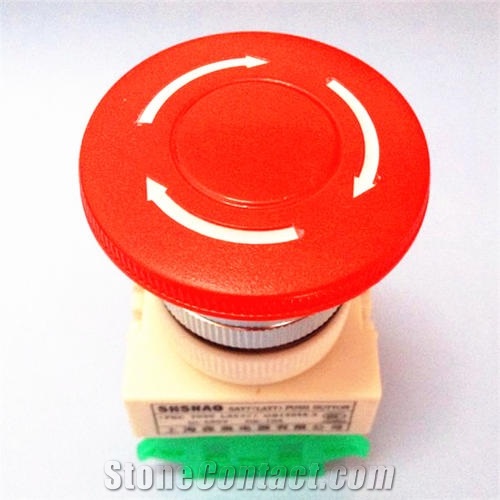

  • Button

    Button

Customer Case

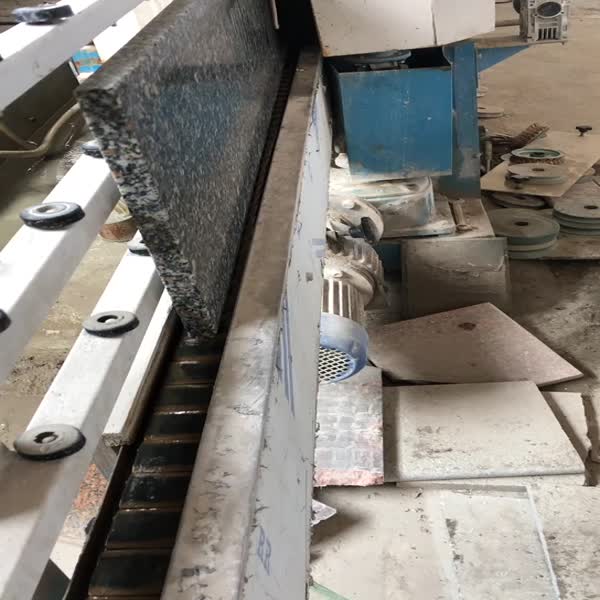

Hank Turkey Turkey 2018
