QQJ-2200 / QQJ-2500/ QQJ-3000 Circular saw block cutting machine multi cutter
FOB Price:$24000-29500
Type:
Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage:
Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 days
Warranty:6 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
Eatablished :Jul 01,1994
Main Product:
Double-Blade Mining Mchine, Diamond Wire Saw Machine, Automatic Polishing Machine, Mulit-Blade Block Cutting Machine, Shuinan, JULUN|
You may also like
Machinery Function Features

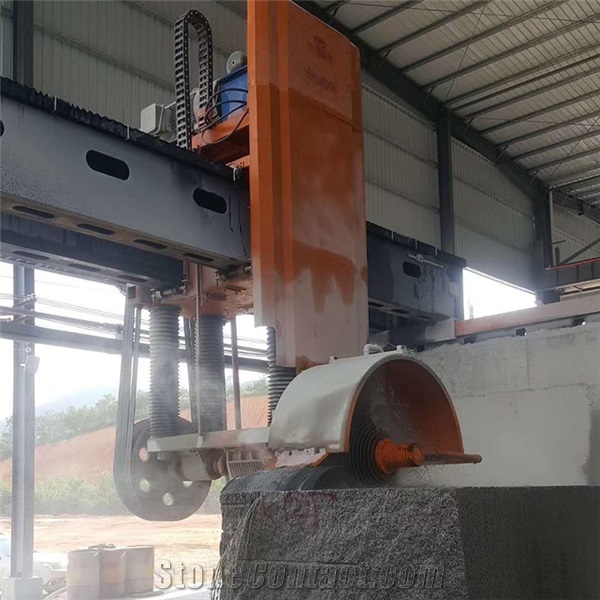

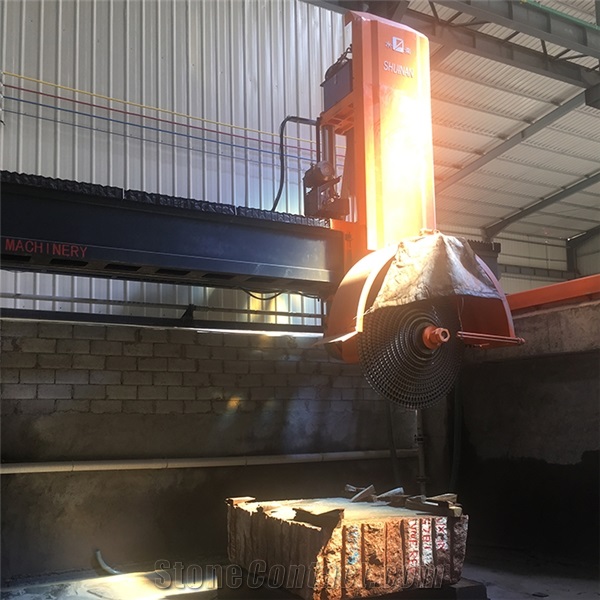

The gantry-type combination saw can not only use 1-13 blades to cut standard plates, but also can be used for industrial arts and the multi-directional cutting of doors, windows and block stones.It has the features of flexible operation, strong adaptability,high efficiency etc.
it saves all cost of trolley and is particularly suitable for processing large high-value blocks to make forming plates.e praise. With the hydraulic system researched and developed on our own and the advanced and mature computer automation and digital operating system,the machine has won more acclaim for the company.
Technical Data
Parameters |
Unit |
QQJ-2200 |
QQJ-2500 |
QQJ-3000 |
Machine length(front) |
mm |
7700 |
8200 |
8700 |
Approximate Weight |
Kg |
12000 |
14000 |
15000 |
Cut/return stroke ( X axis) |
mm |
3800 |
3500 |
3000 |

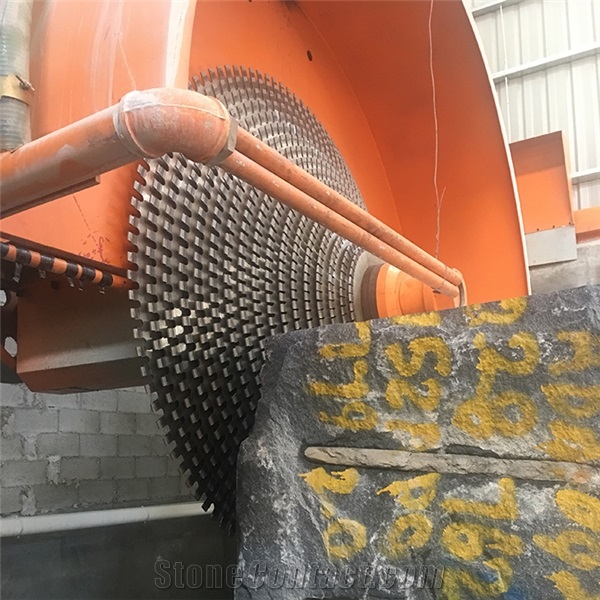

Vertical disc diameter |
mm |
2200 |
2500 |
3000 |
Machine width |
mm |
4400 |
4400 |
4400 |
Vertical disc motor power |
kw |
45/55 |
45/55 |
45/55 |
Maximum block length |
mm |
3800 |
3500 |
3000 |
Maximum block width |
mm |
2100 |
2100 |
2100 |
Bridge transversal stroke (Y axis) |
mm |
3700 |
3700 |
3700 |
Disch vertical stroke ( Z axis) |
mm |
1350 |
1350 |
1350 |
Installed power |
kw |
56/66 |
56/66 |
56/66 |
Machine height |
mm |
3700 |
3700 |
3700 |
Max. cutting depth |
mm |
900 |
1100 |
1300 |
Processed Stone Photos
-

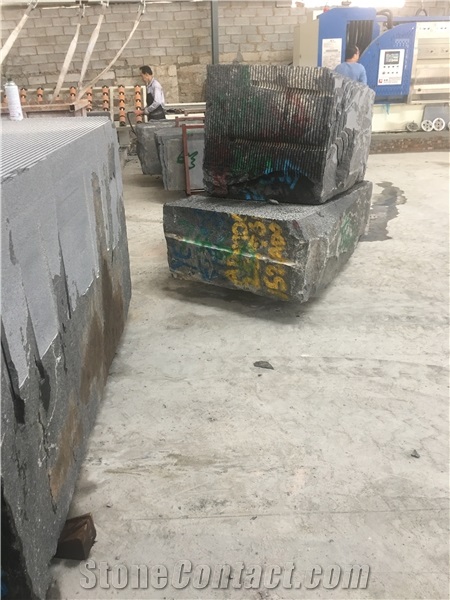

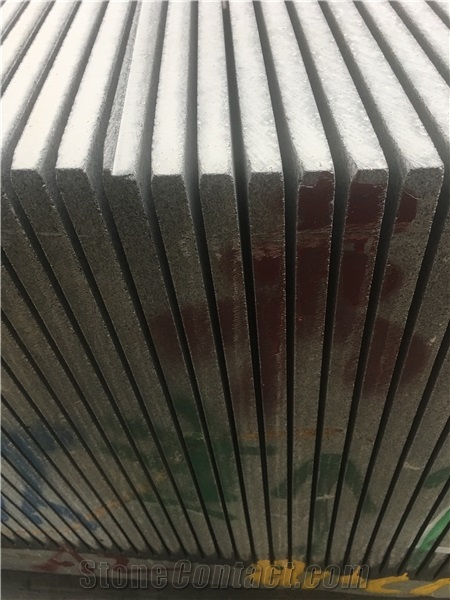

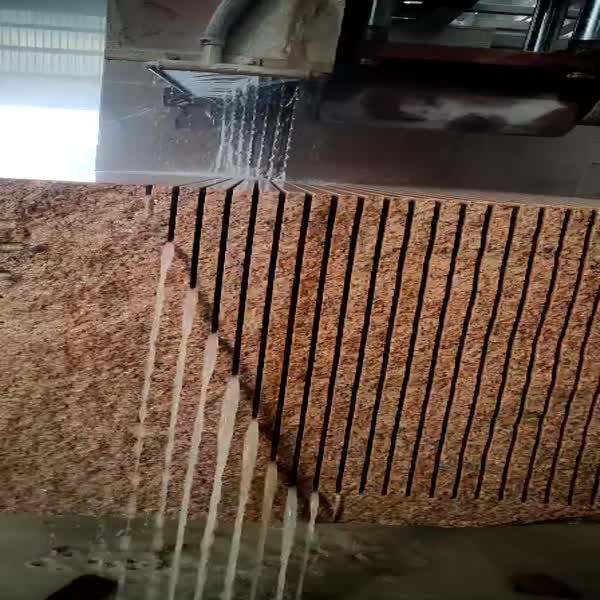

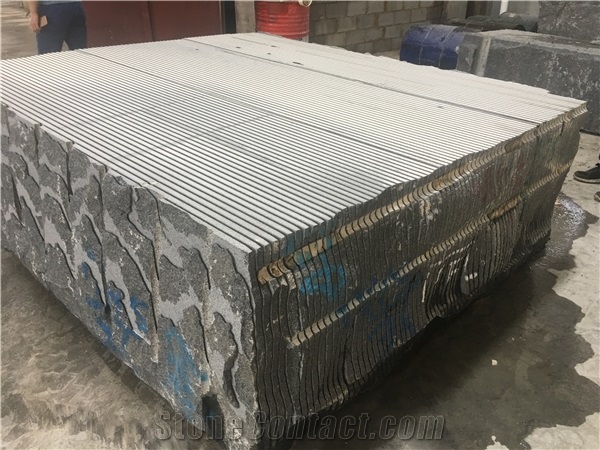

After cutting
-
After cutting
-
After cutting
Components
-

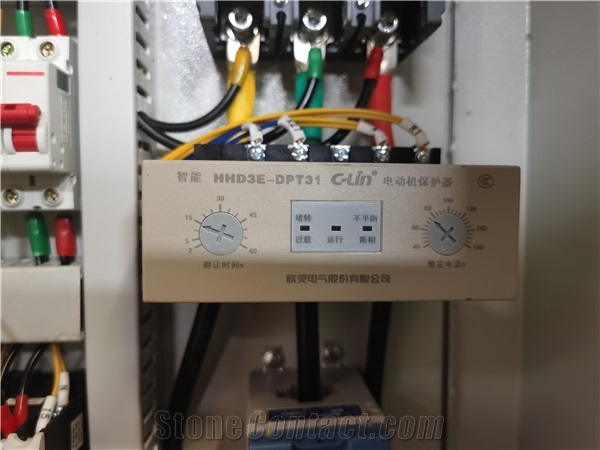

Motor protector
-

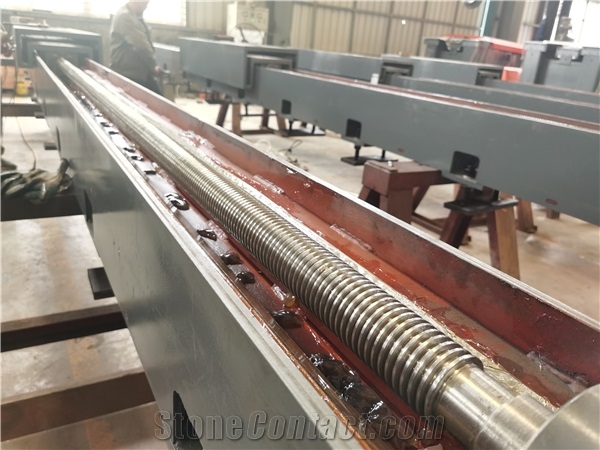

Edge beam screw
-

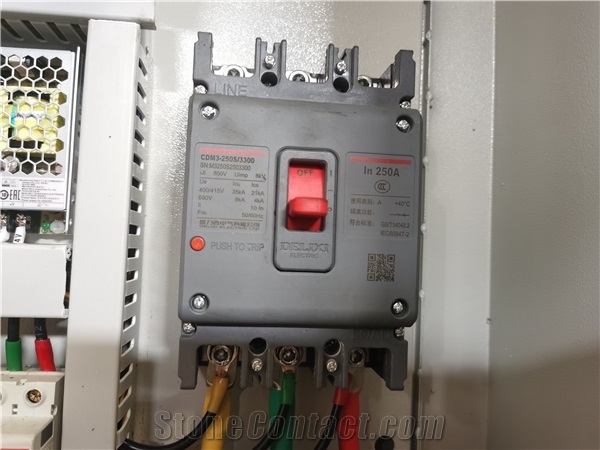

switch
-

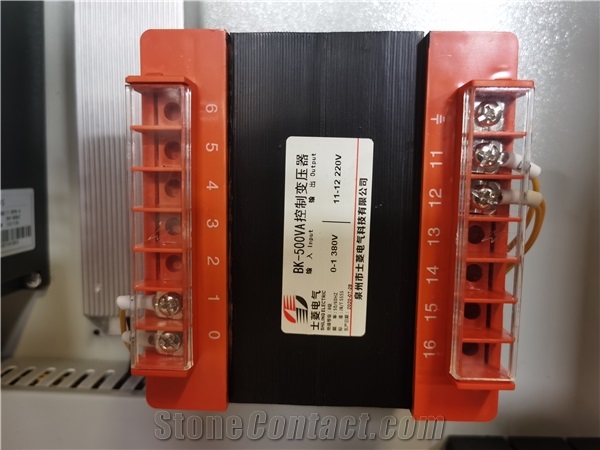

transformer
-

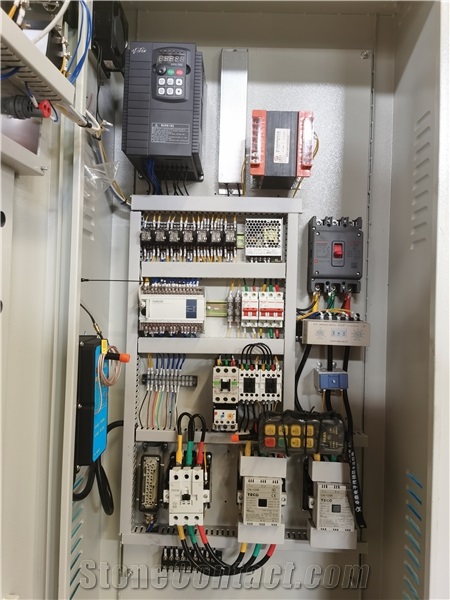

control box
-

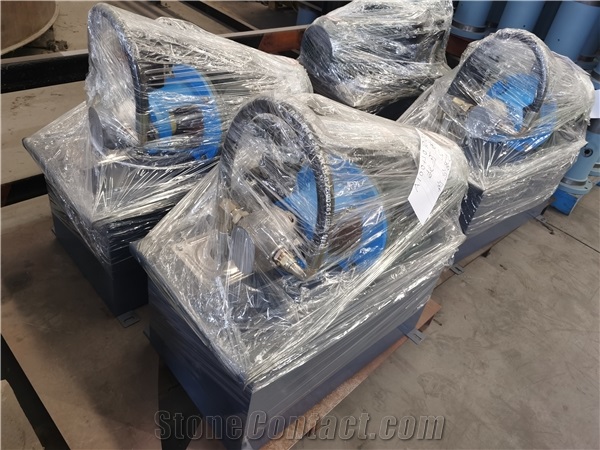

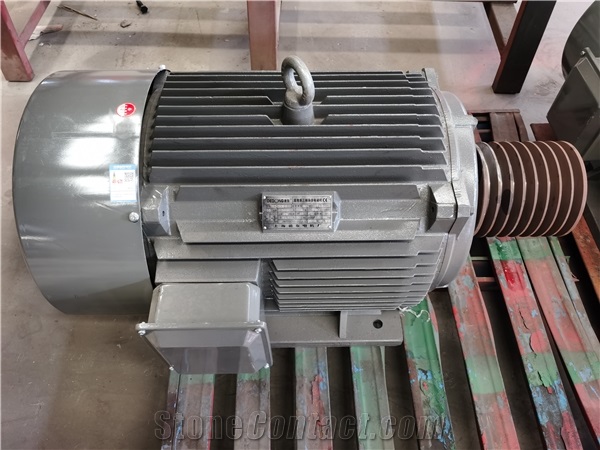

main motro
-
X axis movement motor
-

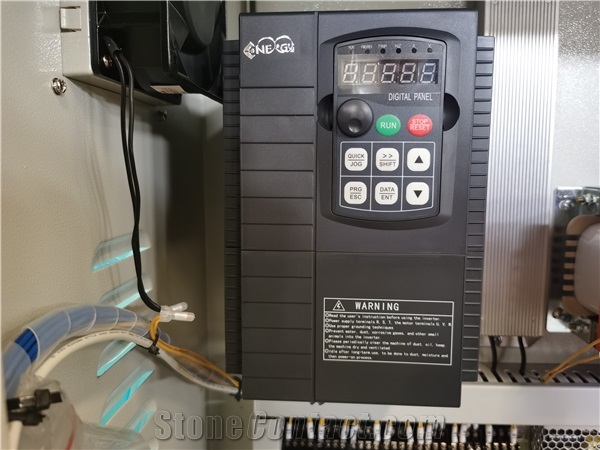

Frequency converter
-

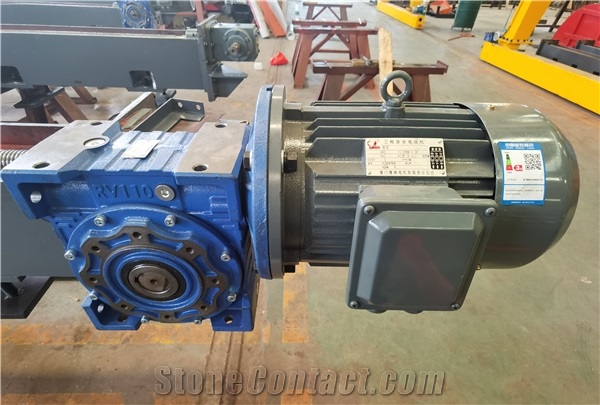

Y axis movement motor
-

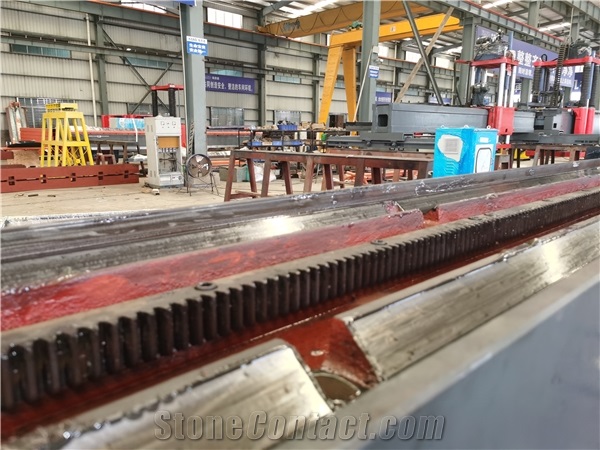

beam screw+V shap
-

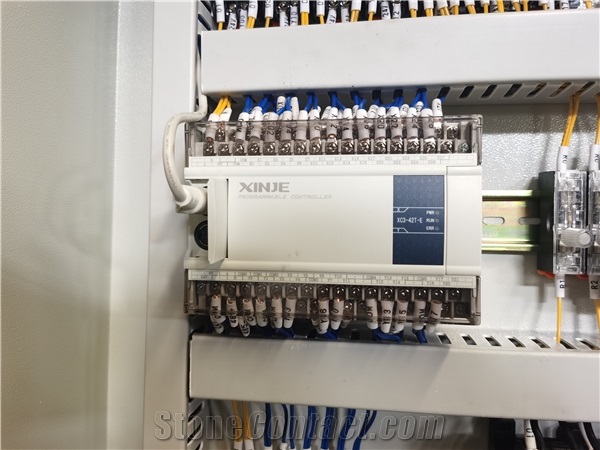

PLC
-

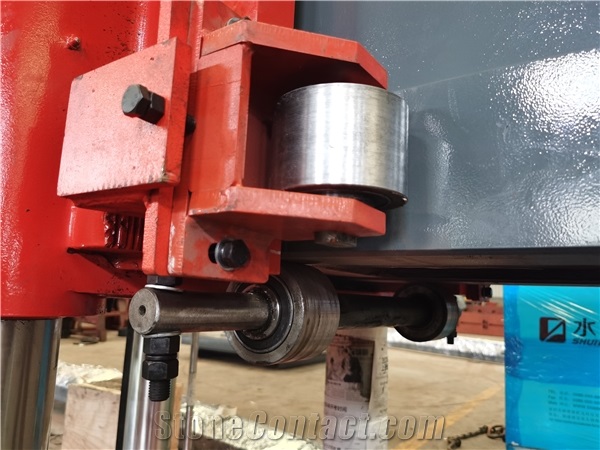

Load-bearing wheels
-

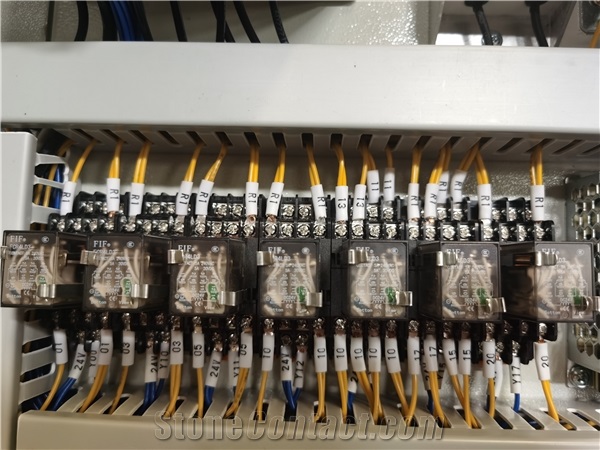

relay
-

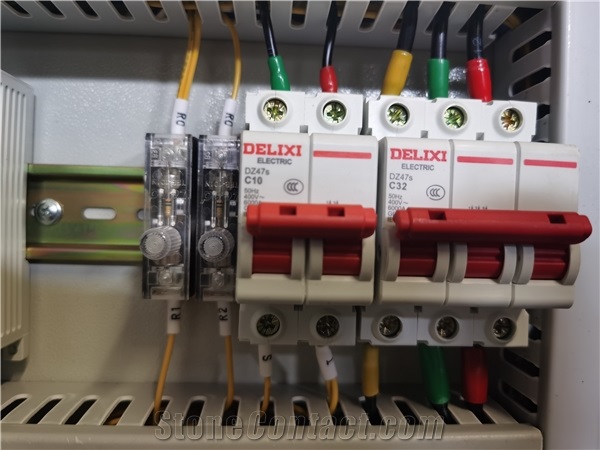

switch
-
hydraulic box
Consumables
-

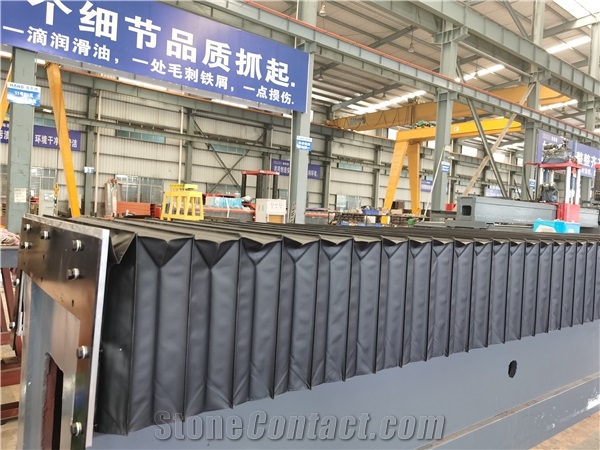

Dust guard
-

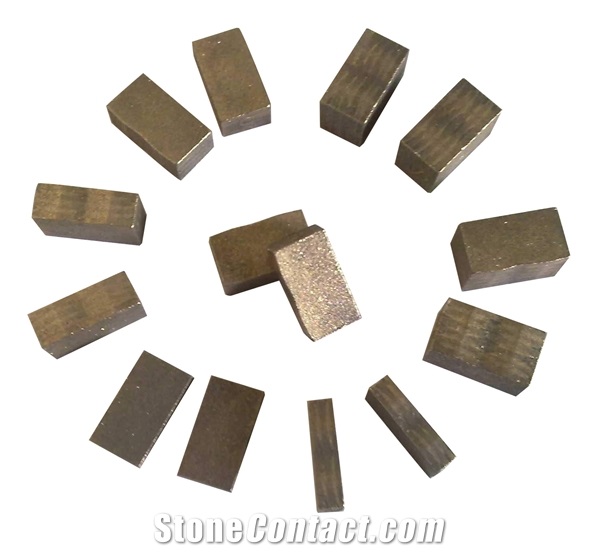

diamond
vulnerable parts of blade

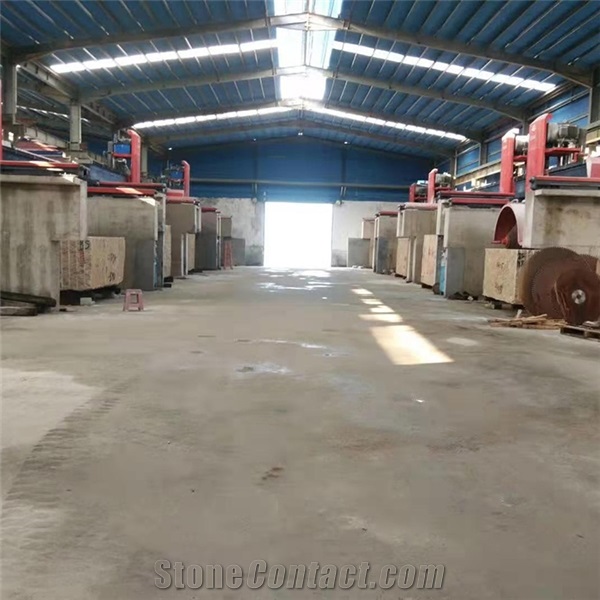

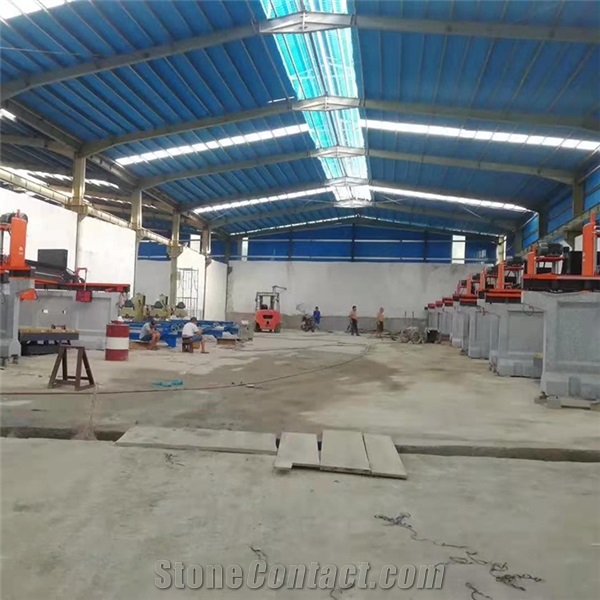

Customer Case
guang yang
China
2020
China
2020
Video
Install Video
Operation Video
