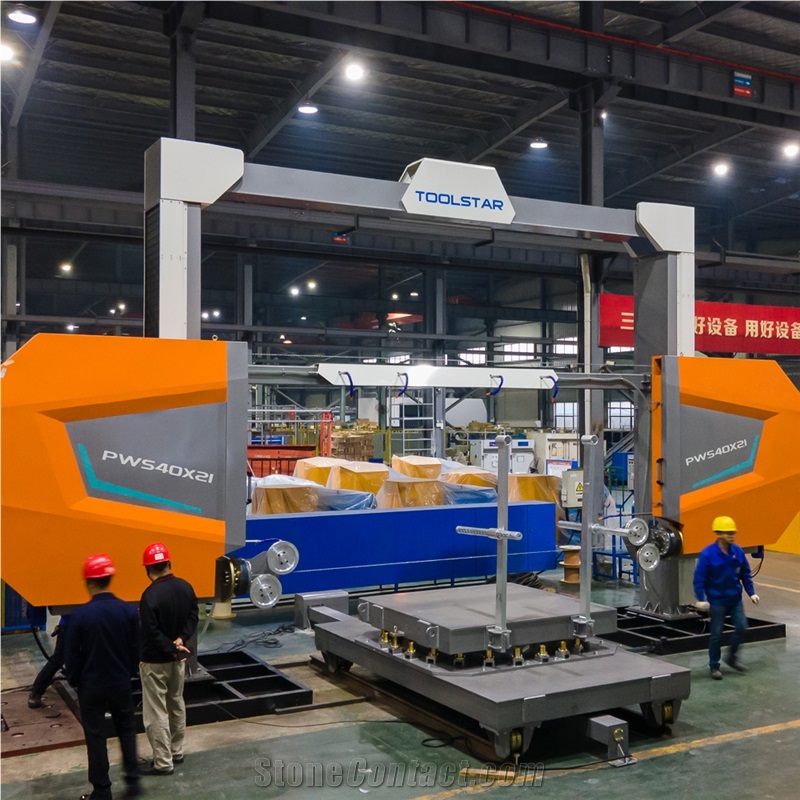

Single Diamond Wire Saw Machine For Stone Shaping Profiling And Shaping
FOB Price:$23261-46292
Type:
Stone Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
Usage:
Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
45 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
shenzhen- China
Delivery Details: FOB,CFR,CIF,EXW,FCA
Payment :
More
Supplier
Eatablished :Sep 15,2022
Main Product:
Multi Wire Saw Machine, Block Dressing Machine, Quarry Machine, Dth Bit, Diamond Wire Saw, Dth Hammer|
You may also like
Machinery Function Features
Automatic Cutting Function

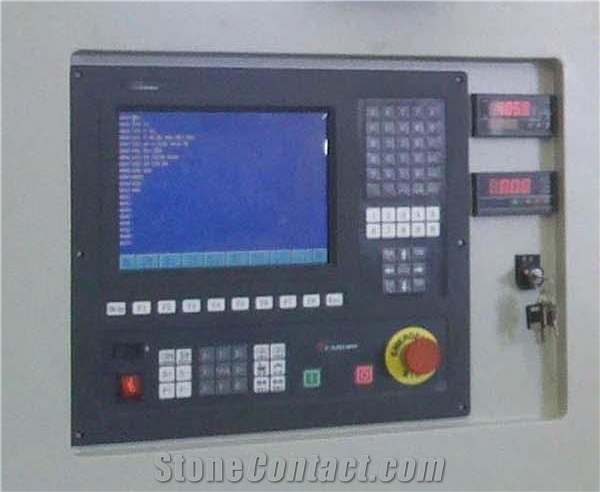

Main inverter /PLC+ touch screen
Travel Servo System
Lifting Servo System
360°Rotary Trolley
Technical Data
Parameters |
Unit |
PWS2000E |
PWS3000E |
PWS3000 |
Approximative Weight |
Kg |
7000 |
7500 |
7800 |
Max. tensioning force |
N |
8590 |
8590 |
8590 |
Block-holding trolley dimensions |
mm |
1600x1200 |
2500x2000 |
2500x2000 |
Guide Pulley's diameter |
mm |
4xdia.290 |
4xdia.290 |
4xdia.290 |
Flywheels diameter |
mm |
2xdia.1550 |
2xdia.1550 |
1xdia.1400+3xdia.800 |
Wire peripheral speed |
m/s |
0~35 |
0~35 |
0~38 |
Overall height |
mm |
4600 |
4600 |
5180 |
Overall dimensions (without perimeter fencing) lenght |
mm |
8100 |
8100 |
8653 |
Vertical Stroke |
mm |
1700 |
1700 |
2300 |
Total water requirements |
L/min |
30 |
30 |
30 |
Wire actuating motor power |
kw |
11 |
15 |
15 |
Diamond wire length |
m |
15.98 |
17.98 |
17.88 |
Block max. height |
mm |
1450 |
1450 |
2100 |
Block max. widht |
mm |
2000 |
3000 |
3000 |
Overall widht |
mm |
5600 |
5600 |
6000 |
Horizontal Stroke |
mm |
2500 |
3500 |
3500 |

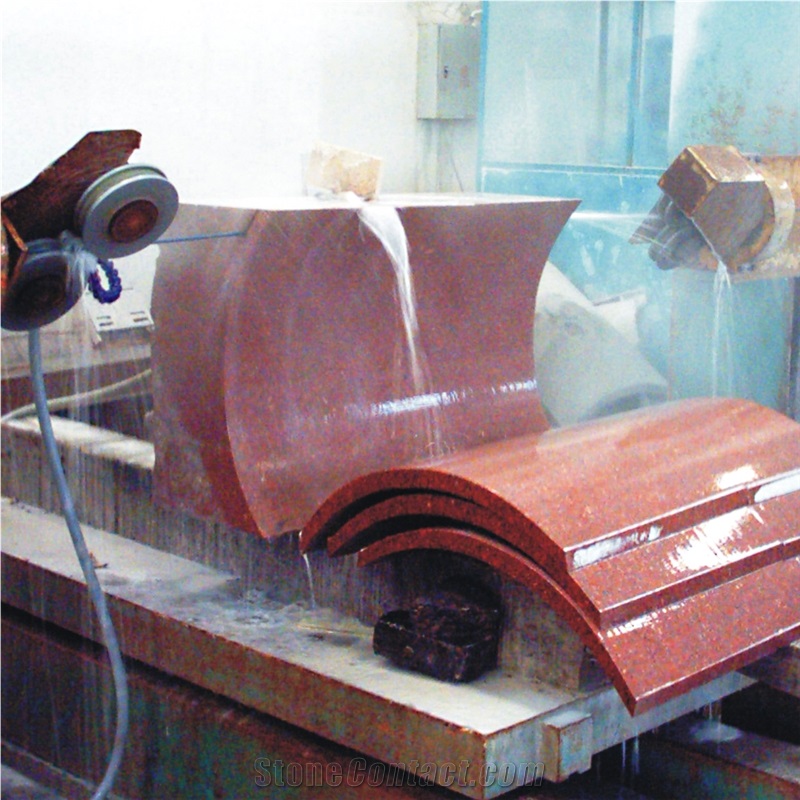

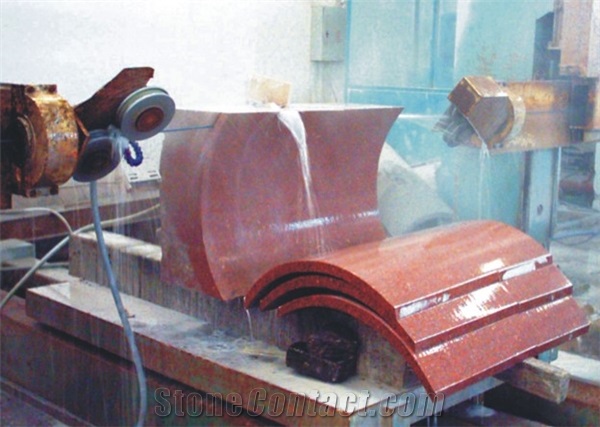

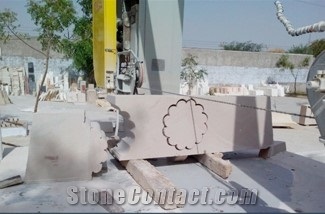

Processed Stone Photos

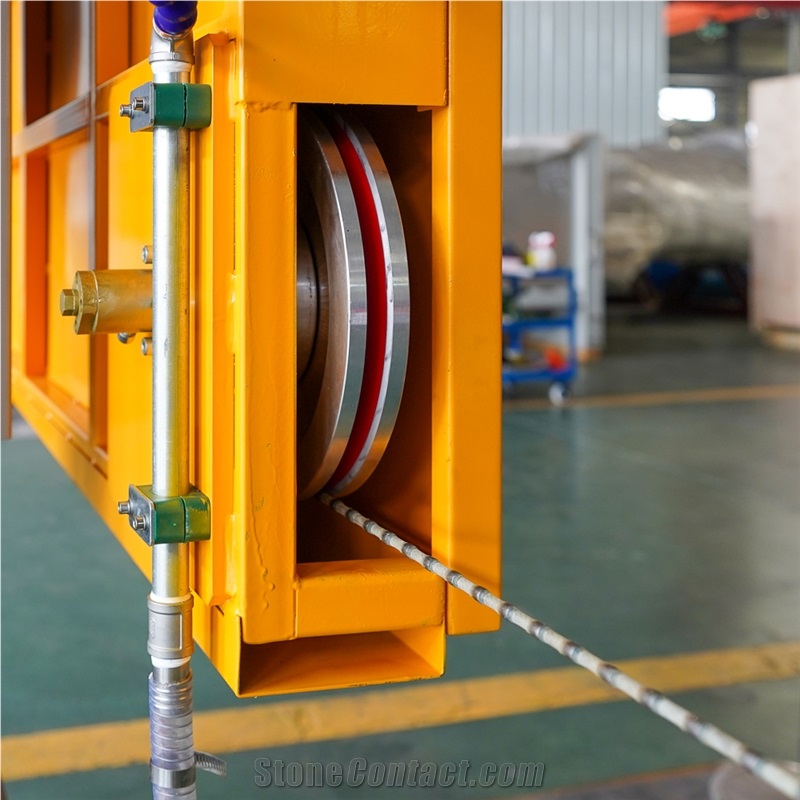

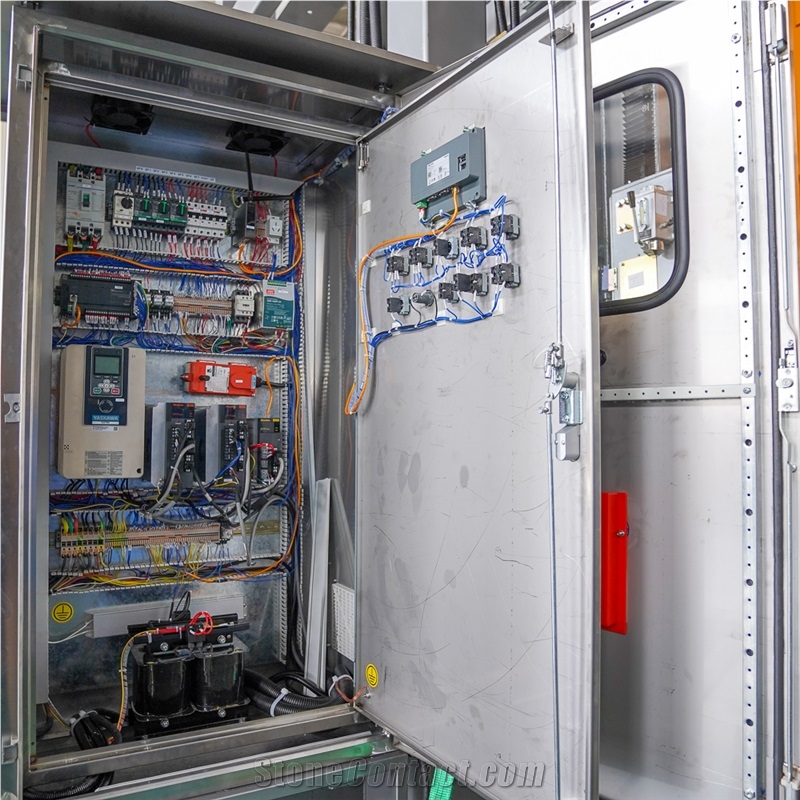

Components

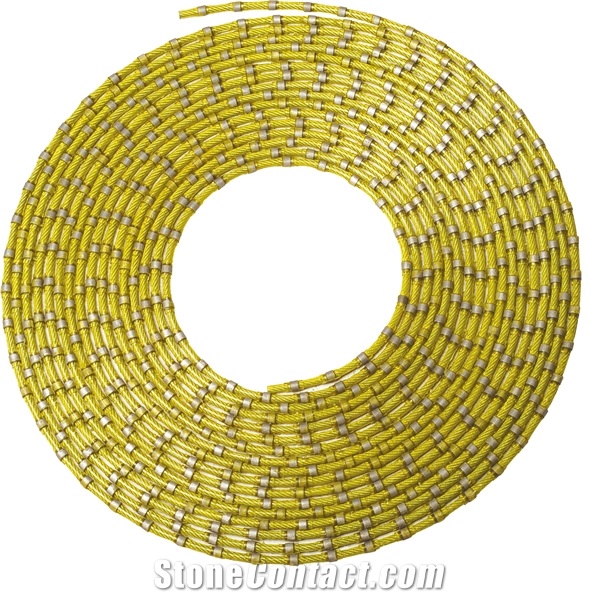

Consumables
-

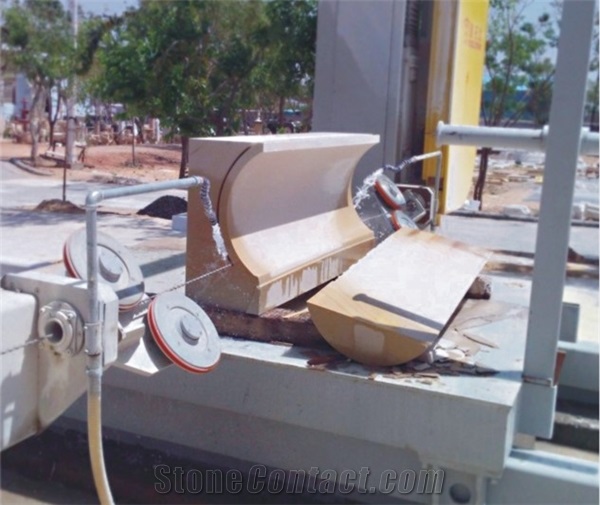

wire saw for profiling

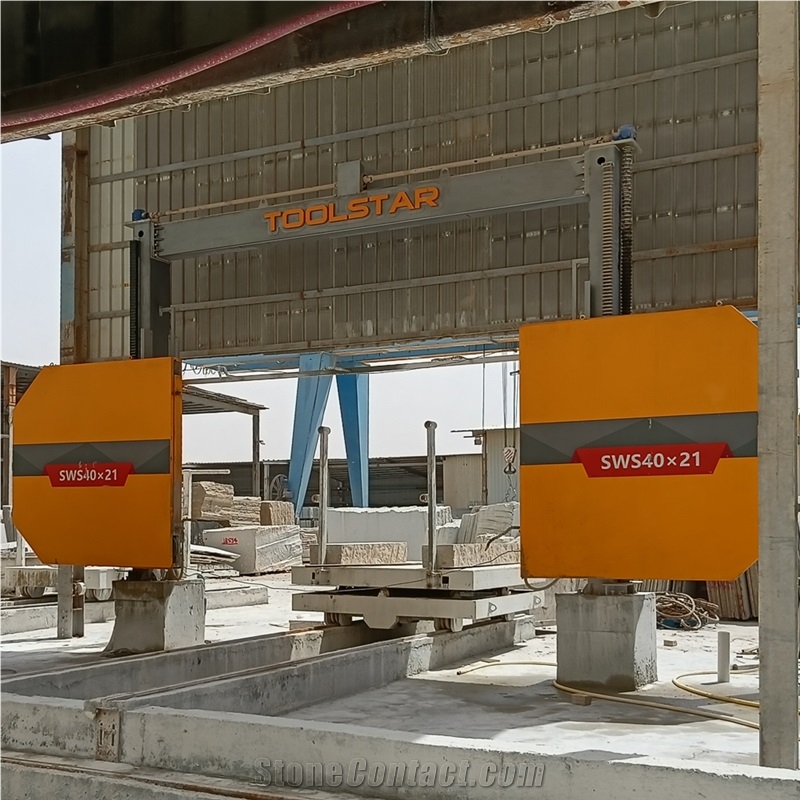

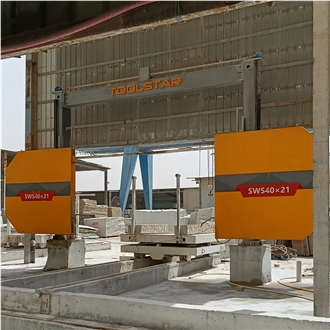

Customer Case
Video
Install Video
