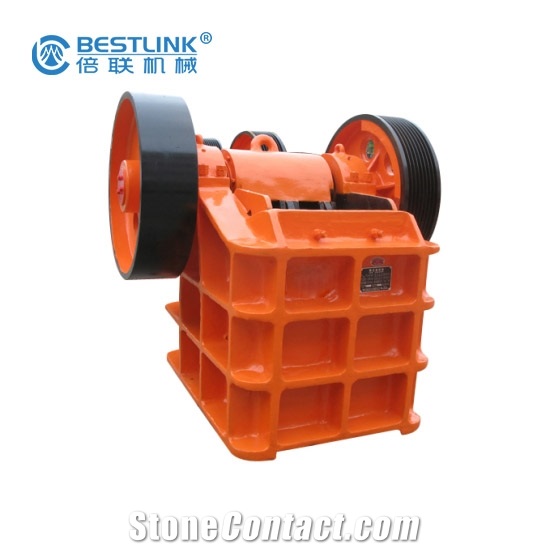

Granite Crushing Machine PE150*250mm Jaw Crusher for Stone

Name: Granite Crushing Machine PE150*250mm Jaw Crusher for Stone
Brand: XIAMEN BESTLINK FACTORY CO., LTD.
SKU: 4914
Price: 2000 USD
Availability: InStock

FOB Price:$2000-50000

Type: Stone Quarry MachinesRock Crushers, Jaw Crushers

Usage: Granite, Marble

After-Sale

Lead Time: 25 days

Warranty:12 Months

Install and Guarantee:Third-party team installation

Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

XIAMEN BESTLINK FACTORY CO., LTD.

BESTLINK

China

Eatablished :Dec 22,2000

Main Product:

Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|

Contact supplier

Start Order

You may also like

Gyratory Rock Crushers

Circular Vibrating Screen For Rock Crushers

EPS Jaw Crusher

Stone Crusher Machine

CPW Hammer Crusher

Product Detail
Company Profile

Overview

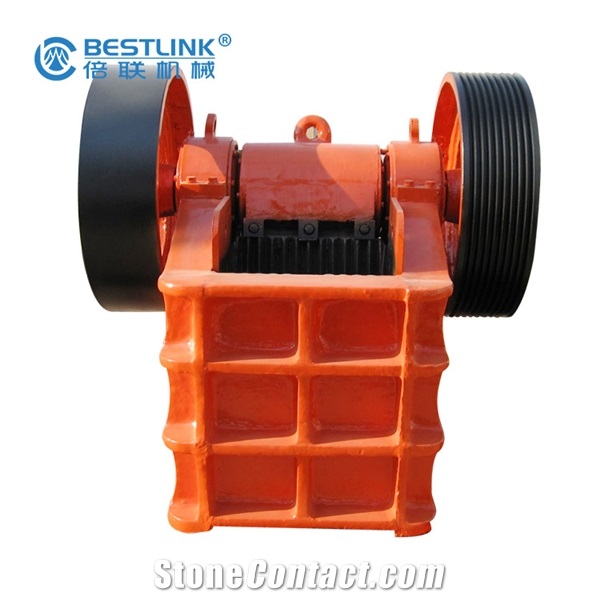

Components

Machinery Function Features

Application of Jaw Crusher: The crusher is applicable for the rough and medium crushing of rocks and ores with a compressive strength less than 245Mpa. Structure of Jaw Crusher: The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs. Operating principle of Jaw crusher: Jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.

Technical Data

Parameters	Unit	PE150*250mm
Dimension LxWxH	cm	758×758×794

Software

Model	Feed Opening (mm)	Max. Feed Size (mm)	Capacity (t/h)	Power Consumption (kw)	Discharge Opening (mm)	Overall Dimension (L x W x H) (mm)
PE-150×250	150×250	125	1-5	5.5	10-40	758×758×794
PE-250×400	250×400	210	5-20	15	20-60	1500×1400×900
PE-400×600	400×600	340	16-65	30	40-100	1700×1800×1600
PE-500×750	500×750	425	50-100	55	50-100	1890×1940×1870
PE-600×900	600×900	500	50-120	55	65-160	2395×1843×2230
PE-750 ×1060	750×1060	630	52-180	110	80-140	2775×2426×2840
PE-800×1060	800×1060	640	136-230	110	100-200	2500×2472×2810
PE-900×1200	900×1200	750	140-260	110	95-165	3400×3200×3500
PE-1000×1200	1000×1200	850	315-342	110	195-265	3335×3182×3430
PE-1200×1500	1200×1500	1020	400-800	160	150-300	4200×3732×4620
PE-250 ×750	250×750	210	15-30	22	15-70	1400×1300×1350
PE-250×1000	250×1000	210	16-52	30	25-60	1600×2000×1500
PE-250 ×1200	250×1200	210	20-60	37	25-60	1900×2200×1500
PE-300×1300	300×1300	260	30-70	55	30-90	1800×2300×1700
