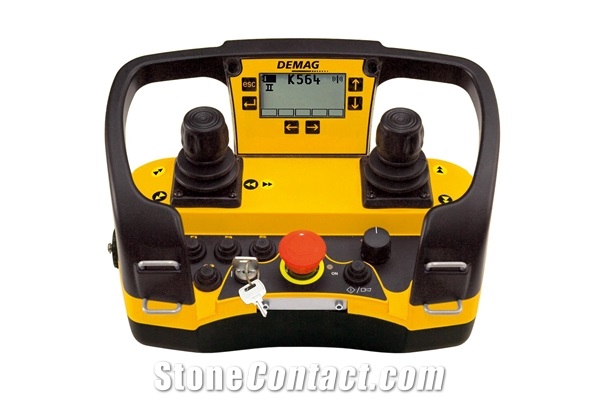

DRC-MP radio control system- Precise control by joystick or hand-held transmitter

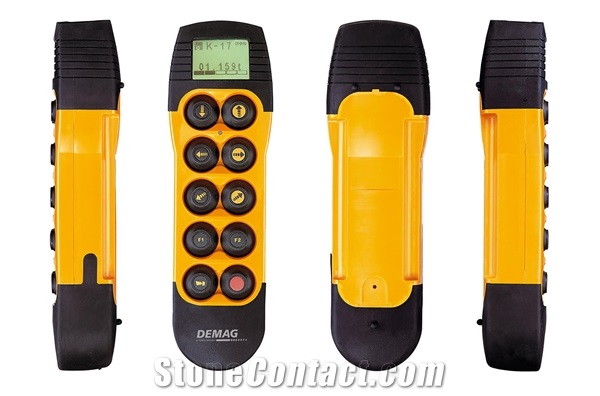

Convenient operation Simple and fast commissioning by means of wireless transmitter log-on Bi-directional signal transmission Graphic display showing battery capacity and installation status or warning messages Stop function according to EN 954-1, category 3 PL "d" Convenient operation for smooth and precise travel High availability ensured by high-speed charging of the transmitter battery in 2 hours Emergency operation also possible with conventional Mignon AA type batteries (key-actuated transmitter) High operating reliability Impact and temperature-resistant housing design Integrated impact protection on DRC-10 hand-held transmitter Individual configuration Also available as a complete set for existing universal cranes Comprehensive accessories available for improved protection against chemicals and abrasive materials Postal authority approval for operation without any need for registration or operating fees in many countries Technical data DRC-10 pushbutton transmitter 6 infinitely variable pushbuttons (for infinitely variable or max. 2-stage control of up to three axes) Horn/limit switch test button Stop button 2 pushbuttons for special functions Weight incl. rechargeable battery: 500 g IP 55 enclosure Temperature range -20 to +50 °C DRC-J joystick transmitter 1 joystick for lifting/lowering axis 1 joystick for two axes (cross and long travel) 1 horn/start button 1 limit switch test button 2 pushbuttons for special functions Mechanical key-operated switch to turn the transmitter on and off Weight incl. rechargeable battery: 1,800 g IP 55 enclosure Temperature range -20 to +70 °C DRC-MP receiver Supply voltage 42–240 V AC, +/- 10%, 50–60 Hz Output relay for 250 V, 8 A, AC11 PWM outputs 3 digital feedback channels Power consumption 12 VA IP 65 enclosure Temperature range -20 to +70 °C Dimensions: W x H x D: 256 x 183 x 104 mm
