Ruisheng 4800 mm Double Blade Mining Machine
FOB Price:$26800-27500
Type:
Stone Quarry MachinesDouble Blade Mining Machine
Usage:
Granite, Marble, Limestone, Slate, Basalt, Sandstone, Travertine
After-Sale
Lead Time:
20 days
Warranty:12 Months
Install and Guarantee:Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Machinery Function Features
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
2.The cylindrical guide rail is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer service life.
4.Equipped with super size saw blades, it can be used for the processing of ultra-large rocks and blocks to improve output percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining and diamond wire saw quarrying.
Technical Data
Parameters |
Unit |
4800 |
Motor of lengthwise rail swich |
kw |
1.5 |
Total Power |
kw |
137.7 |
Max. Cutting Depth |
mm |
2200 |
Gross Weight |
Kg |
11500 |
Center Distance of Rail |
mm |
2200 |
Power of Main Motor |
kw |
65 |
Dimension LxWxH |
mm |
5210x2150x3600 |
Power of Tool Stroke |
kw |
65 |
Power of Pump Motor |
kw |
4 |
Cutting Width |
mm |
2000-3100 |
Water Consumption |
m3/h |
5 |
Diameter of Blade |
mm |
2400/3600/4800 |

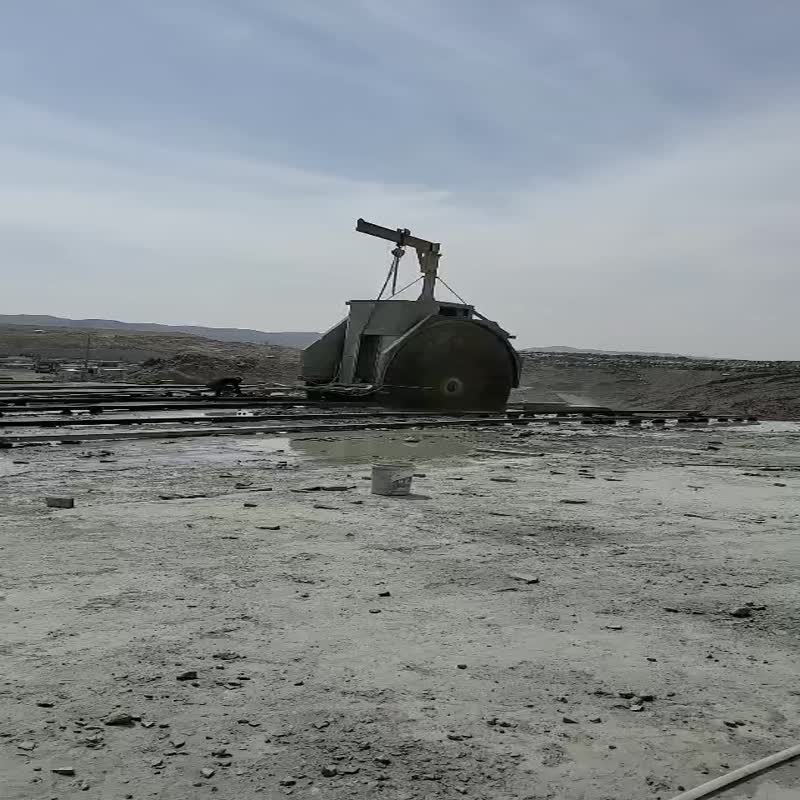

Work Example
- It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
- The cylindrical guide rail is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
- Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer service life.
- Equipped with supersize saw blades, it can be used for the processing of ultra-large rocks and blocks to improve output percentage of the mine and make full use of the mineral resource.
- Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining and diamond wire saw quarrying.
Video
Install Video
Operation Video
