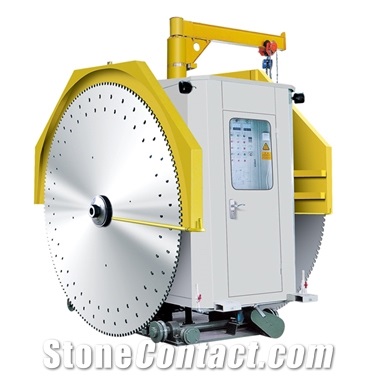

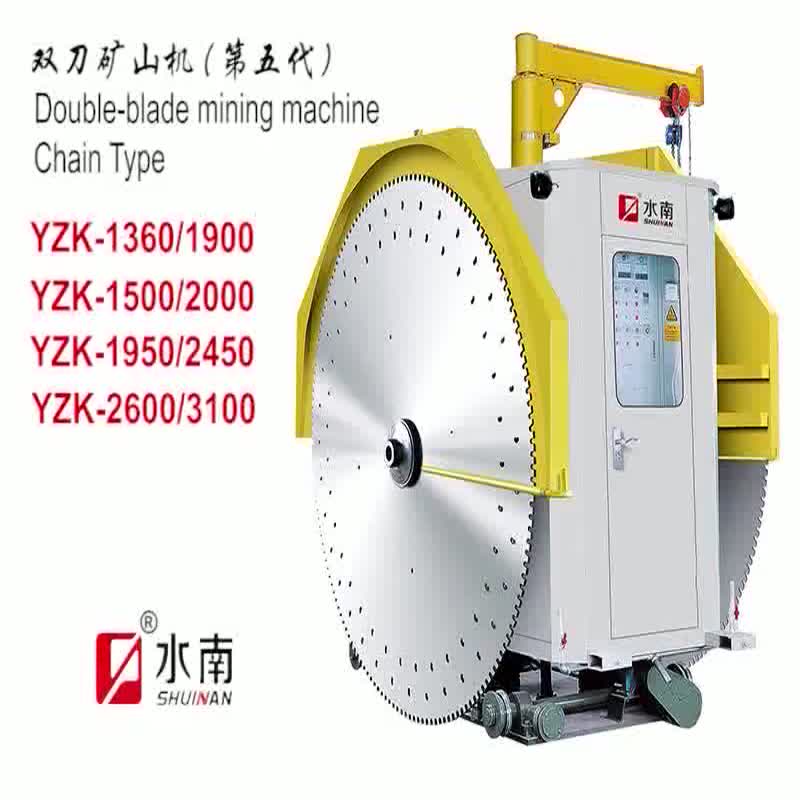

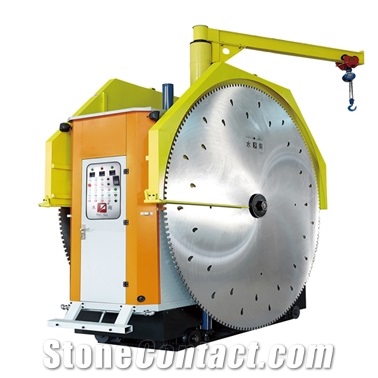

YKZ-1360/1900 Double Blade Mining Machine

Name: YKZ-1360/1900 Double Blade Mining Machine
Brand: Xiamen Asian Stone Imp.& Exp. Co.,Ltd.
SKU: 5119
Price: 17000 USD
Availability: InStock

FOB Price:$17000-22000

Type: Stone Quarry MachinesDouble Blade Mining Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 30 Days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Trade Terms

Delivery Details: FOB,CFR,CIF,DDP,DDU

Payment :

Supplier

Xiamen Asian Stone Imp.& Exp. Co.,Ltd.

ASIAN STONE

China level 14YR

Eatablished :Jun 17,2006

Main Product:

Countertops, Benchtops, Worktops, Slabs, Tiles, Tombstones|

Contact supplier

Start Order

You may also like

Double Blade Stone Cutting Machine

2QYKT - 3000/3600 Double Blades Cutter Quarry Stone Cutting, Double Blade Mining Machine

TJSN Series Double Blade Stone Cutter Quarry Machine

Automatic Double Blade Quarry Stone Mining Machine DF-1950/2450

Double Blade Block Cutter Mining Quarry Machine

Product Detail
Company Profile

Overview
Components
Video
Trade Terms
Customer Case

Machinery Function Features

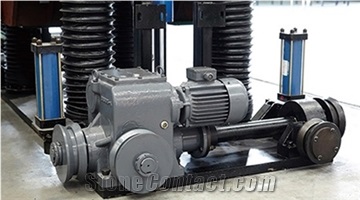

1.This machine adopts the new all-wheel-drive walking mechanism,needn’t daily maintenance. While avoiding the resulting security risks when the chain break. Running at constant speed,improve the cutting speed greatly, and reduce the loss of the cutting segments sharply, reduce the power consumption. 2.The spindle box connect with the motor directly instead of belt ,play to maximize the effective power of the motor. 3.Electrical control box with the Siemens technology,microcomputer tracks automatically, automatic deceleration in advance when the motor overwork and the blade is caught,prevent burning the main motor, improve the main motor’s life and production efficiency.

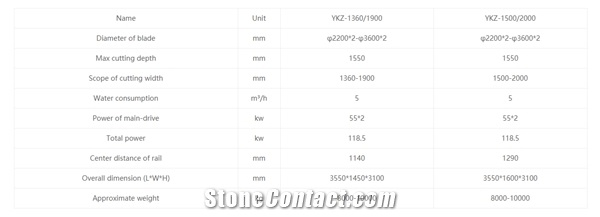

Technical Data

Parameters	Unit	YKZ-1360/1900	YKZ-1500/2000
Water Consumption	m3/h	5	5
Diameter of Blade	mm	2200x2-3600x2	2200x2-3600x2
Center Distance of Rail	mm	1140	1290
Cross Weight	kg	8000-10000	8000-10000
Max.Cuting Depth	mm	1550	1550
Total Power	kw	118.5	118.5
Dimension LxWxH	mm	3550x1450x3100	3550x1600x3100
Power of Main Motor	kw	55*2	55*2
Cutting Width	mm	1360-1900	1500-2000

Software

1.This machine adopts the new all-wheel-drive walking mechanism,needn’t daily maintenance. While avoiding the resulting security risks when the chain break. Running at constant speed,improve the cutting speed greatly,
and reduce the loss of the cutting segments sharply, reduce the power consumption.
2.The spindle box connect with the motor directly instead of belt ,play to maximize the effective power of the motor.

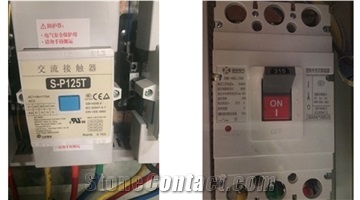

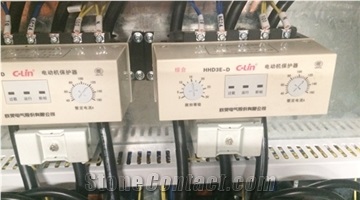

3.Electrical control box with the Siemens technology,microcomputer tracks automatically, automatic deceleration in advance when the motor overwork and the blade is caught,prevent burning the main motor, improve the main motor’s life and production efficiency.

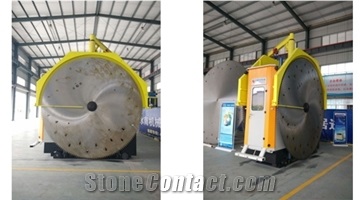

Work Example

1.This machine adopts the new all-wheel-drive walking mechanism,needn’t daily maintenance. While avoiding the resulting security risks when the chain break. Running at constant speed,improve the cutting speed greatly,
and reduce the loss of the cutting segments sharply, reduce the power consumption.
2.The spindle box connect with the motor directly instead of belt ,play to maximize the effective power of the motor.
3.Electrical control box with the Siemens technology,microcomputer tracks automatically, automatic deceleration in advance when the motor overwork and the blade is caught,prevent burning the main motor, improve the main motor’s life and production efficiency.

Processed Stone Photos
