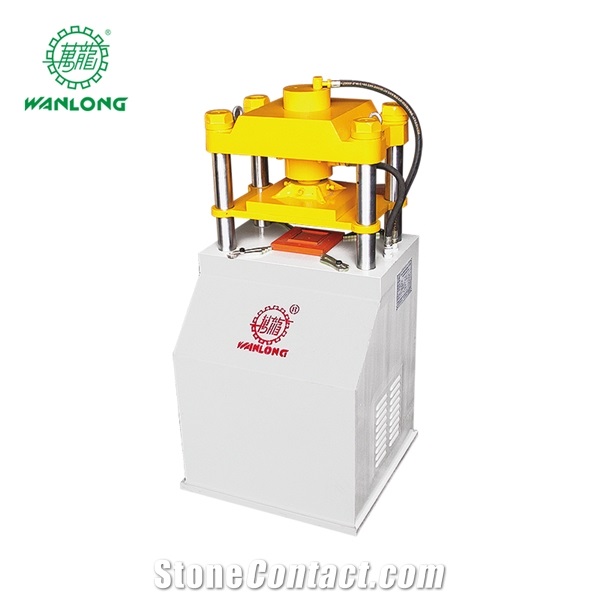

Stone Machinery SY-S81 Hydraulic Pressing Machine For Granite
FOB Price:$4500-5000
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 08,1993
ISO9001-2000,SGS,TUV
Main Product:
Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|
Machinery Function Features
SY-S81, whose oil pump is installed above the machine and this creates a good airproof result that protects the oil pump from stone dust. The machine's oil tank is enlarged, equipped with quality engine exported to overseas and front-door lock design which is convenient for repairing and maintenance. It has a good apperance, longevity and manual handle gives a sate operation.
Technical Data
Parameters |
Unit |
SY-S81 |
Machine height (H) |
mm |
1500 |
Approximate weight |
Kg |
800 |
Hydraulic oil grade |
46# |
|
Total power |
kw |
4 |
Max. working width |
mm |
200 |
Frequency |
Hz |
50/60 |
Voltage |
V |
380/415 |
Oil tank capacity |
L |
45 |
Machine width (W) |
mm |
650 |
Output per Hour |
m2/h |
15 |
Blade feeding speed |
cm/s |
3.5 |
Max. working height |
mm |
20 |
Machine length (L) |
mm |
650 |
Max. Pressure |
tons |
30 |

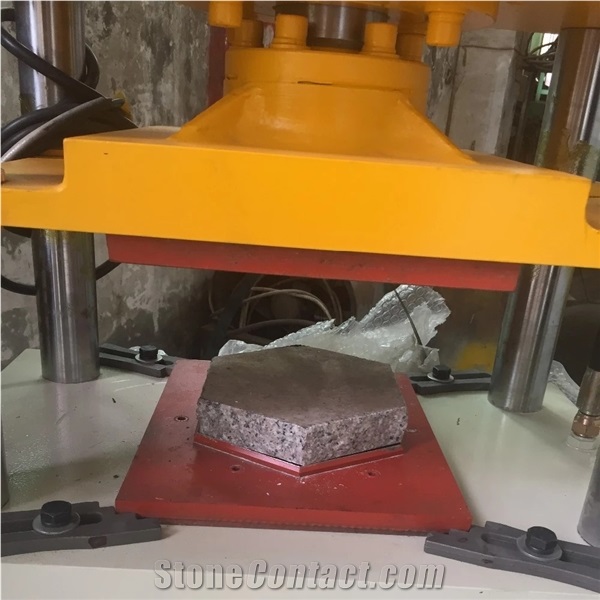

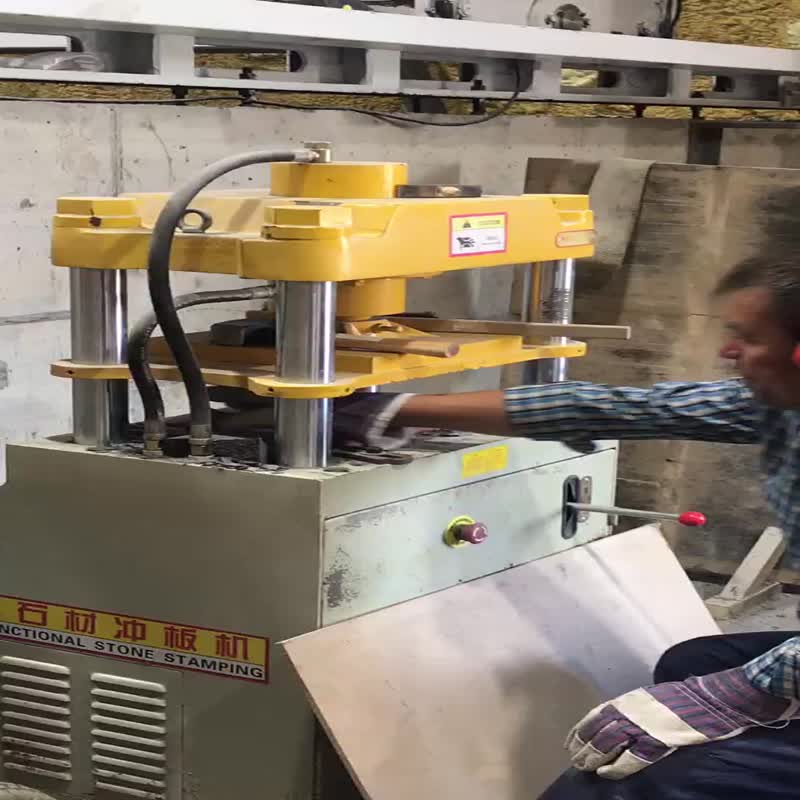

Work Example
SY-S81, whose oil pump is installed above the machine and this creates a good airproof result that protects the oil pump from stone dust. The machine's oil tank is enlarged, equipped with quality engine exported to overseas and front-door lock design which is convenient for repairing and maintenance. It has a good apperance, longevity and manual handle gives a sate operation.

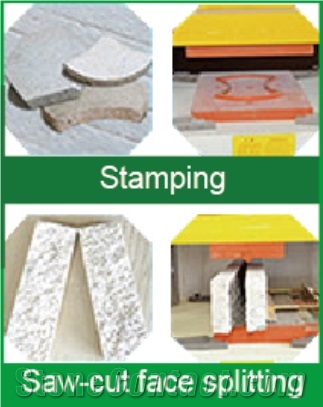

Processed Stone Photos
Components
Consumables

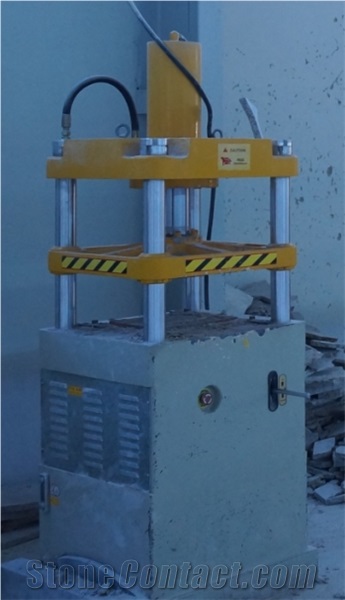

Customer Case
