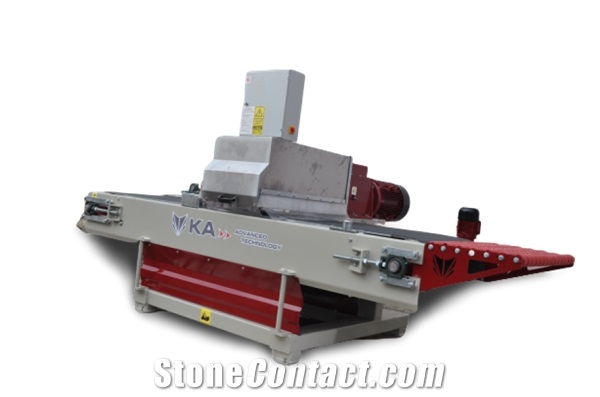

KA Multiple Cutting Machine - Multi-Blade Cross-Cutter,Trimming Machine

Name: KA Multiple Cutting Machine - Multi-Blade Cross-Cutter,Trimming Machine
Brand: KA MACHINERY
SKU: 5170
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming

Usage: Marble, Limestone, Onyx, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting, Field troubleshooting

Supplier

KA MACHINERY

Ka Makina

Turkey

Eatablished :Oct 04,2016

Main Product:

4-Legged St-Block Cutter, Slab Polishing, Tiles Polishing With Calibration Heads, Trimming-Sizing (Servo-Powered), Head Cutting With Belt, Hydraulic Belt Blasting|

Contact supplier

Start Order

You may also like

Bridge Four Knife Copying CNC Line Multi-Blade Cross-Cutter, Trimming Machine

Stone Cutting Line Cross Cutting Machine, Straight Cutter

Mighty Stone Saw With Dual Blades - Multi-Blade Cross-Cutter, Trimming Machine

Automatic Curbstone Cutting Machine Line

Auto.Cross-Lengthway Cutting Machine- Multi-Blade Cross-Cutter

Product Detail
Company Profile

Overview

Machinery Function Features

Saw Diameter Ø 400450 mm Number of Saws 1 Piece Saw Motor Power 7.5 kW / 11 kW Saw Driving Power 1.5 kW Maximum Cutting Width 800 mm Minimum Cutting Thickness 10 mm Maximum Cutting Thickness 80 mm Width 1500 mm Length 4400 mm Height 2400mm Weight 1250 kg

Technical Data

Parameters	Unit	KA Multiple Cutting Machine
Discs diameter	mm	Ø 400- 450
Max.Strip Machinable width	mm	800
Machine length (L)	mm	4400
Number of disc-holder heads	nr	1
Disc-holder head movement motor power(first one excluded)	kw	1.5
Disc-holder head motor power	kw	7.5 / 11
Machine width (W)	mm	1500
Machine height (H)	mm	2400
Max. working strip thickness	mm	80
Min. working strip thickness	mm	10
Approximate weight	Kg	1250
