Manzelli Vacuum Lifter Topline VAM 3PN / 625
FOB Price:€3990-3995
Type:
Stone Factory MachinesStone Handling, Loading MachinesAutomatic Loader, Unloader for Slabs
Usage:
Granite, Marble, Limestone, Artificial Stone, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Jan 06,1925
Main Product:
Used Machine, Abrasives, Tools, Saw Blades, Brushes, Grinding Tools|
Machinery Function Features

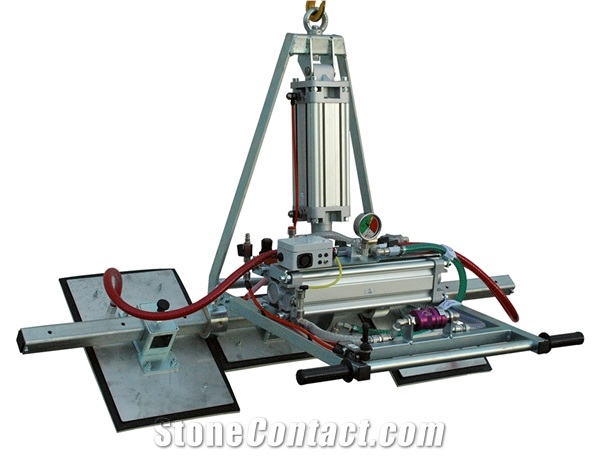

Manzelli vacuum lifter Topline VAM 3PN / 625
€ 3,995.00 *
excl. VAT plus shipping costs
Available again soon
Product number: M29.560
description
Product information "Manzelli vacuum lifter Topline VAM 3PN / 625"
3 suction plates
suitable for polished, sawn, rough, flamed or brushed surfaces
rustproof: suction plate made of stainless steel, frame construction made of rustproof, electro-welded quality steel, reserve vacuum container made of rustproof aluminum
the two outer suction plates can be moved individually, rotated by 90 degrees, installed or locked - so worktops with cut-outs or smaller plates can also be lifted without any problems
automatic swiveling from 0 - 90 degrees via DL tilt cylinder
safe lifting and transport thanks to acoustic and optical warning system
Generation of the vacuum via DL connection 6 bar 120 l / min | Weight 69 kg
Dimensions (L / H): 1,500 x 850 mm
Plate size (L / W): 2x 450 x 300, 1x 450 x 200 mm
Vertical load capacity: 625 kg
Type: VAM 3 PN / 625
Technical Data
Parameters |
Unit |
VAM 3PN / 625 |
Vacuum pump capacity |
L/min |
120 |
Min. Compressed air pressure |
bar |
6 |
Single suction cup max. capacity |
Kg |
625 |
Machine overall width |
mm |
850 |
Machine overall length |
mm |
1500 |
Approx. Weight |
Kg |
69 |
Plate size (L / W) |
mm |
2x450x300, 1x450x200 |
