Cubic Stone Paving Making Machine
FOB Price:$1000-5500
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time:
20 days
Warranty:6 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Dec 22,2000
Main Product:
Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|
Machinery Function Features

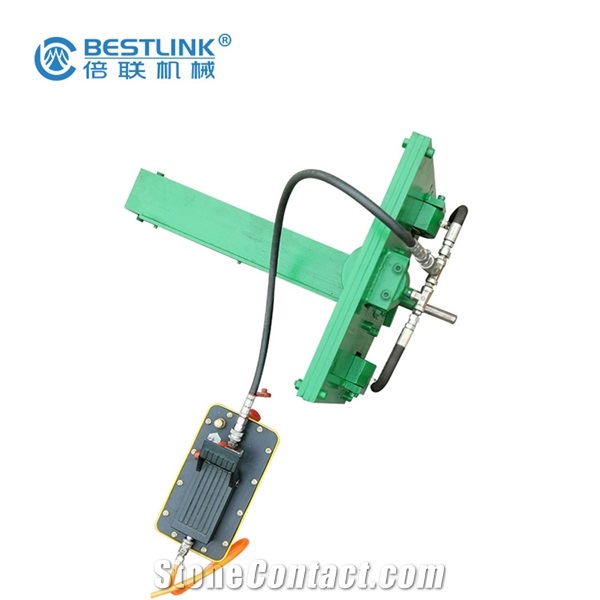

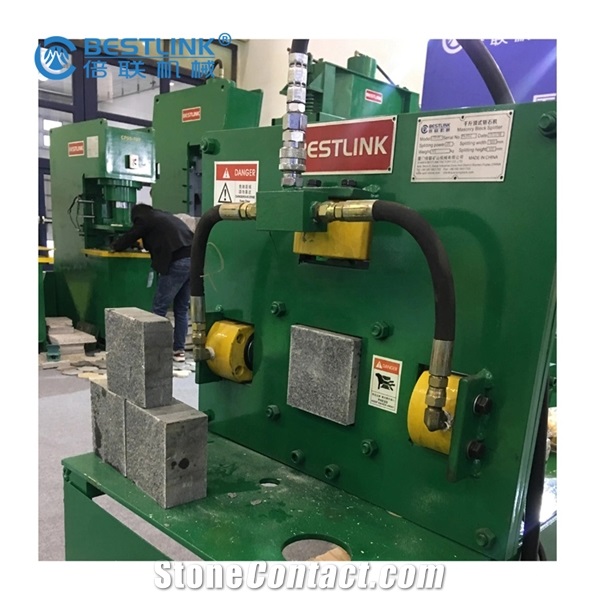

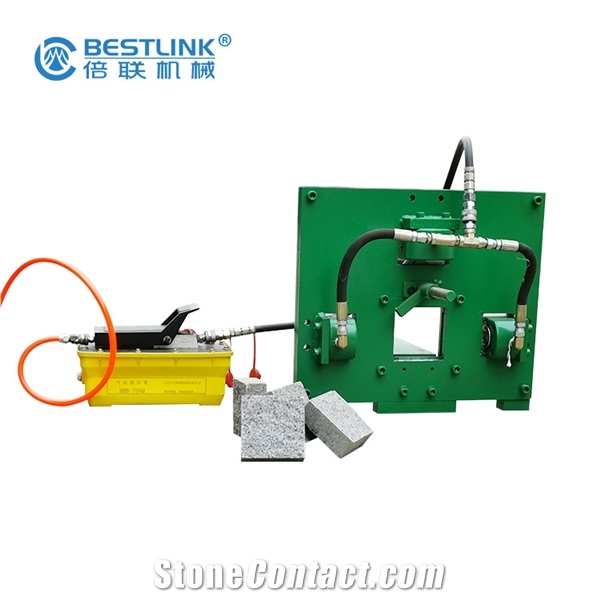

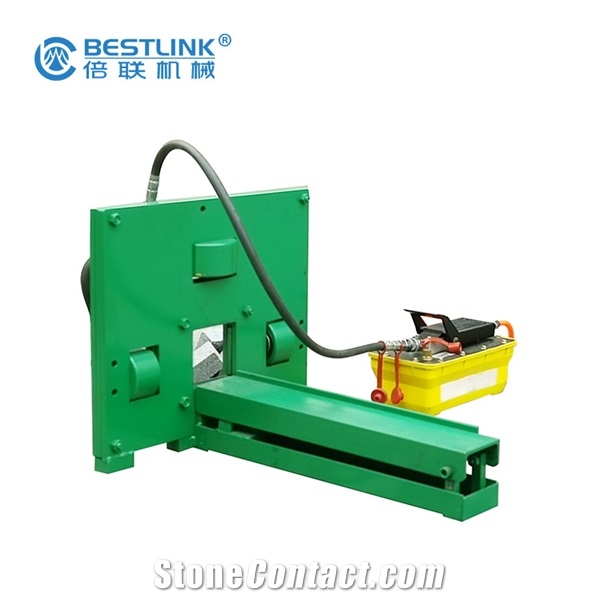

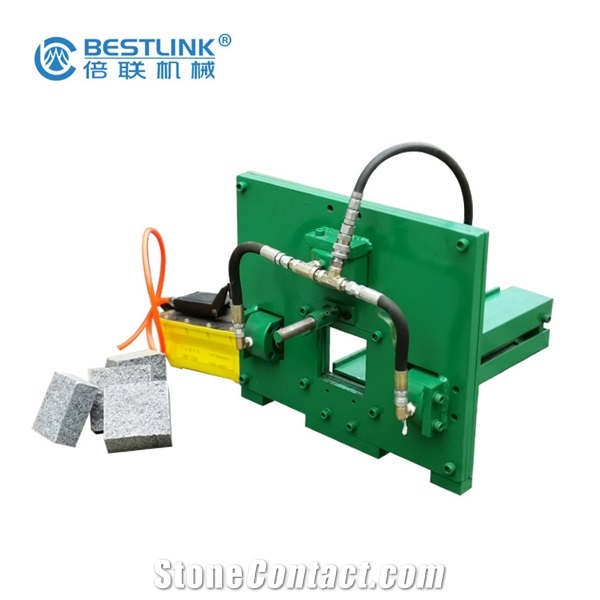

Electric Hand held Cubic Stone Chopping Tools can be widely used for splitting granite, marble, basalt and sandstone etc.
This machine only can be used to chop one size 10*10cm cubic, electric power or pneumatic driven both are ok.
Technical Data
Parameters |
Unit |
c-20m |
Approximate weight |
Kg |
85 |
Software
Specification:
| Model | C-20M | |
| Max splitting force(T) | 20 | |
| Splitting size(mm) | L*100*100(fixed) | |
| Power request |

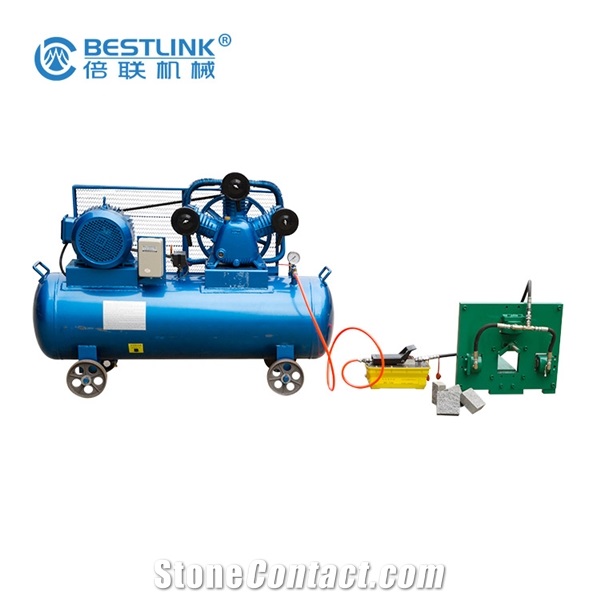

Air compressor Air working pressure 5-7bar, Air consumption 450-550L/min. |
Electric pump:2phases, 220V/50Hz,0.6KW, oil tank 3L, Oil flux 0.6L/min. 1600RPM |
| Overall dimension(mm) | 800*500*500 | |
| Weight(kgs) | 70 | 85 |

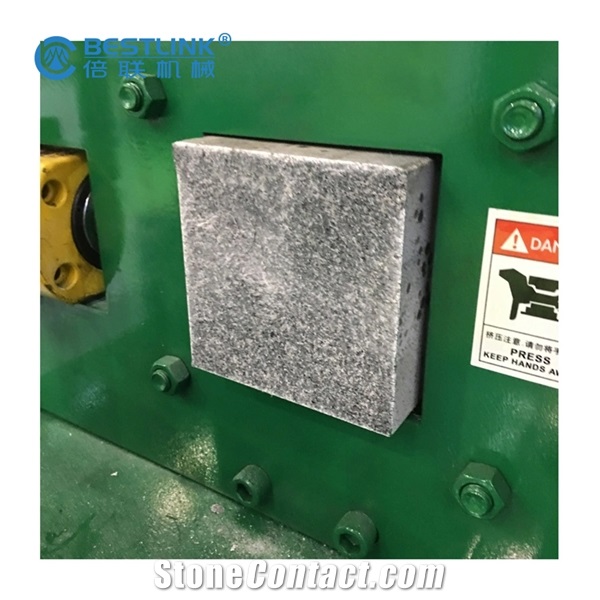

Processed Stone Photos
Components
Consumables
