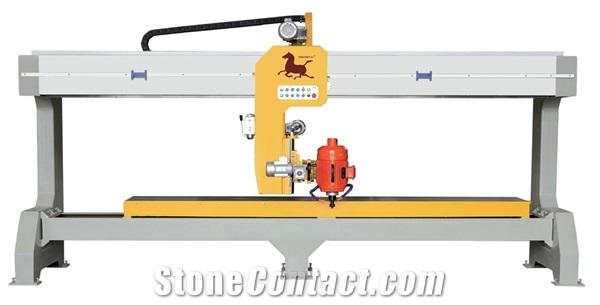

Automatic Stone Edge Profiling Polishing Machine
FOB Price:$9300-10200
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Profiling Line Machine
Usage:
Granite, Marble
After-Sale
Lead Time:
within 25-35 days after received deposit
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Feb 26,2006
Main Product:
Quarry Machine;, Stone Cutting Machine, Stone Polishing Machine, Stone Crushing Machine, Other Machine, Stone Tools|
You may also like
Machinery Function Features
1.It adopts the bridge structure with double rail movement in the new products by our own designer.
2.It has strong and firm body to process the curve line by adjustin the head cross direction.
3.The down cutting speed is adopted by inverter control.
4.It can process the straight line by rotated the machine head to be 90 degree, with the movement by inverter control, and one person can make more machine when in processing line polishing.
5.It is the most pratical machineto process in stone market with high efficiency, fast process, good stable and great precision.
Technical Data
Parameters |
Unit |
TJZD-1 |
Grinding Disk Diameter |
mm |
Ø140-Ø160 |
Water consumption |
m3/h |
1.7 |
Main shaft |
mm |
Ø30 |
Max. processing length |
mm |
Straight line 3200mm curve line 2600mm |
Main motor power |
kw |
7.5 |
Max. processing thickness |
mm |
150 |
Total power |
kw |
9.74 |
Approx. Weight |
Kg |
2500 |
Overall Dimension |
mm |
4530*1450*2350 |

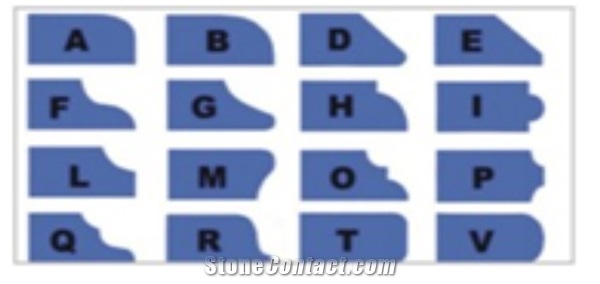

Processed Stone Photos

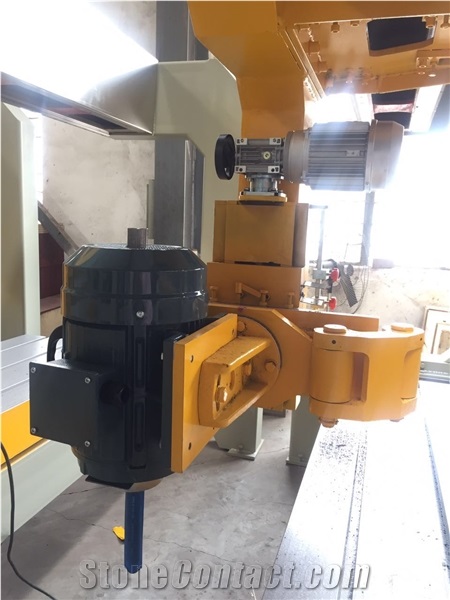

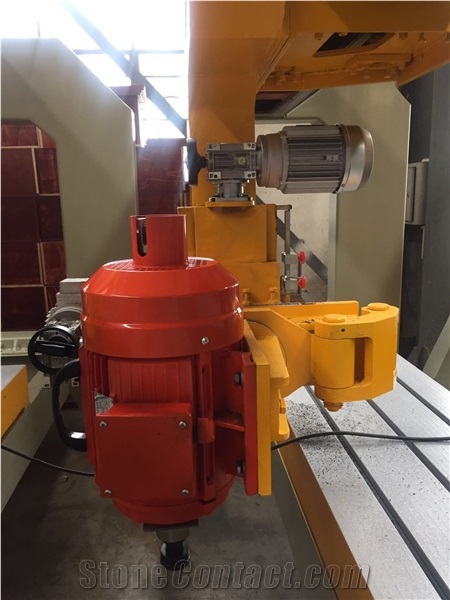

Components

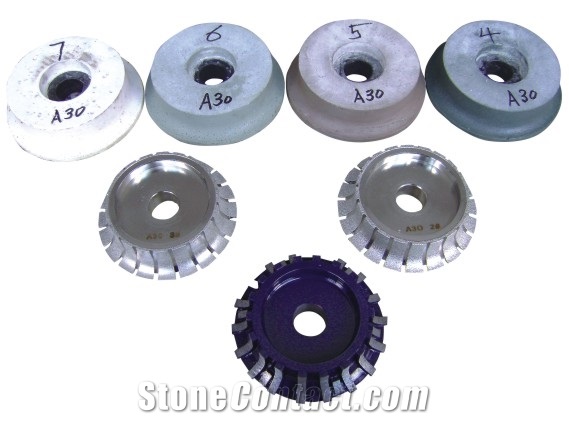

Consumables
