CNC Stone Carving, Engraving Machine
FOB Price:$3400-10500
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Usage:
Granite, Marble
After-Sale
Lead Time:
within 25-35 days after received deposit
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Feb 26,2006
Main Product:
Quarry Machine;, Stone Cutting Machine, Stone Polishing Machine, Stone Crushing Machine, Other Machine, Stone Tools|
You may also like
Machinery Function Features
This engraving machine is mainly used in the engraving of the hard materials.
Such as marble, grantie, glass, stone,etc.
Advantages:
1) Heavy duty steel machine bed, it's very strong and stability;

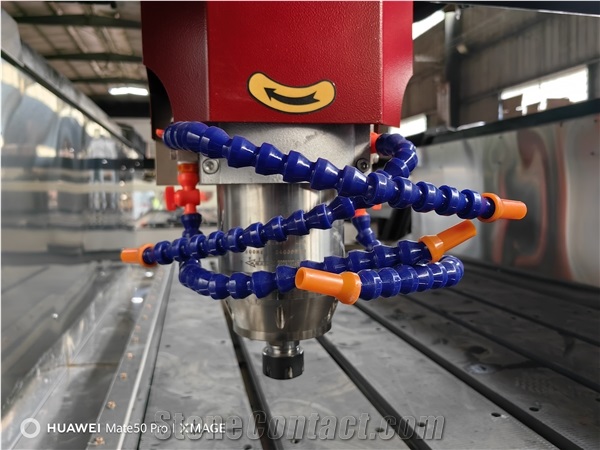

2) Powerful 5.5kw water cooling spindle, perfect working for stone carving;
3) With Ncstudio(DSP) A11 control system, without connect with computer and easy to operation
Technical Data
Parameters |
Unit |
TJPG9015 |
TJPG1318 |
TJPG1325 |
TJPG1525 |
Working Size(z) |
mm |
<300 |
<300 |
<300 |
<300 |
Diameter Range of Carving Knife |
mm |
Ø3.175-Ø12.7 |
Ø3.175-Ø12.7 |
Ø3.175-Ø12.7 |
Ø3.175-Ø12.7 |
Max. working speed |
mm/min |
15000 |
15000 |
15000 |
15000 |
Voltage/frequency |
v/hz |
AC380/50 |
AC380/50 |
AC380/50 |
AC380/50 |
Rail |
Taiwan hiwin 20 |
Taiwan hiwin 20 |
Taiwan hiwin 20 |
Taiwan hiwin 20 |
|
Control System |
Ncstudio(Optional:DSP) |
Ncstudio(Optional:DSP) |
Ncstudio(Optional:DSP) |
Ncstudio(Optional:DSP) |
|
Main spindle motor power |
kw |
5.5 water-cooled(24000rpm/min)) |
5.5 water-cooled(24000rpm/min)) |
5.5 water-cooled(24000rpm/min)) |
5.5 water-cooled(24000rpm/min)) |
Reposition Accuracy |
mm |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
Max no-load Speed |
mm/min |
25000 |
25000 |
25000 |
25000 |
Working Area(x*y) |
mm |
900*1500 |
1300*1800 |
1300*2500 |
1500*2500 |

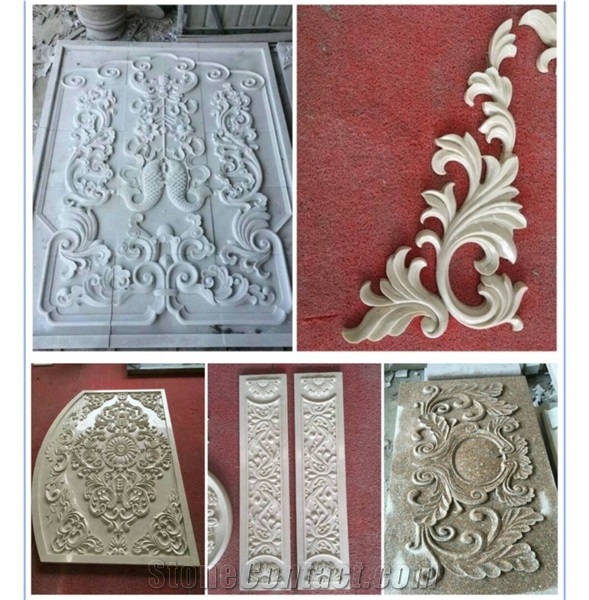

Processed Stone Photos
Components

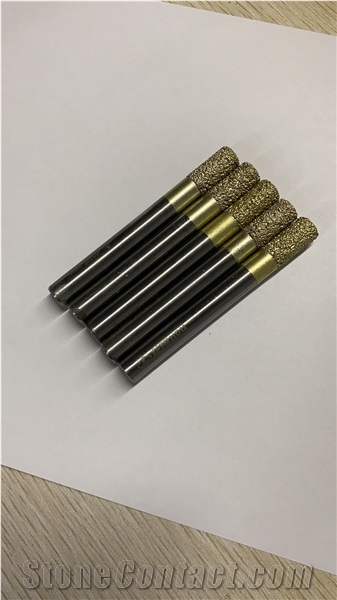

Consumables
