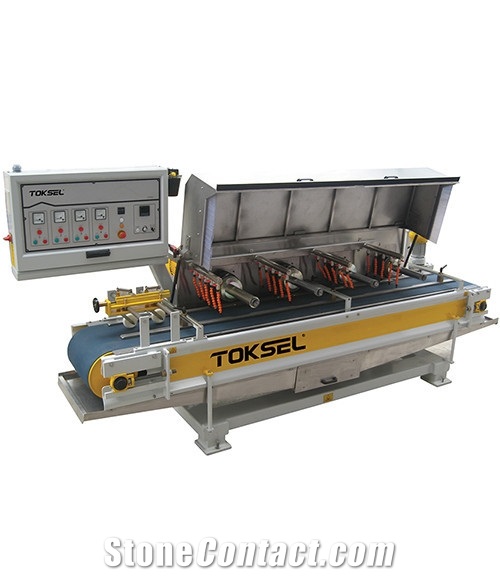

Alligator P3/P4/P5/P6 Profiling Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting, Field troubleshooting
Machinery Function Features
Alligator ® Profile Machine
Alligator ®, profile machine, 7.5x7.5, 10x10, 15x15, 20x20, 30.5x30.5 cm width of natural and artificial stone types shaping with chip removal apparatus.
Alligator ® is manufactured in adhering to all the vital standards in other Toksel brand products. Energy smart motors, first quality bearing and machine elements, central fluid lubrication system, rigid and resistant structure, stainless material density, watertight board and high IP sealing standards, first class electrical-electronic materials, touch screen, extra cooling fans, motor and machining spindle special system and more…
Specialist Equip(Ment), Futuristic Surfaces

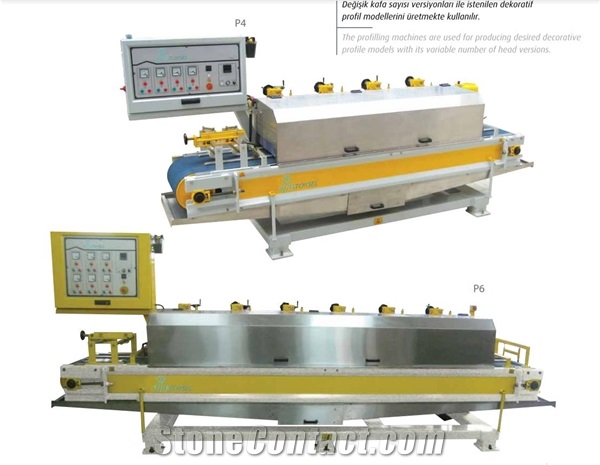

With 4,5,6 head solutions, the Alligator ® perfectly processes the waveform surfaces you dream of. Increased head counts allow for high quality surfaces with rapid production. As with different machines, Alligator ® also offers may features such as automatic lubrication, intensive stainless material handling, remote access and intervention, reporting, remote monitoring, warning and alarm.
Alligator ® materials are certified as well as are subject to input quality processes by the Toksel quality unit. Raw materials processed in the industry’s number of processing machines are colored on the state of the art surface covering line. Alligator ®, undergoing mechanical processes and tests at the installation site located within a 12,000 square meter facility, meets its users with the latest quality controls.
Technical Data
Parameters |
Unit |
P3 |
P4 |
P5 |
P6 |
Max. processing thickness |
mm |
60 |
60 |
60 |
60 |
Total power |
kw |
34 |
45 |
56 |
67 |
Calibrating/shaping/cutting spindle power |
kw |
11 |
11 |
11 |
11 |
Belt advancement speed |
m/min |
0-4.9 |
0-4.9 |
0-4.9 |
0-4.9 |
Max. diameter of shaping wheel |
mm |
200-300 |
200-300 |
200-300 |
200-300 |
Water consumption |
L/min |
90 |
120 |
150 |
180 |
Standard diameter of chamfering wheels |
mm |
200-300 |
200-300 |
200-300 |
200-300 |
Machine overall width |
mm |
1500 |
1500 |
1500 |
1500 |
Machine overall height |
mm |
1800 |
1800 |
1800 |
1800 |
Max. processing width |
mm |
300 |
300 |
300 |
300 |
Machine overall length |
mm |
3300 |
3850 |
4400 |
4950 |
No. calibrating/shaping/cutting spindles |
nr |
3 |
4 |
5 |
6 |
Grinding tool diameter |
mm |
200-300 |
200-300 |
200-300 |
200-300 |
Conveyor Belt width |
mm |
480 |
480 |
480 |
480 |
