Stone Machinery Inartificial Surface Splitter For Granite Marble

FOB Price:$5000-55000

Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time: 30-45 days
Warranty:12 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Eatablished :Dec 22,2000

Main Product:

Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
Machinery Function Features
Stone Machinery BRT200ton Inartificial Surface Splitter For Granite Marble Hydraulic operated stone splitting machines can be use for every kind of stone. The machinery is primarily designed for the manufacture of tiles, curbstones, and split-faced walling, but can also be adapted to other areas of the stone industry. The crushing power and long blade, Broadway and Winstar models are adequate for large wall stone and curbing production.
Technical Data
Parameters
Unit
brt200t
Max. Pressure
tons
200
Software

We provide several models for your various choice, like BRT20T, BRT40T, etc. Of course, we also can design a special model based on your detailed requirement.

Model no. BRT320-1200*800 BRT160T-500*550 BRT70-400*350 BRT40T-240*320 BRT20T-160*180
splitting pressure 320t 160T 70T 40T 20T
max. splitting width 1200mm 500mm 400mm 240mm 160mm
max. splitting height 800mm 550mm 350mm 320mm 180mm
adaption of upper
/lower blade
36*20mm 30*15mm 20*10mm 15*10 10*7mm
rated power 22KW 15KW 11KW 11KW 7.5KW
rated voltage 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
electric current 42.5A 30A 22.6A 22.6A 15A
main oil
cylinder data
Φ400/Φ280-850 Φ280/Φ200-600 Φ200/Φ140-360 Φ160/Φ110-340 Φ110/Φ80-200
oil advanced speed 40mm/s 76.6mm/s 108mm/s 167mm/s 96mm/s
overall size
(L*W*H)/mm
2370*1500*3840 1970*1200*3300 1500*1200*2520 1260*1000*2300 1145*1000*2030
weight 8000KG 5300KG 3200KG 2900KG 2300KG

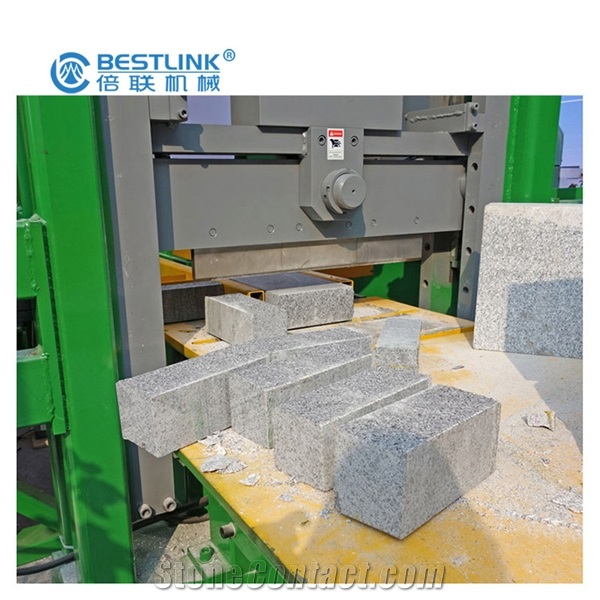

Processed Stone Photos
  • Processed Stone Photos
