SNIC 6 Disks Splitter SNM-REF Multi-Blade Tile Cutting, Trimming Machine
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 01,1962
Main Product:
Stone Machinery, Cutting Machines, Polishing Machines|
Machinery Function Features
General Characteristics

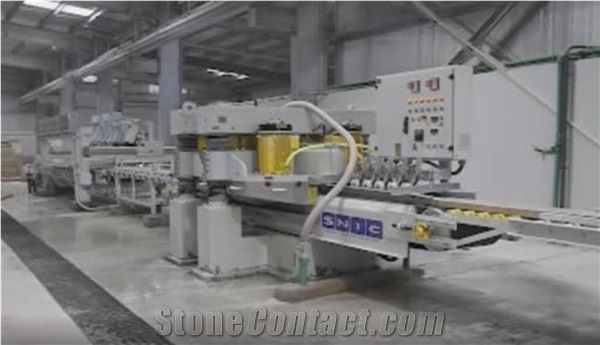

The Horizontal splitting machine allows doubling the production of the block-cutter by splitting in two pieces thik slabs cut on the latter. Placed on the beginning of the marble line it feeds it continuously increasing production and lowering cost.
The machine is manufactured in two models: with 2 or 4 tables. in the REF1x62, 1 pair of opposed spindles are placed so that every blade can cut half of the width of the material.
The REF4x62, is equipped with two pairs of opposed spindles so that every blade can cut one fourth of the material. This system allows dealing with the cut of hard marbles.

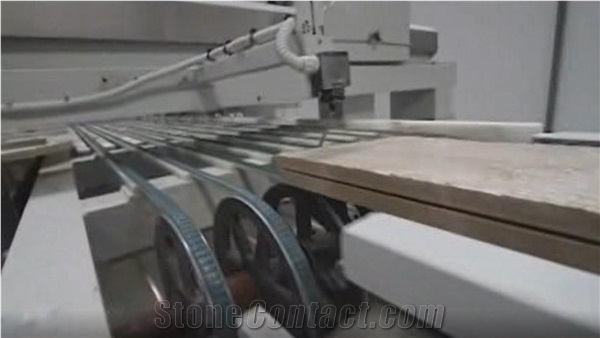

The hardness of the material determines the feed speed of the belt that can be adjusted from 0 to 3m/min.
Technical Data
Parameters |
Unit |
6 Disks Splitter SNM-REF |
Max.Strip Machinable width |
mm |
630 |
Machine height (H) |
mm |
2050 |
Number of disc-holder heads |
nr |
6 |
Conveyor belt width |
mm |
500 |
Water requirement for each spindle |
L/min |
200 |
Discs diameter |
mm |
2x625/ 2x650/ 2x850 |
Conveyor system control motor power |
kw |
0.37 |
Machine width (W) |
mm |
2200 |
Machine length (L) |
mm |
6700 |
Installed electrical power |
kw |
133.87 |
Approximate weight |
Kg |
7960 |
Disc-holder head motor power |
kw |
4x22 / 2x18.5 |
Max. working strip thickness |
mm |
160 |
