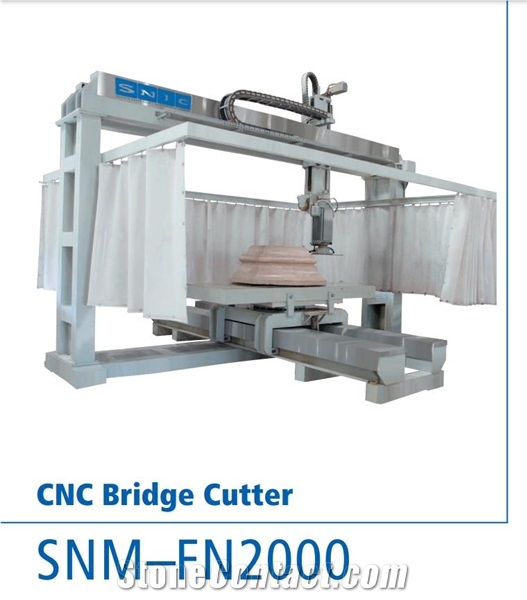

CNC Bridge Cutter SNM-FN2000 Stone Carving, Engraving Machine

Name: CNC Bridge Cutter SNM-FN2000 Stone Carving, Engraving Machine
Brand: S.N.I.C.- Societe Nahas Pour L'industrie Et Le Commerce
SKU: 5446
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine

Usage: Marble, Limestone, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting

Supplier

S.N.I.C.- Societe Nahas Pour L'industrie Et Le Commerce

SNIC

Lebanon

Eatablished :Jan 01,1962

Main Product:

Stone Machinery, Cutting Machines, Polishing Machines|

Contact supplier

Start Order

You may also like

Numerical Control Copying Machine

Stone Engraving CNC Router Stone Carving Machine

High-Speed Stone CNC Engraving Machine

3 Axis CNC Carving Machine, Countertop Milling Polishing Machine

Multi Head Stone CNC Machine 3D Stone Carving Machine With 4 Spindles

Product Detail
Company Profile

Overview

Machinery Function Features

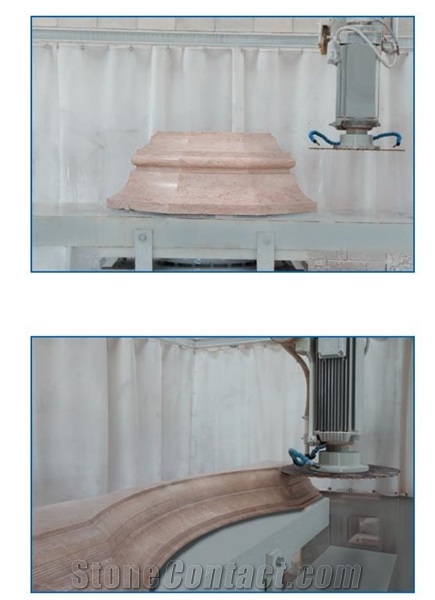

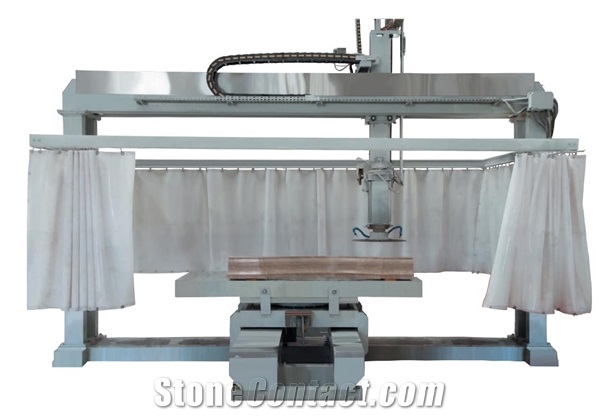

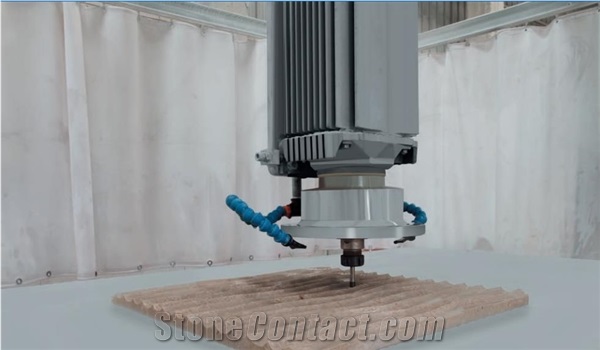

Machine characteristics: The SNM-FN2000 CNC bridge cutter is a high quality, technically advanced 3 axis CNC machine at a reasonable price. General Characteristics: SNM-FN2000 is fast, and easy to program for marble, granite and stone. It is capable of carrying various types of jobs using either disks or tools.It shapes, carves, engraves, cuts and drills. It is the ideal machine for making large door arches, profiling edges and carving fireplaces. The 3 interpolated axis motion is done by brushless motors coupled with extremely precise reducedbacklash reduction gears. The table and bridge sliding devices are working in an oil bath to reduce friction and are protected by stainless steel covers. The table moves with a high precision rectified ball screw. The manual switching from a cutting disk to a bit tool is quick and easy. Unscrew the disk, remove the cone cover, install the cone and start. Manual head inclination 0° or 90° . Manual turning table 0° , 90° , 180° and 360° . The CNC: The SNM-FN2000 CNC bridge cutter is equipped with the latest CNC with the following features: 3 interpolated axis control + 1 controlled spindle 1 Hand-wheel directly connectable to the operator panel 2 overrides (feed and spindle rotation) Man / Machine interface, which has been developed in a Microsoft Windows environment, is extremely user-friendly and intuitive. The different functions available can be selected by using soft keys that are associated with toolbar icons depending on the operational context

Technical Data

Parameters	Unit	SNM-FN2000
Machine overall height	mm	4300
Max. loading weight	Kg	10000
Min. Air pressure	bar	6
Machine overall width	mm	5700
Z axis stroke	mm	900/700
Main spindle motor power	hp	25
Spindle motor cone size		ISO 40
Total power	kw	25
Water consumption	L/min	35
Main spindle speed	r/min	0-800
X axis stroke	mm	3800
Work table dim.(LxWxH)	mm	3000x1800
Y axis stroke	mm	3200
Machine overall length	mm	5500
Approx. Weight	Kg	7500

Software

Alphacam is one of the leading and most established suppliers of CAD/CAM software for the stone industry. The Alphastone modules have been specifically developed to address the unique challenges encountered when machining marble and stone.AlphaStone gives the user the ability to define any type of cutting tool, from disk cutters with programmable guards to ball end and user defined form tools. Alphacam automatically calculates the programming point of each tool from the material contact point.2.5D and 3D profiles can be quickly and efficiently roughed using disk cutters, taking into account any stock material. This is particularly useful when roughing wash basin and bath tub shaped features.Disk cutters can be used in any orientation to finish sculptured 3 dimensional surfaces.The marble module has the ability to import bitmap format art work and convert these images into 3 dimensional machining moves.STL files can also be imported and machined, making links to 3 dimensional laser scanners easy.There is full core drill support for both 2 and 3 dimensional material removal and depths of cut are automatically detected as well as tool path depth limitations.

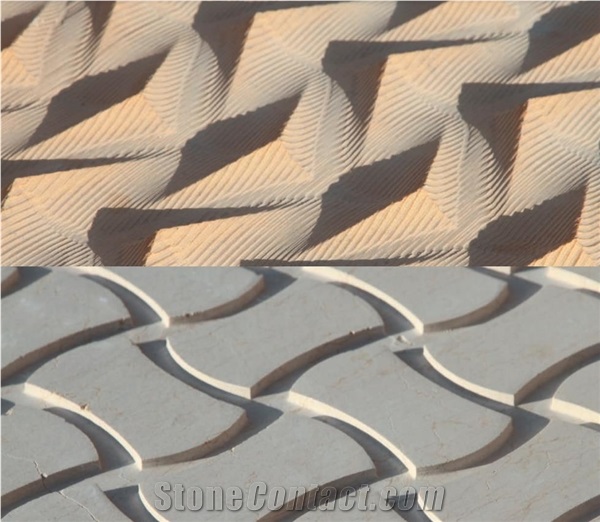

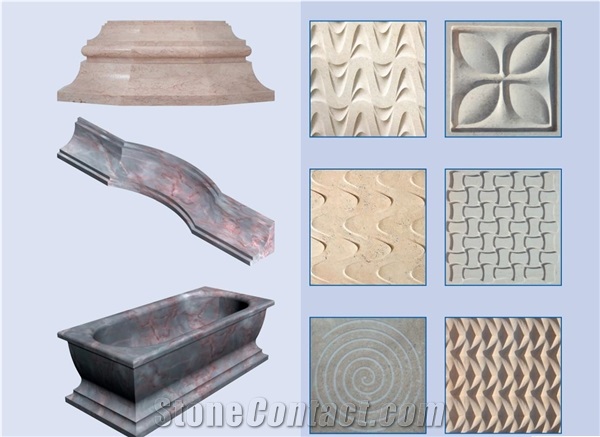

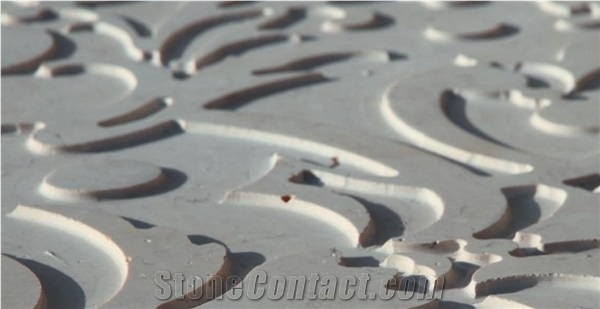

Processed Stone Photos
