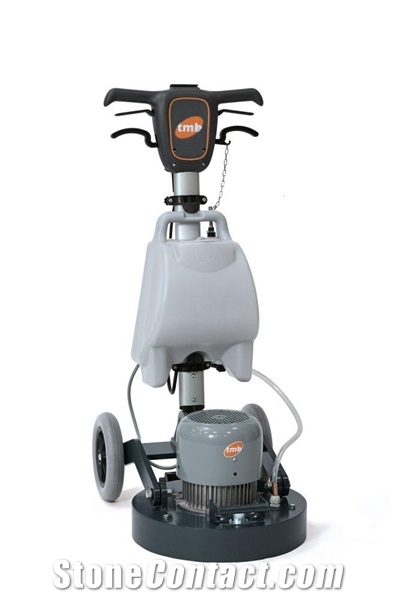

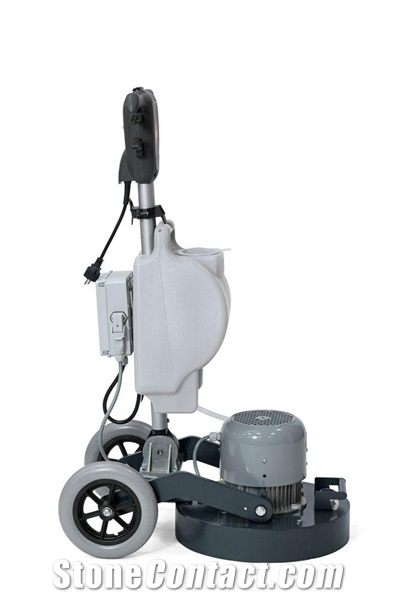

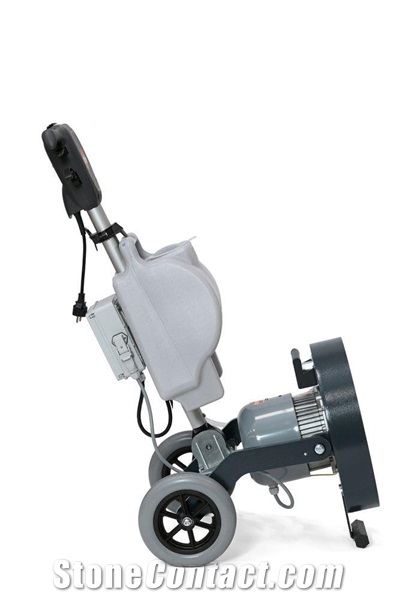

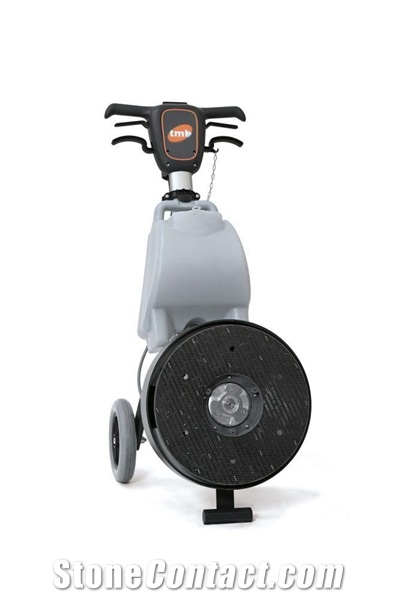

TG 43 4HP - TG 50 4HP Floor Grinding Machine
FOB Price:
Type:
Stone Maintenance MachinesFloor Grinding, Polishing Machine
Usage:
Granite, Marble, Artificial Stone, Quartzite, Sandstone, Travertine
After-Sale
Warranty:6 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Jan 01,1980
Main Product:
Cleaning Equipment, Floor Grinding|
Machinery Function Features
-TG 43 4HP:
TG43 4HP makes floor grinding and polishing simple, quick and economical.

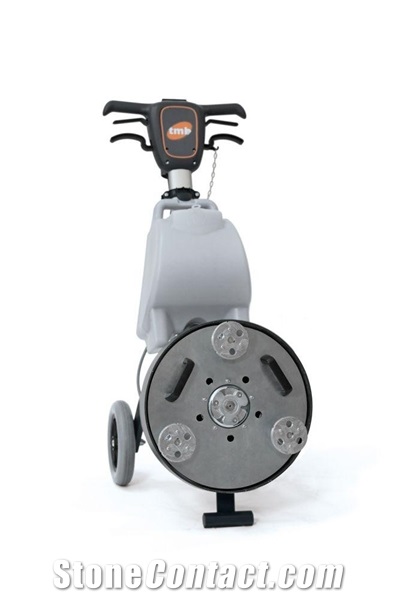

The planetary system with 3 or 4 discs of 100mm diameter each, is designed for grinding, polishing, sanding and prepping all types of floor such as marble, granite, stoneware, terrazzo, cement, wood and parquet, agglomerate, composite, terracotta, concrete, natural stone, and industrial floors.
The base frame equipped with 250mm wheels facilitates easy maneuvering in any direction, and perfect functioning even in small spaces such as bathrooms, landings, kitchens.
-TG 50 4HP:
TG50 4HP makes floor grinding and polishing simple, quick and economical.
The planetary system with 3 or 4 discs of 140mm diameter each is designed for grinding, polishing, sanding and prepping all types of floor such as marble, granite, stoneware, terrazzo, cement, wood and parquet, agglomerate, composite, terracotta, concrete, natural stone, and industrial floors.
The base frame equipped with 300mm wheels facilitates easy maneuvering in any direction.
TG50 4HP is ideal for larger spaces and industrial floors.
Technical Data
Parameters |
Unit |
TG43 4HP |
TG50 4HP |
Motor rpm |
rpm |
135 |
135 |
Grinding width |
mm |
450 |
500 |
Planetary with discs rpm |
rpm |
780 |
780 |
Approx. Weight |
Kg |
81 |
100 |
Non-sleep wheels |
mm |
N/A |
Ø 300 |
Planetary weight |
kg |
12 (with discs nr. 3x100mm) |
12 (with discs nr. 3x140mm) |
Machine overall height |
mm |
111 |
114 |
Machine overall length |
mm |
70 |
75 |
Machine overall width |
mm |
47 |
51 |
Motor power |
w |
2100/2900 |
2100/2900 |
Rated voltage/current |
V/A |
220-230V ; 50/60Hz |
220-230V ; 50/60Hz |
