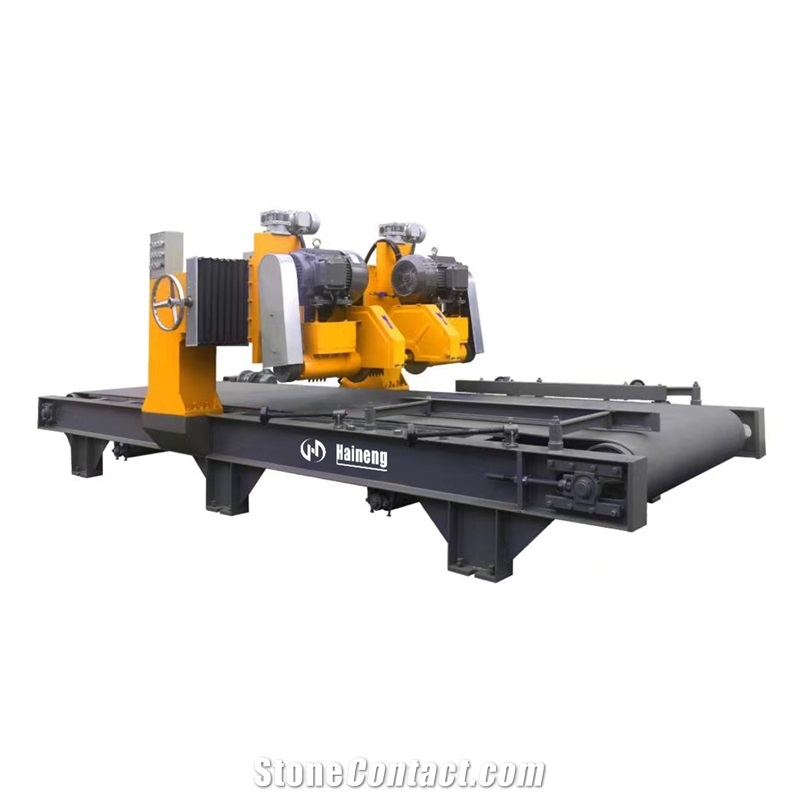

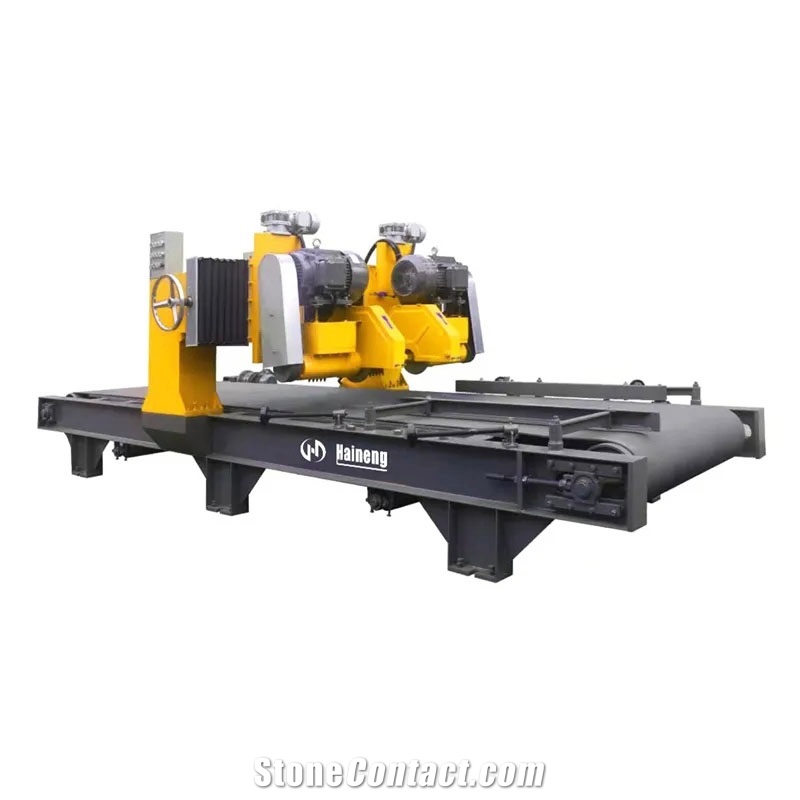

Double Blades Cutter- Multi-Blade Cross-Cutter,Trimming Machine
FOB Price:$9500-10000
Type:
Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
This machine adopts portal double column structure, oil-immersed track, horizontal electric frequency conversion cutting, vertical double saw blade manual feeding fixed length, processing width 200mm-1050mm, processing length 3000mm, lifting electric, double saw blade, electric appliance adopts machine integrated design, The structure of the whole machine is reasonable and the performance is stable. It is an ideal equipment for processing stone slabs. (At the same time, the conveyor belt workbench can be selected)
Technical Data
Parameters |
Unit |
AYH |
Total power |
kw |
23.85 |
Machine height (H) |
mm |
1600 |
Up-down motor power |
kw |
0.55kw (2 motor) |
Machine length (L) |
mm |
5000 |
Max. cutting length |
mm |
3000 |
Max. cutting width |
mm |
200-1050 |
Discs diameter |
mm |
350-600 |
Machine width (W) |
mm |
2390 |
Power of main motor |
kw |
11kw (2 motor) |
Approximate weight |
Kg |
3015 |

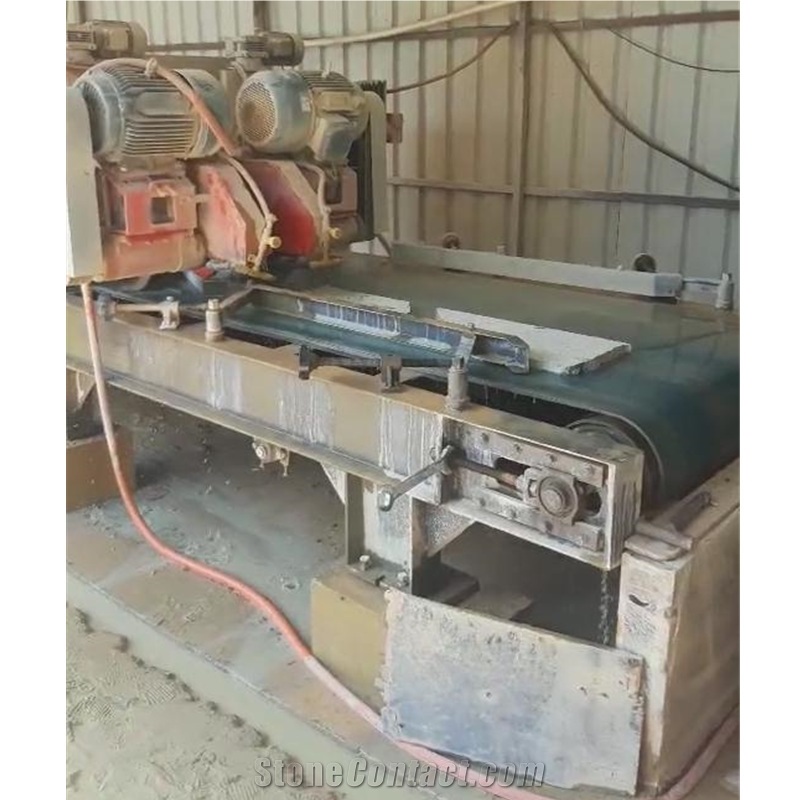

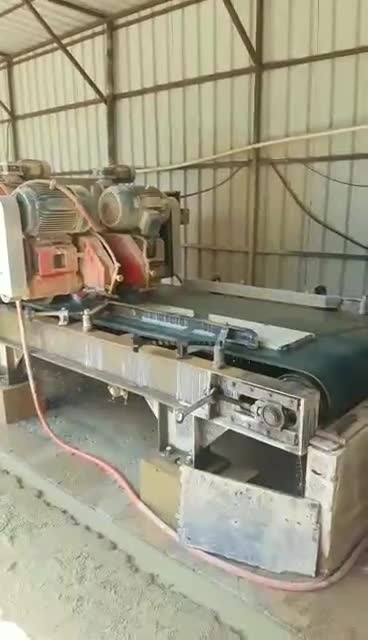

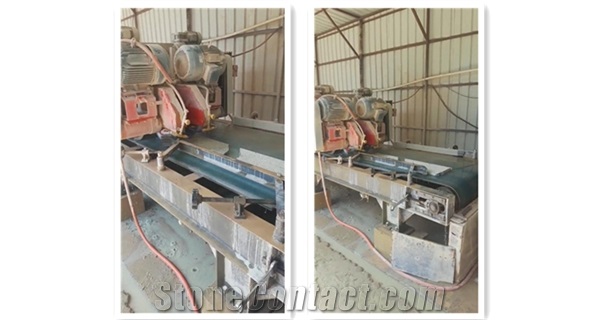

Processed Stone Photos
Components
-

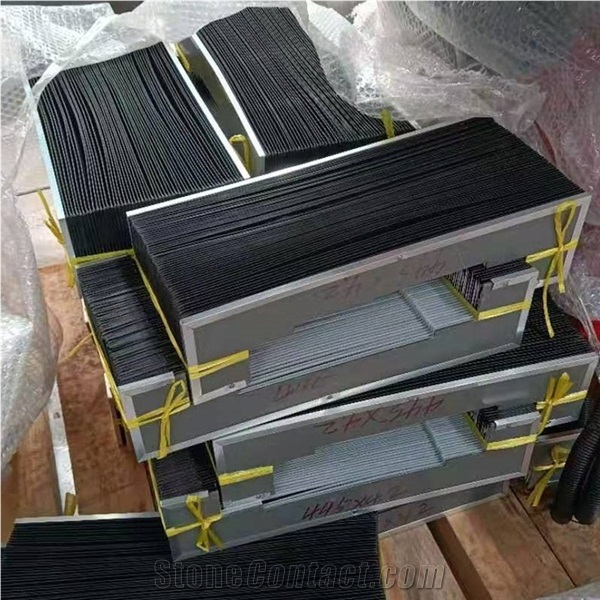

Crossbeam dust cover
¥Payment Required
Consumables
-
saw blade
350-600
Video
Install Video
Operation Video
