Portal Efficient Multiple Stone Cutting Machine
FOB Price:$21000-23400
Type:
Stone Factory MachinesStone Slab Cutting MachinesMulti Blade Automatic Slab Cutting Line
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
15 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Machinery Function Features

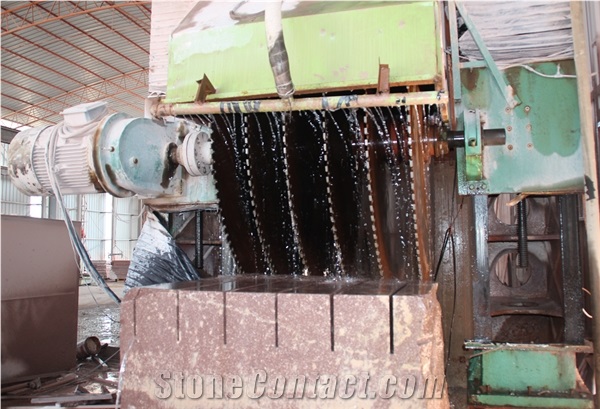

This machine is mainly used for processing large quantities of standard stone materials. It is the most ideal stone machine tool for cutting block stone and pavement stone with different thickness of saw blade partition plate.
This machine adopts multi-chip stone cutting machine adopts gantry structure and split structure,users only need to choose different structure models flexibly according to their own site conditions, the machine action is controlled by electric control box, high degree of automation, stable overall processing performance, high precision, high efficiency, low energy consumption characteristics,deeply favored by users.
Technical Data
Parameters |
Unit |

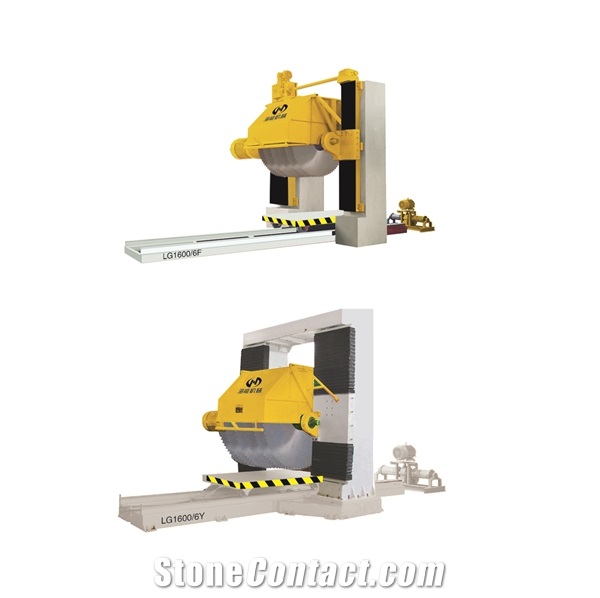

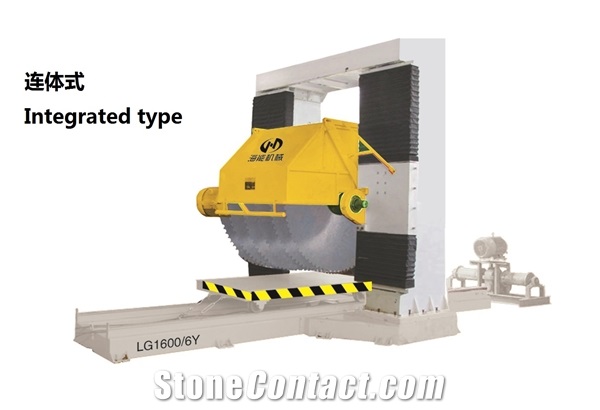

LG1600/6Y(Integrated type) |

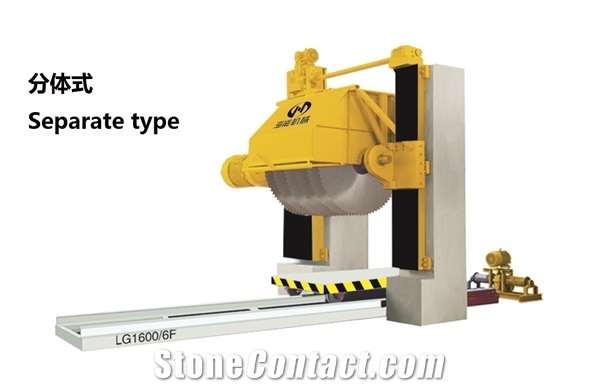

LG1600/6F(Separate type) |
Main motor power |
kw |
45 |
45 |
Overall machine height |
mm |
3050 |
3050 |
Max.cutting thickness |
mm |
630 |
630 |
Overall machine length |
mm |
8000 |
8000 |
Max.cutting length |
mm |
2000 |
2000 |
Blade diameter |
mm |
1400-1600 |
1400-1600 |
Gross power |
kw |
48.9 |
48.9 |
Exhausted water |
m³/h |
5.2 |
5.2 |
Max.cutting width |
mm |
1100 |
1100 |
Machine weight |
Kg |
7600 |
3600 |
Overall machine width |
mm |
2900 |
2900 |
