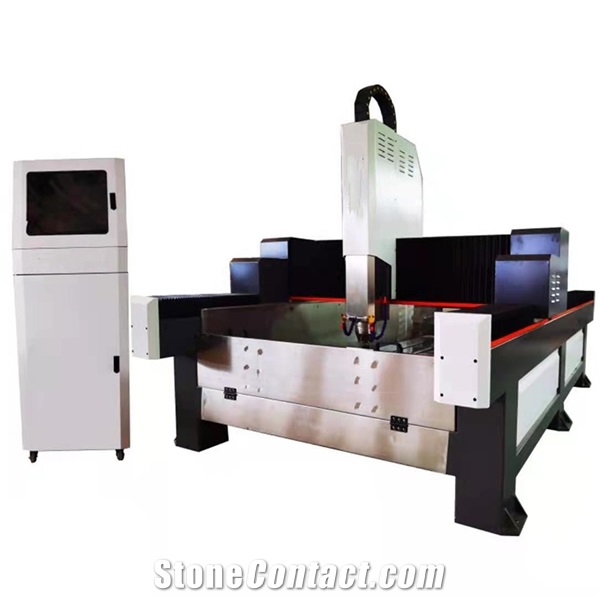

Single Head Stone CNC Router Stone Carving, Engraving Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Dec 09,2003
Main Product:
CNC Machines, Stone Carving Machines|
Machinery Function Features
Advantages of our stone cnc router:
1. Heavy duty frame, machine weight is about 2200kgs
2.machine frame is processed by high precision cnc milling center, some other supplier use double housing planer，there is precision difference between planer and milling center
3. Our spindle is R&D professional spindle for stone engraving and carving, better dust-proof and water proof. Normal spindle don't have dust-proof and water proof function
4. Other parts all use the one that suitable for stone carving best such as heavy resistance, water-proof, and dust proof
Technical Data
Parameters |
Unit |
Single Head Stone CNC Router |
Max. traveling speed |
mm/min |
25000 |
X,Y ,Z Structure |
XY gear wheel, Z ball screw. All Axis use Square Guide |
|
Machine frame type |
Heavy duty I frame, can bear 5000kgs weight stone |
|
Control System |
DSP |
|
Approx. Weight |
Kg |
2200 |
Inverter power |
kW |
5.5 |
Electricity-Voltage |
V/Hz |
3PH AC380V/50Hz |
Lubricating system |
manual |
|
Control cabinet |
Independent cabinet |
|
Y axis stroke |
mm |
2500 |
Main spindle motor power |
kw |
5.5 (water cooled spindle) |
Max. working speed |
mm/min |
15000 |
Drive Motor type |
Stepper driving |
|
Working table type |
T-slot table |
|
Main spindle speed |
r/min |
0-24000 |
Command |
G-code*.u00*.mmg*.plt |
|
Guide rail |
25 SIZE SQUARE RAIL |
|
Repeated positioning/Ball screw precision |
mm |
±0.05 |
Traveling Positioning Accuracy |
mm |
±0.05 |
X axis stroke |
mm |
1300 |
Z axis stroke |
mm |
450 |
