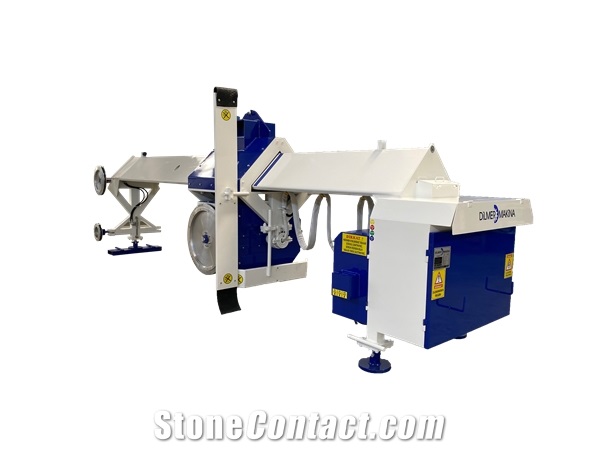

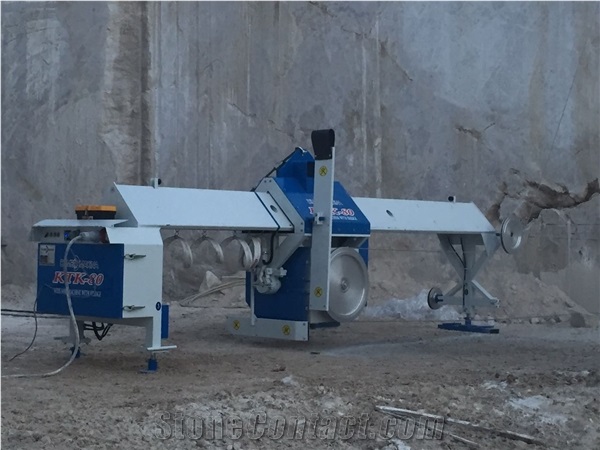

KTK80 Bridge Type Quarry Wire Saw
FOB Price:
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Marble, Limestone, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Feb 19,2007
Main Product:
Machine, Quarry, Quarrymachine, Marble, Marblequarrymachine, Export|
Machinery Function Features
Main engine power 55 kW 1000 rpm
Travel motor 0.75 kW 1400 rpm
Slewing motor 0.75 kW 1400rpm
Hydraulic motor 2.2 kW 1400 rpm
Machine control Wired remote control
Electrical equipment 380 v 3 phase star delta
Pulley diameter 800 mm
Installation Operated hydraulic feet
Cutting capacity 14-22 m2 per hour (depending on the hardness of the marble)
Wire capacity 70-130 meters
Width / height / height. 1250x6520x2190 mm
Weight 3300 kg
Auxiliary pulleys (500mm)-(300mm)
Cutting method 3-way cutting method
WITH MOBILE MOTOR OPTION
Technical Data
Parameters |
Unit |
KTK80 |
Feed Motors Power |
kw |
0.75 |
Guide Pulley Diameter |
mm |
800 |
Wire capacity length |
mt |
70-130 |
Slewing motor speed |
rpm |
1400 |
Slewing motor power |
kw |
0.75 |
Power Supply |
V/Hz |
380V/ 3ph star delta |
Main Pulley Revolutions |
r/min |
1000 |
Auxiliary pulleys |
mm |
500mm-300mm |
Dimension LxWxH |
mm |
6520x1250x2190 |
Main Motor Power |
kw |
55 |
Power of Hydraulic Unit Motor |
kw |
2.2 |
Cutting Efficiency |
m2/h |
14-22 (depending on the hardness of the marble) |
Travel motor speed |
rpm |
1400 |
Hydraulic motor speed |
rpm |
1400 |
Total Weight |
Kg |
3300 |
