ANY-M16 Stone CNC Working Center
FOB Price:$26000-27000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
Application equipment: High-performance drilling, cutting, edging and polishing equipment developed for the sintering slab countertops, quartz countertops, and marble tabletop processing industries.
Equipment function: stone slab opening, edging, special-shaped processing; table European-style edge special-shaped edging, rear round bottom, table overflow tank, countertop under-counter basin, countertop basin opening, special-shaped island, bathroom cabinet, dining table, TV cabinet , coffee table top.
Technical Data
Parameters |
Unit |
ANY-M16 |
Control system |
M16 Export Edition |
|
Motor speed |
rpm/min |
3000-8000 |
Frequency conversion type |
Customized Vector Frequency Converter |
|
Control cabinet |
Independent cabinet |
|
Size height of Exercise itinerary |
mm |
300 |
Airway velocity parameters |
mm/min |
20000 |
Size Length of Exercise itinerary |
mm |
1300 |
Tool Change Type |
Waterproof design of 16 knife storehouse |
|
Operating Voltage Parameters |
v |
AC380 |
Machining speed parameters |
mm/min |
1000-6000 |
Driver type |
Customized Servo System |
|
Total power |
7 |
15 |
Machine overall length |
mm |
2600 |
Size width of Exercise itinerary |
mm |
3000 |
Machine overall width |
mm |
5200 |
Fixed mode |
Vacuum chuck |
|
Motor |
Customized 7.5KW Tool Changer Spindle |
|
Machine overall height |
mm |
1800 |

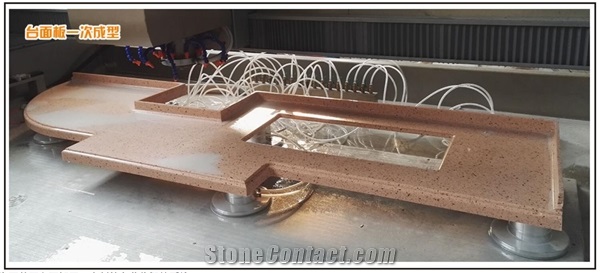

Processed Stone Photos
Components
-

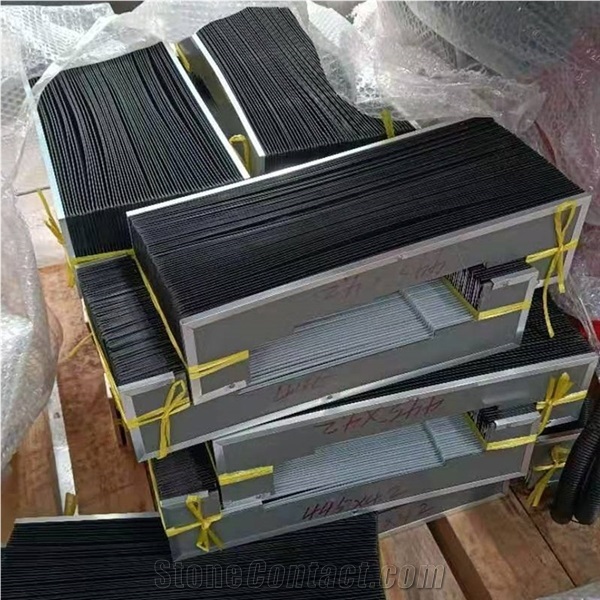

dust cover
¥Payment Required
Consumables
-

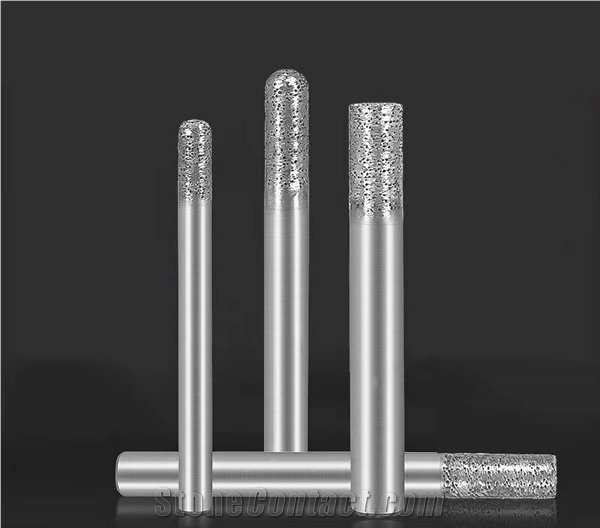

milling cutter
