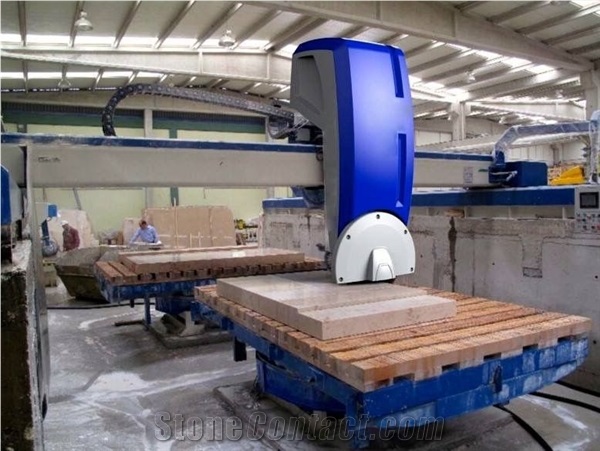

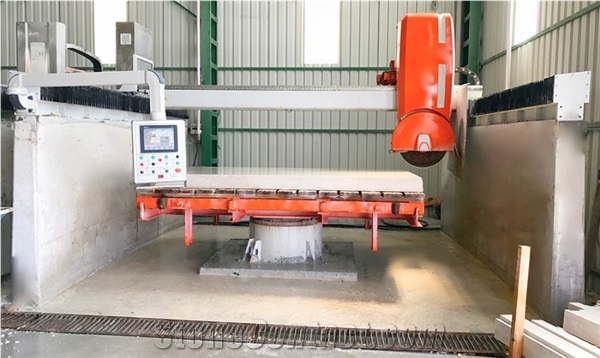

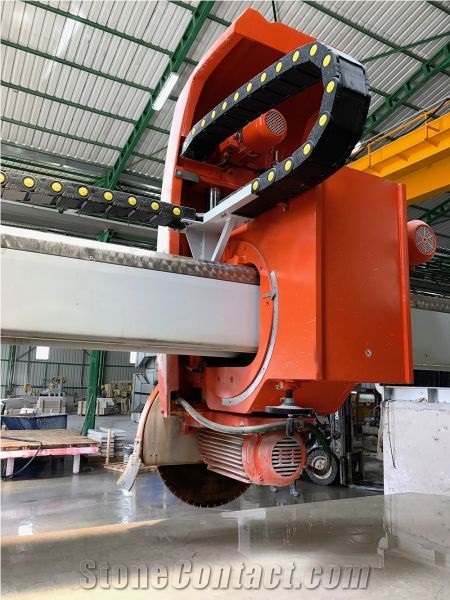

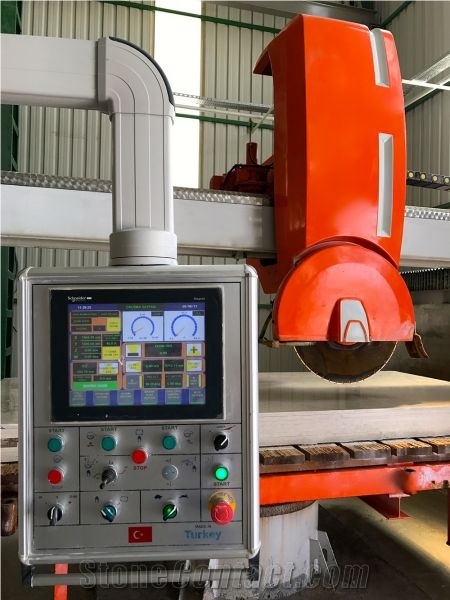

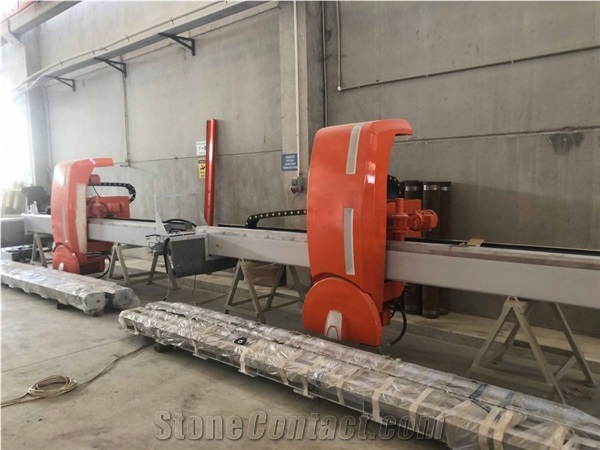

BRX 3000 Bridge Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 01,1982
Machinery Function Features
Cutting stroke of the blade 3600 mm
Maximum vertical travel of the blade 400 mm
Maximum bridge movement on y axis 4300 mm
Maximum blade diameter 800 mm
Blade hole diameter 60 mm
Table dimensions 1720 x 3500 mm
Power of the blade motor 22 kW
Maximum cutting thickness 250 mm
Total installed power 29 kW
Adjustable blade speed of travel 0-24 m/min
Weight 4500 kg
Technical Data
Parameters |
Unit |
BRX 3000 |
Dimensions of the work table(L×W) |
mm |
1720 x 3500 |
Disc motor power |
kw |
22 |
Disc diameter |
mm |
800 max. |
Blade hole diameter |
mm |
60 |
Head raising/lowering stroke(Z axis travel) |
mm |
400 |
Bridge transversal stroke(Y axis travel) |
mm |
4300 |
Approximate weight without table |
Kg |
4500 |
Max. workable thickness |
mm |
250 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
0-24 |
Z-axis working travel vertical cutting spindles |
mm |
3600 |
Installed electrical power |
kw |
29 |
