Anchor Hole Machine Drilling Tool For Ventilated Facades
FOB Price:$5500-7000
Type:
Stone Factory MachinesStone Handling, Loading MachinesStone Tools Machinery
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3-10 Days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Port:
Xiamen Port- China
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Payment :
Supplier
Eatablished :May 01,2010
Main Product:
Undercut Anchors, Aluminium Brackets, Stainless Steel Brackets, Stone Fixing Systems, Drill Bits, Drill Machines|
Machinery Function Features

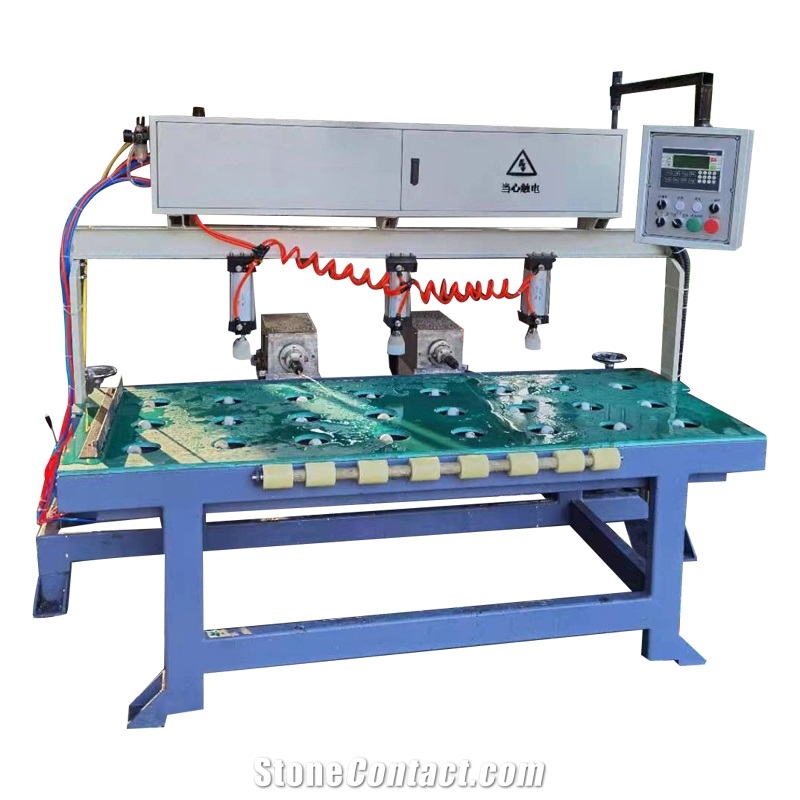

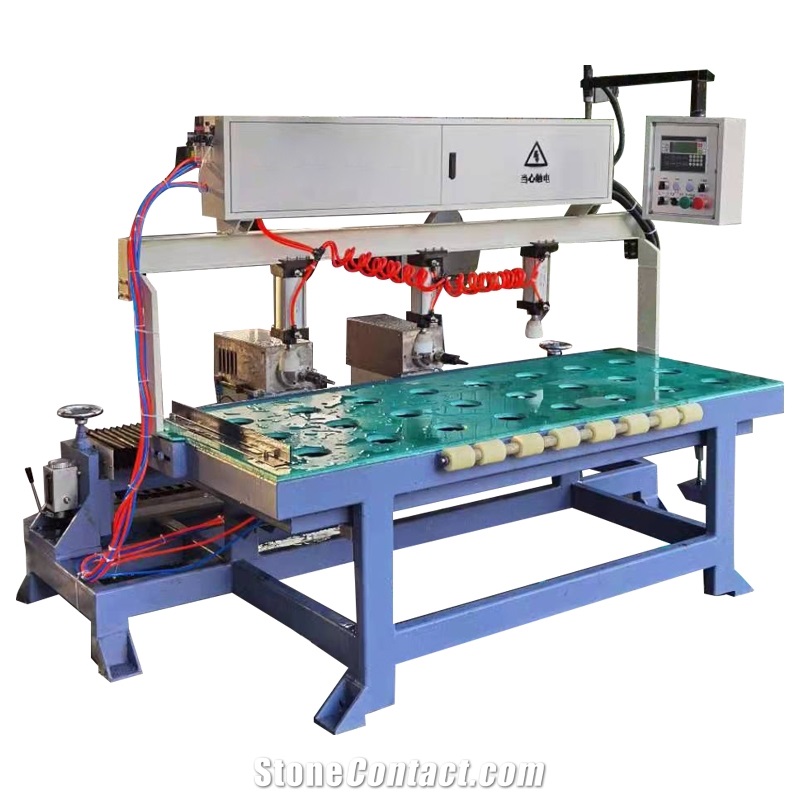

Anchor Hole Machine Drilling Tool For Ventilated Facades
Main application: This horizontal drilling machine is suitable for PC side drilling holes for stainless steel dowel pin anchors in various kinds of stone panels, such as marble, granite, sandstone, travertine, basalt, limestone, quartzite, artifical stone, high-density cement panels...etc. The main accessories are originally imported, manual control of advance and retreat, high-speed spindle drilling, and automatic control of drilling depth.
Equipment Technical Parameters:
Maximum package size: 1700*1850*2600 (mm)
Maximum vertical size: unlimited
Anchor hole drilling diameter: M5 - M50, can be customized.
Anchor hole drilling depth: 50mm.
Technical Data
Parameters |
Unit |
VTDM |
Drilling Diameter |
mm |
5-50 |
Machine overall length |
mm |
1600 |
Main motor power |
kw |
1.1 |
Machine overall width |
mm |
1750 |
Drilling Depth |
mm |
50 |
E;ectric Voltage |
V |
380 |
Machine overall height |
mm |
2500 |
Approx. Weight |
Kg |
900 |
Double Head Size |
mm |
Min 250 / Max 1500 |
Revolutions |
r/min |
2800 |

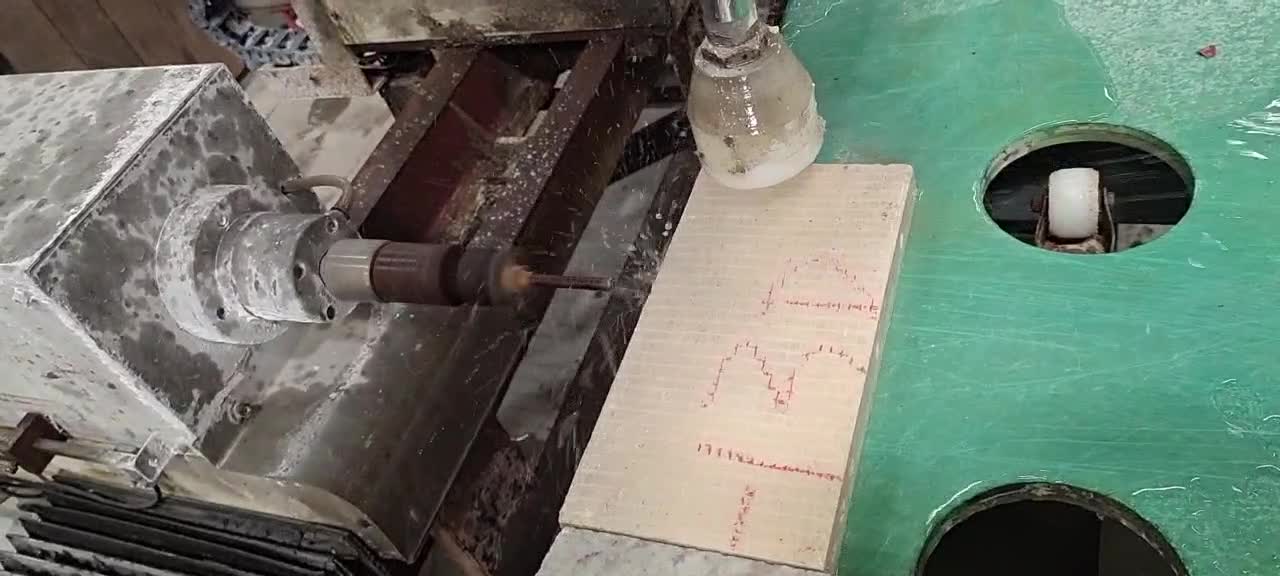

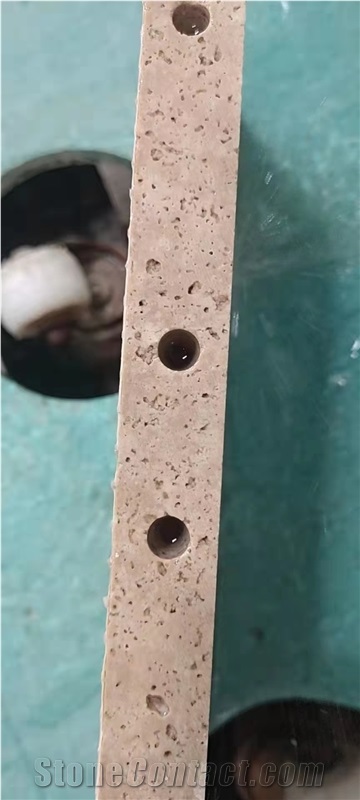

Processed Stone Photos
Components
-

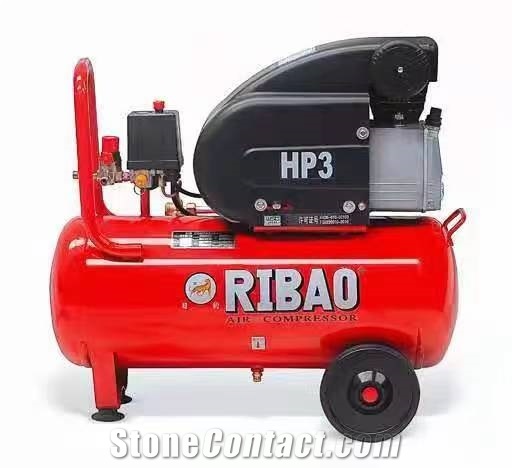

Air Compressor
-

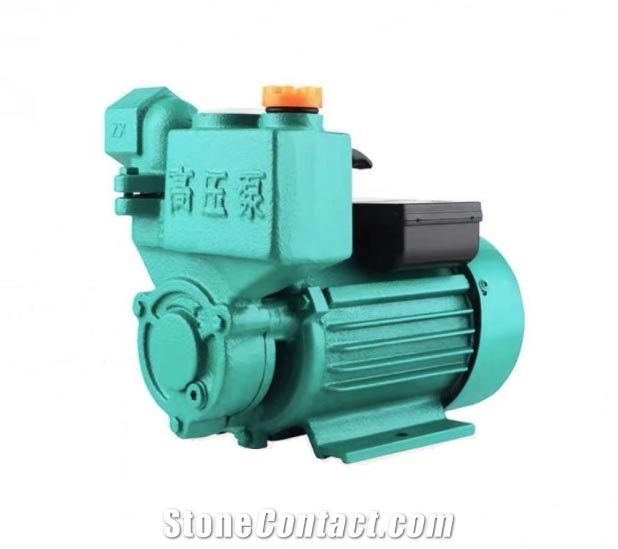

Water Pump
Consumables
-

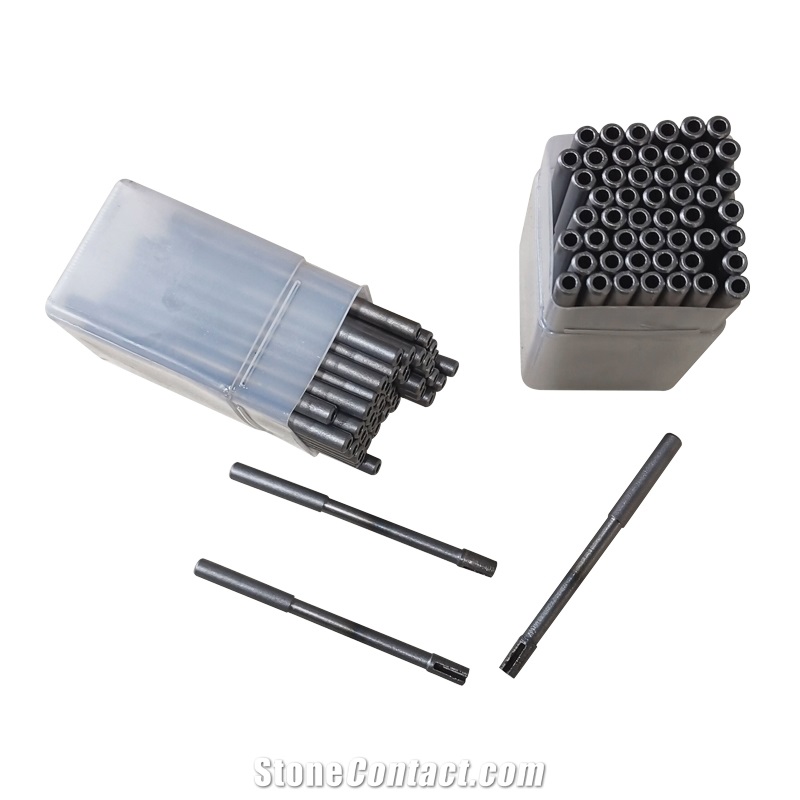

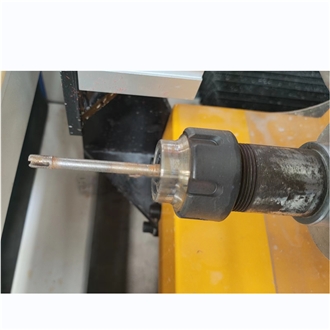

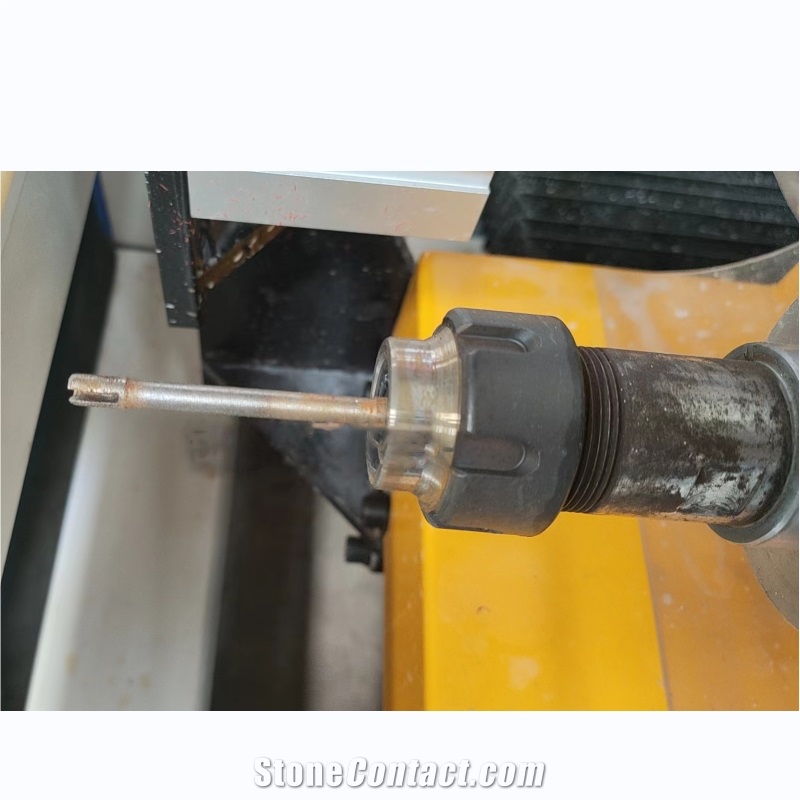

Drill Bit
Need to be replaced with consumption
