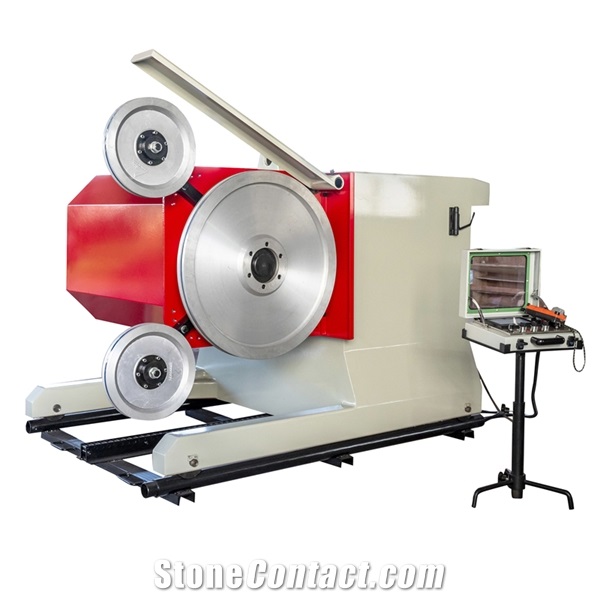

37KW 55KW 75KW Stone Quarry Wire Saw Machine

FOB Price:$15000-25000

Type: Stone Quarry MachinesQuarry Wire Saw Machine
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 10 days for normal orders
Warranty:12 Months
Install and Guarantee:Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Mar 06,2008

Main Product:

Wire Saw Machine , Mini Wire Saw , DTH Drill Rig , Diamond Wire , Diamond Blade , Diamond Tools|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
Machinery Function Features
37KW/55KW/75KW Electrical Controlled Wire Saw Machine for Natural Stone Quarrying( CE, SGS audited ) The major functions of the wire saw machine: 1. Variable wire speed range from 0-40M/S, allows to quarrying all kinds of stone material with different hardness and texture like marble, granite, sandstone etc. 2. Automatic constant tensioning system to keep the wire always in optimal working condition and furthest guarantee the cutting duration of diamond wire. 3. Angle adjustment range from 0-360 degree(electric auto), allows to horizontal, vertical and any direction cutting. 4. Horizontal extention system of flywheel shaft position range from 0-300mm(electric auto). 5. Quick Backward speed of machine without loading range from 0-300mm/Min 6. Separate control panel with feature of easy and safe manipulation for operator. 7. Safety stop in case of unexpected wire breakage or other faults.
Technical Data
Parameters
Unit
LQ-WSM-37KW/45KW/55KW/75KW
Wire Saw Speed
m/s
0-40
Total Weight
Kg
2.3T-3.3T
Main Motor Power
kw
37KW/45KW/55KW/75KW
Main Flywheel Diameter
mm
800/1000
Length of rails
mm
1968*3pcs
Max. Wire Length
m
20-150
Motor Flywheel Unit Rotation
°
360
Power Supply
V/Hz
380
Guide Pulley Diameter
mm
380

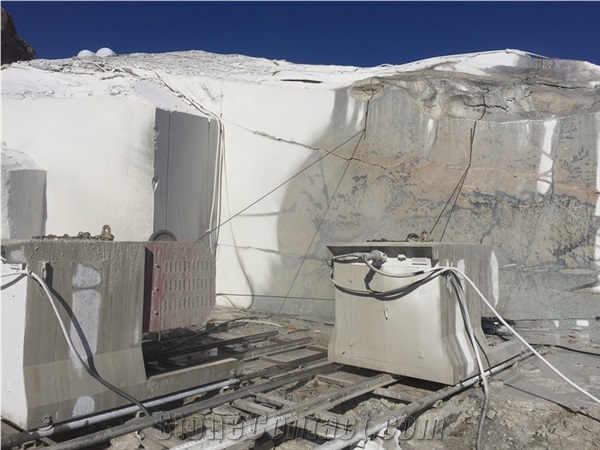

Work Example

Processed Stone Photos
  • African Red

    African Red

Components

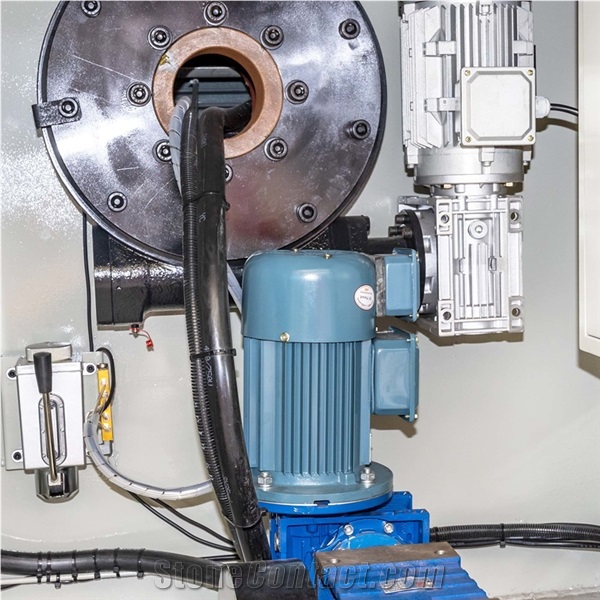

  • Motor

    Motor

Consumables

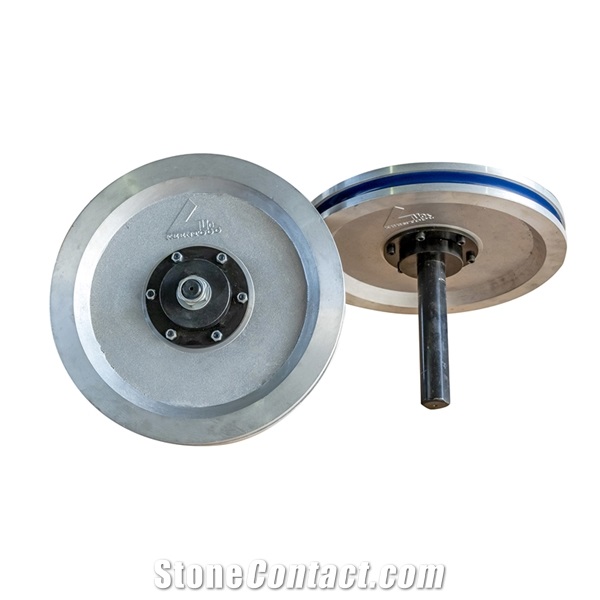

  • Guide pulley wheel

    Guide pulley wheel

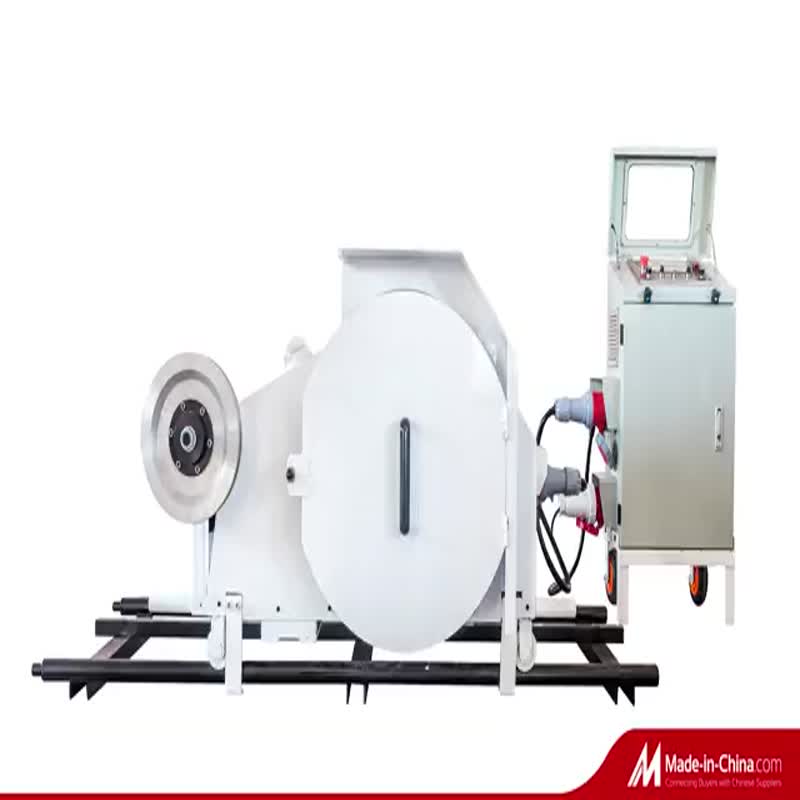

Video
