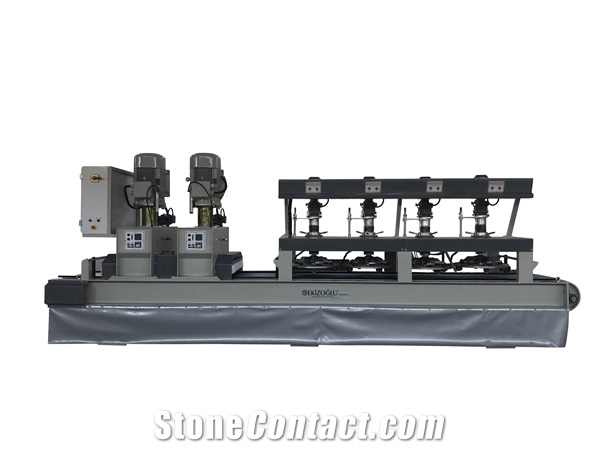

EM17 - 2+4 Calibrating & Bush Hammering Machine

FOB Price:

Type: Stone Factory MachinesStone Surface Processing Machines Bush Hammering Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: Optional
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Regular guidance & maintenance

Supplier

Ekizoglu Makina

Ekizoglu Makina
Ekizoglu

TurkeyTurkey idicon

Eatablished :Nov 29,1986

Main Product:

Makina, Ekizoglu, Marble Machines, Granite Machines, Basalt Machines, Ceramic Machines, Crushing Machines, Ekizoglu Makina|

Contact supplier

Start Order

You may also like
Automatic Bush Hammering Litchi Surface Stone Processing Machine
Automatic Bush Hammering Litchi Surface Stone Processing Machine
Automatic Bush Hammered Finishing Machine
Automatic Bush Hammered Finishing Machine
XL-6 Continuous Litchi Surface Machine
XL-6 Continuous Litchi Surface Machine
Bush Hammering Machine Auto Polish Litchi Surface
Bush Hammering Machine Auto Polish Litchi Surface
Automatic Bush Hammering Machine
Automatic Bush Hammering Machine
  • Overview
  • Components
Machinery Function Features
EM17 - 2+4 Calibrating and Bush-Hammered Machine • Belt Width: 700 mm • Number Of Calibrating Heads: 2 • Calibrating Motor Power: 22 kW • Calibrating Up–Down Motor Power: 0,55 kW • Diameter of Calibrating Disc Tray: 650 mm • Working Thickness: 10 – 80 mm • Diameter Of Bush Hammering Tray: 650 mm • Number Of Bush Hammering Heads: 4 • Bush Hammering Motor Power: 1,1 kW (126 Rpm) • Minimum Working Width: 300 mm • Maximum Working Width: 610 mm • Belt Motor Power: 0,75 kW • Belt Speed: 0 – 400 mm / min • Total Electric Power: 51 kW • Machine Dimensions ( W / L / H ): 1400 / 6000 / 2200 mm https://ekizoglumakina.com/en/product/calibrating-hammered-machine-em17
Technical Data
Parameters
Unit
EM13
Machine overall width
mm
1500
Machine overall height
mm
2200
Approx. Weight
Kg
4000
Min. processing thickness
mm
20
Machine overall length
mm
6000
Max. processing width
mm
630
Max. processing length
4
600
Processed Stone Photos
  • Bush Hammered

    Bush Hammered

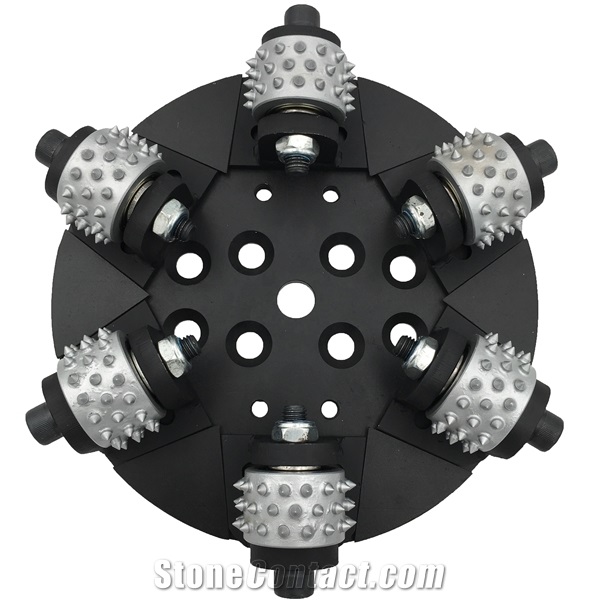

Components
  • Components

    ¥Payment Required
  • Components

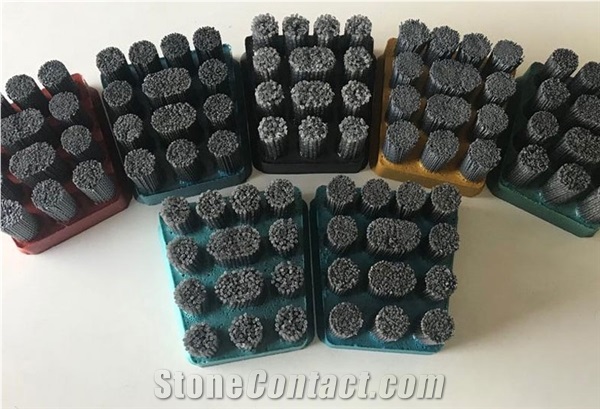

Consumables
