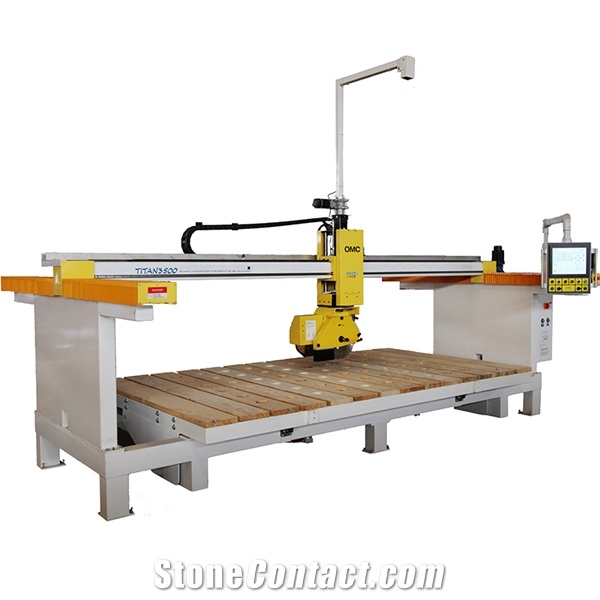

OSC-TITAN 5.5 Kw 5 Axis Stone Bridge Cutting Machine
FOB Price:$25000-25800
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
20days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 01,1996
Main Product:
Stone Cutting Machine, Stone Cutting Blade, Stone Table Saw, Polishing Machine|
Machinery Function Features

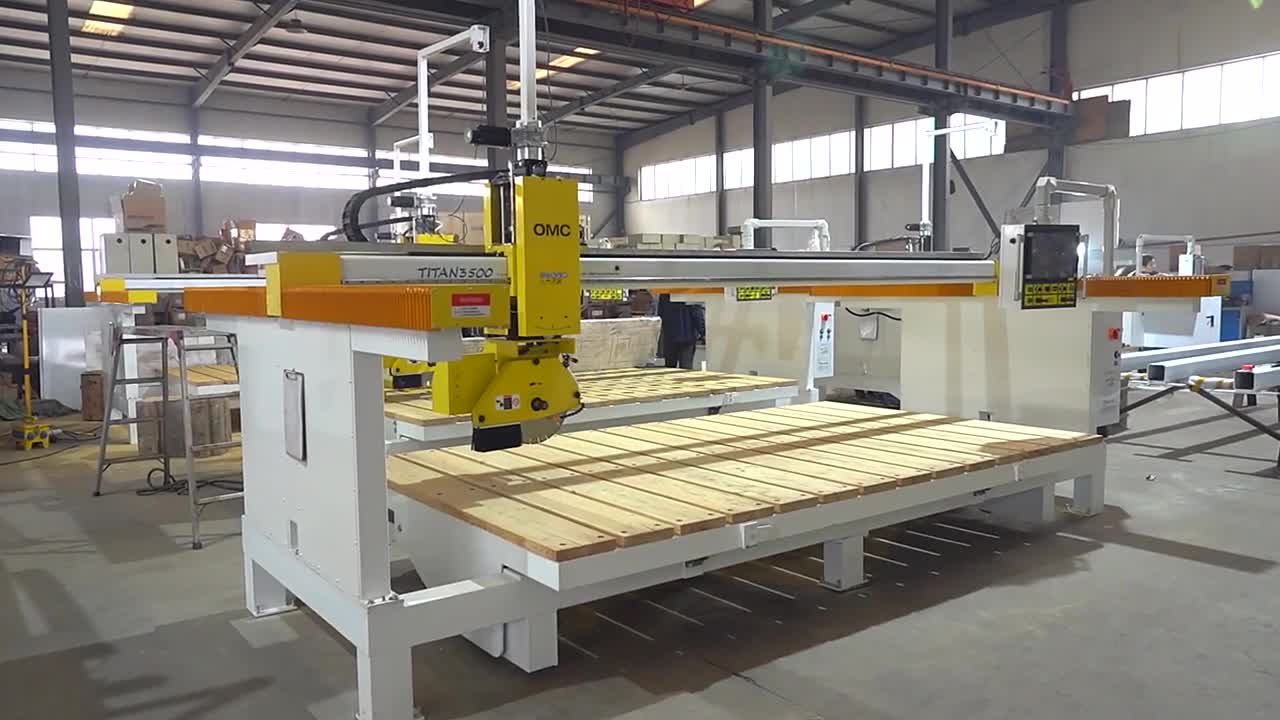

Titan 3500 is the new generation multi-function processing machine which is associated to be designed and manufactured between OMC and research institute of famous college. With pattern operation and advanced control system and synchronous CNC control system, the machine can be easily operated
easily without knowing complicated CNC knowledge.
This machine can be used to realize some advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to small processing factory and countertop shops.
Technical Data
Parameters |
Unit |
OSC-TITAN |
Hydraulic station motor power |
kw |
2 |
Machine height |
mm |
3300 |
Total power |
kw |
12 |
Max. working dimensions(L×W×H) |
mm |
3200*2000 |
Main motor power |
kw |
5.5 |
Z Axis Stroke |
mm |
260 |
Y axis Stroke |
mm |
2000 |
Cutter rotating angle |
° |
360 |
Head motor power |
kw |
2 |
Approximate weight without table |
Kg |
2000 |
Machine width |
mm |
2750 |
Worktable Weight |
Kg |
2200 |
Blade diameter |
mm |
350 |
Compressed air pressure |
bar |
20 |
Working table dimensions(L×W) |
mm |
3500*2000 |
Blade tilting angle |
° |
90 |
Working table tilting angle |
° |
85 |
Working table rotating angle |
° |
0 |
Crossbeam motor power |
kw |
5.5 |
Machine length |
mm |
5000 |
Max. thickness cutting capacity |
mm |
70 |
X Axis Stroke |
mm |
3500 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
45 |

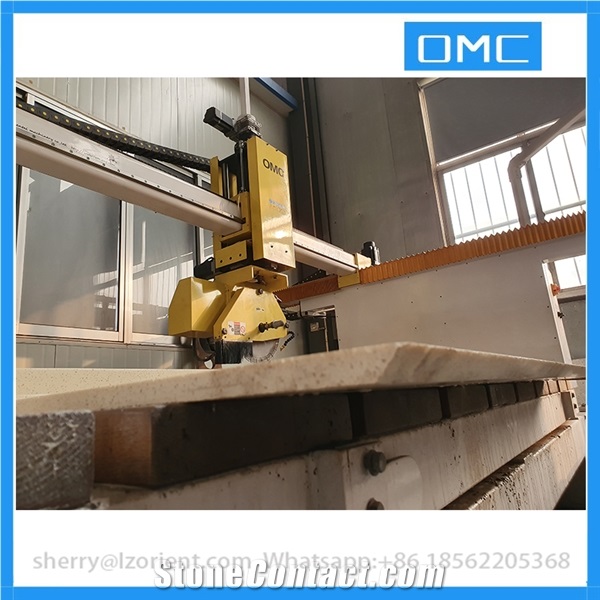

Work Example

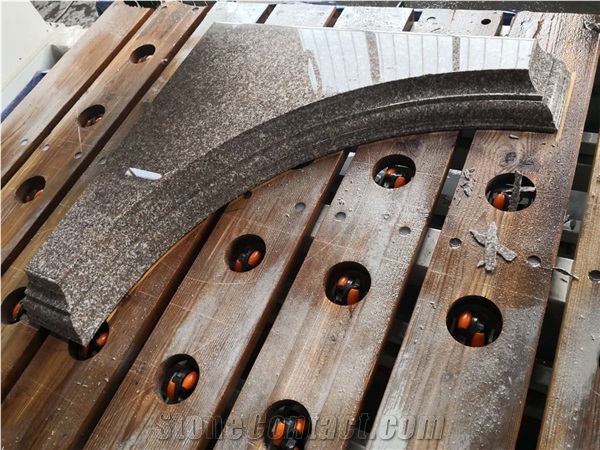

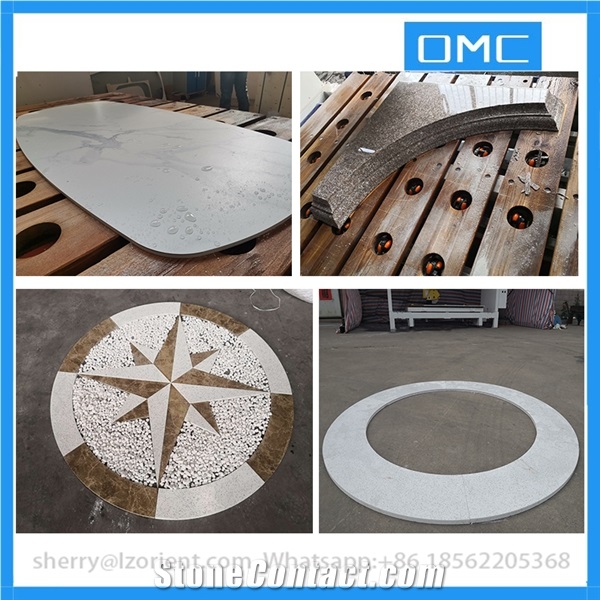

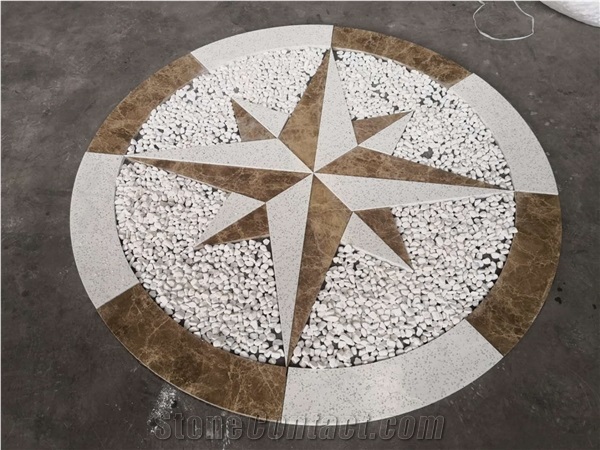

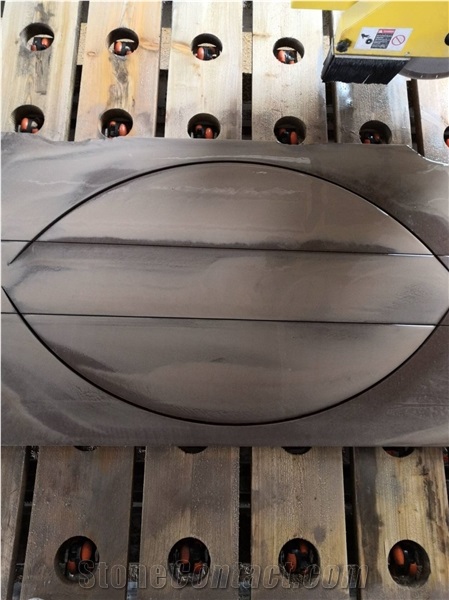

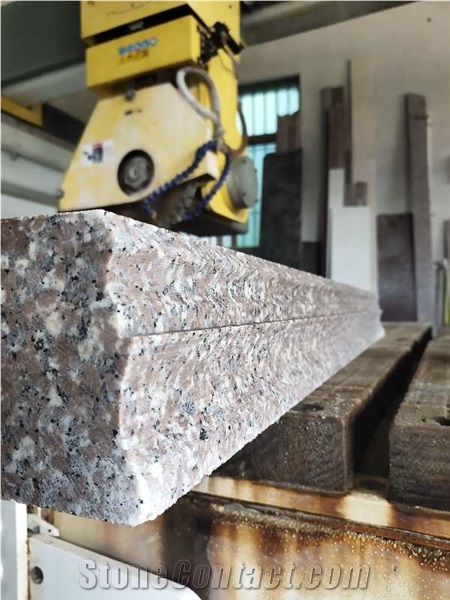

Processed Stone Photos
Components
-
Blade
¥Payment Required

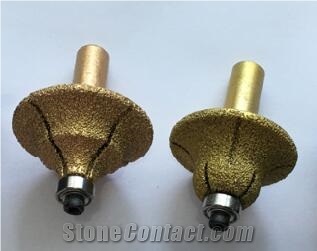

Consumables
-
Blade
-
Polishing wheel
-
