ZT-12/16/20 Engineered Quartz Stone Marble Granite Polishing Machine
FOB Price:$55000-115000
Type:
Artificial Stone MachinesArtificial Stone Polishing, Calibration Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Machinery Function Features

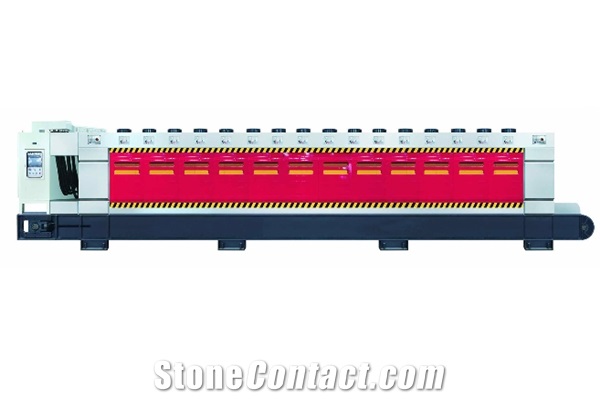

ZT12/16 Engineered Quartz Stone Marble Granite Polishing Machine
ZT-12/16/20, equipped with multiple resin disc heads and PLC control system, can grind and polish slabs continuously and automatically, is perfect for surface finishing of hard stone such as granite. Mounted with different type of heads, it’s also great for marble, quartzite and other stone slab finishing.
ZT-12/16/20 Heads marble granite stone polishing machine:
1) Using PLC electrical system and LCD screen menu offer intelligent control.
2) Processing width and working pressure of grinding heads can be adjusted freely .
3) Sensor at the entrance to scan the shape of the slabs in sequence and transmit the signal to controlling unit for precise working
4) Adopting central automatic lubrication system, having all moving parts and bearings to get a good lubricating effect and longer life.
5) Conveyor self-cleaning and stone chip removing system
Technical Data
Parameters |
Unit |
ZT |
Slabs max. processable width |
4 |
1000 |
Slabs max. processable length |
4 |
2500 |
Approx. Weight |
Kg |
10000 |
Machine overall height |
mm |
2300 |
Polishing plates diameter |
4 |
1000 |
Total installed electrical power |
7 |
181 |
Slabs max. processable thickness |
4 |
80 |
Conveyor system forward speed |
12 |
0-3.5 |
Machine overall width |
mm |
2100 |
Slabs min. processable thickness |
4 |
10 |
Cooling water requirement |
34 |
12 |
Machine overall length |
mm |
9800 |
Slab polishing speed |
17 |
0-3.5 |
