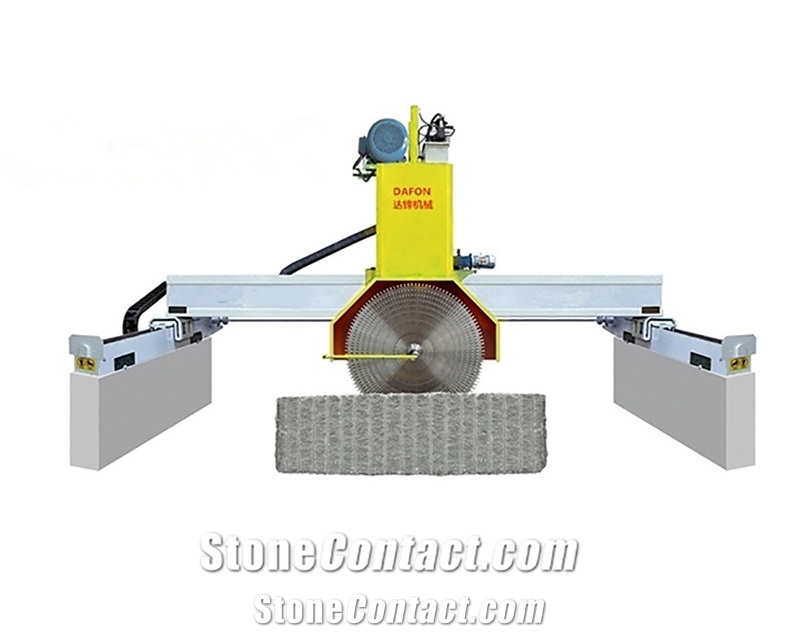

Multi-Blade Block Granite Marble Block Cutting Machine

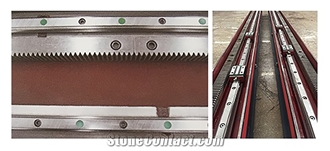

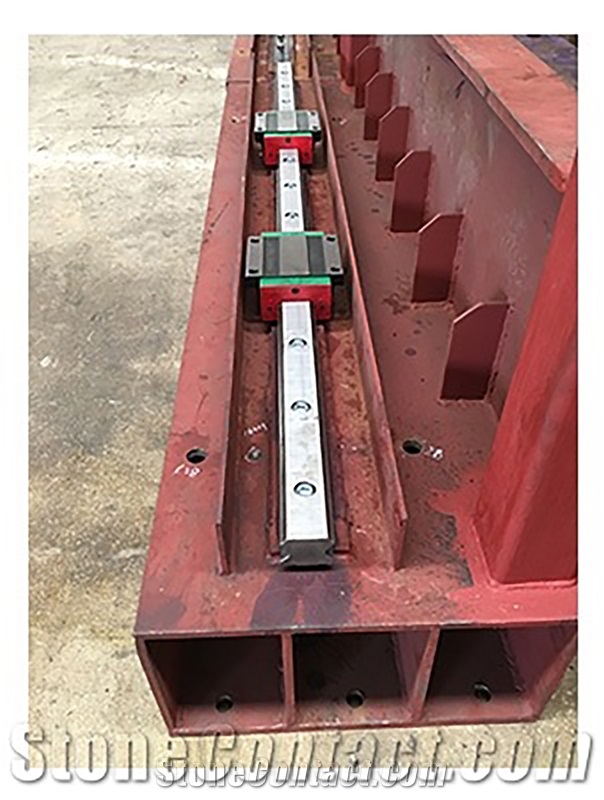

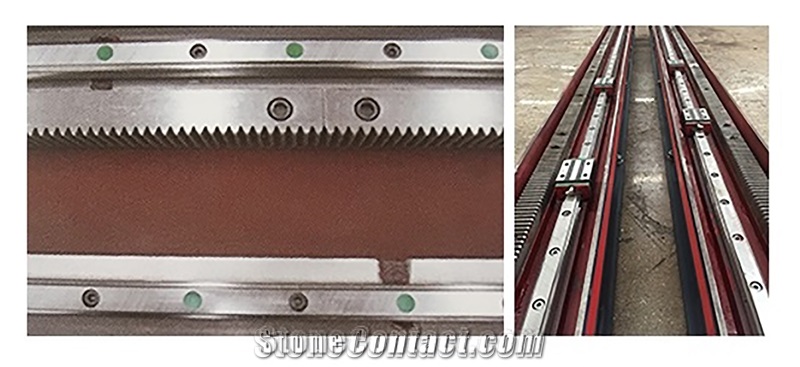

Technical parameters for block cutter： Technical data main motor power 37-55kw total motor power 40-48kw beam size 500*600*7500mm blade size 1600-2500mm max vertical stroke 1100mm max processing length 4000mm max processing width 2200mm water consumption 8.5m³/h machine size and weight 7800*4500*6500mm, 12T We provide customization products please contact our sales with detailed requirements, we will manufacture machines accordingly: Special customization size: Crossbeam length: 6500-10500mm Side beam length:4500-8000mm Features: The bridge cutting machine is mainly for granite and marble, it adopts multidisc and PLC programmable control and man-machine interface, combined with a super-precision rotary encoder for slicing, uses frequency converter to control left-right feeding and adjusts the speed according to the stone material. It adopts a hydraulic lifting system and forward-backward slicing adopts high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials. The block can be placed on the ground directly, saving the cost of trolley and maintenance. It is especially suitable for cutting high-value granite and marble block because of its high-efficiency cutting rate, high precision slicing, flatness, stability, and easy operation. Production process: 1. Customer need to prepare two sides foundation first withdrawing provided by us 2. Install machine and blades 3. Machine cut 4. take down the slab from blocks one by one, we can make a mold to support the slab, a machine can cut directly to the end and the slab will not fall apart 5. Trolley is optional according to customers’ requirement After-sales service We provide skilled and rich experience technicians for installation and after-sale service Machine details: Blade: two ways of blade combination 1. Big-medium-small combination 2. Big-small combination The Hi-win liner guide is optional as per the customer Packaging & Shipping The machine will be consolidated tightly and safely within the container and delivered by sea or railway, we offer fast delivery and prompt reaction.
