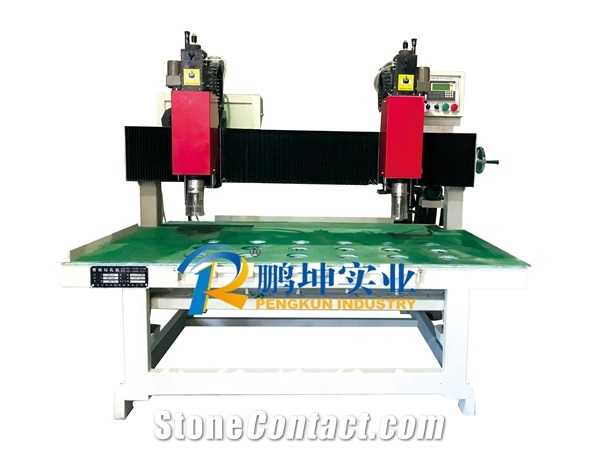

Stone Drilling, Slot Machine For Undercut Anchor
FOB Price:$6000-7000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
1 weeks
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
Eatablished :Jan 27,2010
Main Product:
Anchors, Angles, Brackets, Nuts, Drill Machine , Keels|
Machinery Function Features
The machine is a special drilling equipment for undercut anchor of stone;
The core parts of the machine are made of original imported parts;
pneumatic control double drill unit, pneumatic advance and retreat knife;
high accuracy,simple operation, high effiency.
Technical Data
Parameters |
Unit |
TKJ-02T |
Max. distance between 2 holes |
mm |
1650 |
Drilling Depth |
mm |
50 |
Drilling Diameter |
mm |
8 |
Total motor power |
kw |
3.42 |
Electric Voltage |
V |
380 |
Min. working thickness |
mm |
12 |
Machine overall width |
mm |
1280 |
Machine overall height |
mm |
1620 |
Number of drilling units |
nr |
2 |
Revolutions |
s |
2800 |
Machine overall length |
mm |
2000 |
Approx. Weight |
Kg |
850 |
Min. distance between 2 holes |
mm |
250 |
Processed Stone Photos
-

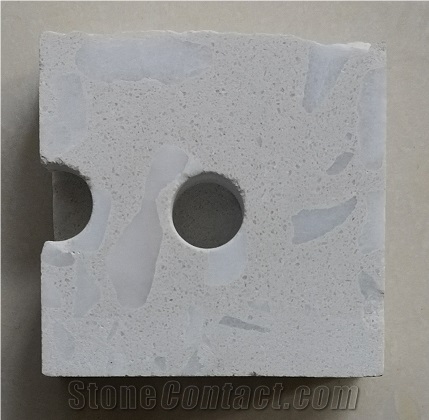

stone with undercut anchor
Components
-

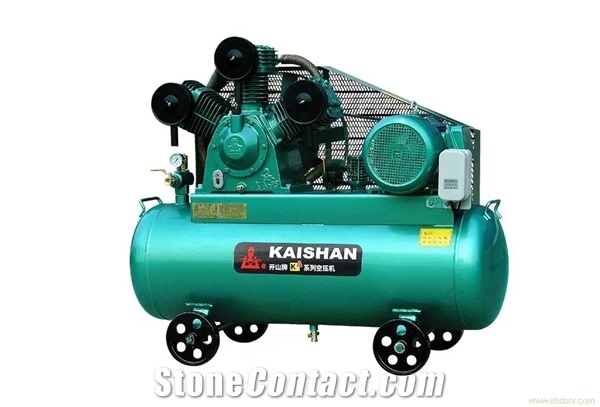

air compressor
¥Payment Required
Consumables
-

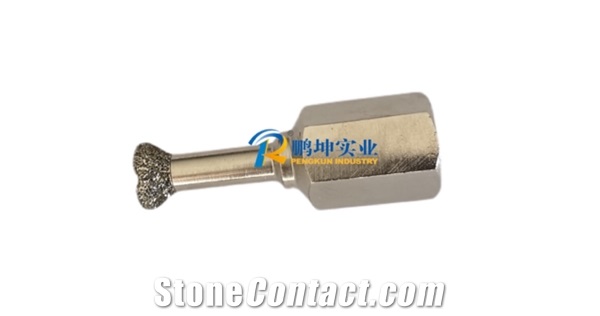

Drilling bit
Video
Install Video

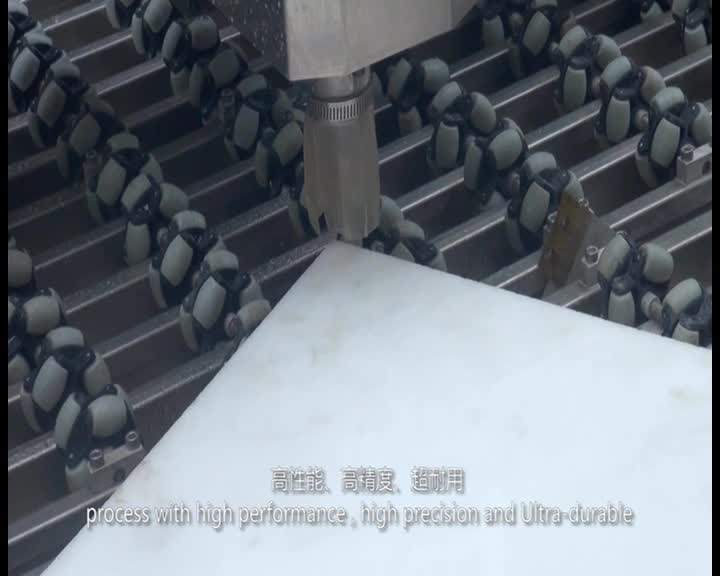

Operation Video
