SCHIND BIG BRO 3520 Vertical And Horizontal Bridge Cutting Machine For Small Blocks
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesVertical-Horizontal Block Cutting Machine
Usage:
Marble, Limestone, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 05,2002
Main Product:
Marble Cutting, Polishing Machine, Multi Wire Gangsaw, Block Cutting, Marble Block, Diamond Tool|
Machinery Function Features

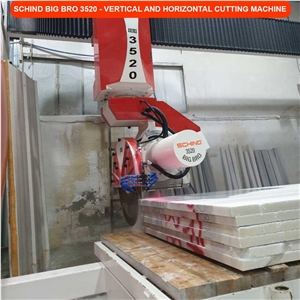

SCHIND Big Bro 3520 which is designed to process with small blocks and thick stones or to size more marble and granite slabs in one time. The operator has the opportunity to cut both vertically and horizontally at different angles by this new model.
Technical Data
Parameters |
Unit |
BIG BRO 3520 |
Machine overall width |
mm |
4400 |
A Axis Servo – SZGH Power-rpm/Servo Motor (with Reducer Control) |
kw |
2.5kw -- 1500 RPM 1/10 |
X & Y & Z Axis Linear Slide Carriages |
HIWIN 35 Linear Slide (ATIP) |
|
Vertical Saw Movement (Z Axis) |
mm |
0 - 700 |
Water Requirement |
L/min |
30 |
Max. Cutting Width |
mm |
2000 |
Z Axis Hydraulic -Hydraulic system with two different speed options |
kw |
Ø63 KRS 800 mm |
Total Weight |
Kg |
9500 |
Voltage 3 Phase |
V |
380V AC 50 Hz |
Cutting Speed (Feeding Speed) |
mm/sec |
2.6 |
Vertical Saw Motion |
mm |
0 - 700 |
Machine Electric Control System |
PLC Automatic System |
|
Total Power |
kw |
38 |
Machine overall length |
mm |
7800 |
Bridge Saw Motor Power |
kw |
25 |
Bridge Movement (Y Axis) |
mm |
2000 |
Dia. of Vertical Blade |
mm |
400 - 1200 |
Table Up/Down by 2 Pcs Hydraulic Piston Max 8 Tons -Hydraulic System Unit |
⁰ |
0 - 85⁰ |
C Axis Synchronous – GAMAK Power-rpm/Synchronous Motor (with Reducer Control) |
kw |
1.5kw -- 1500 RPM 1/10 |
Max. Cutting Length |
mm |
3500 |
Trolley Size(LxW) |
mm |
3500x200 |
X Axis Synchronous – SZGH Power-rpm/ Servo Motor (with Reducer Control) |
kw |
2.5kw --1500 RPM 1/10 |
Saw Speed |
rpm |
3000 |
Machine overall height |
mm |
5350 |
Circular Head Motion Automatic |
° |
0° 90⁰ Automatic |
Cutting Head Movement (X Axis) |
mm |
3500 |
Max. Cutting Depth |
mm |
420 |
Side Cutting and Profile Processing Angle |
° |
–30⁰ 0° 115⁰ |
Y Axis Synchronous – SZGH Power-rpm/ Servo Motor (with Reducer Control) |
kw |
2 x 1.5kw -- 1500 RPM 1/10 |
