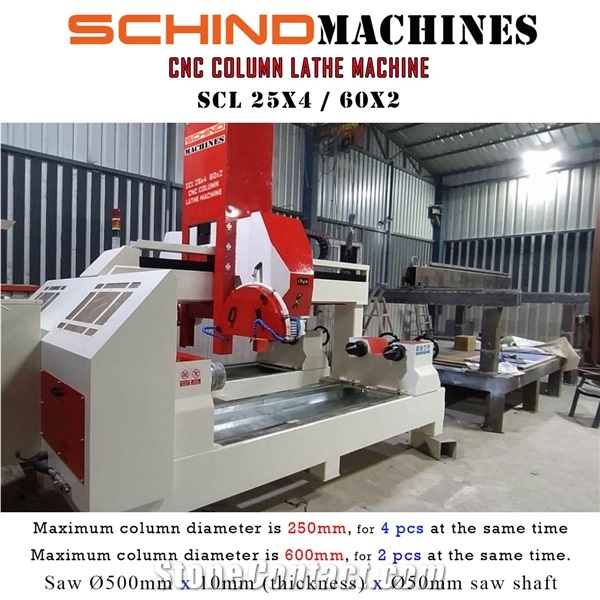

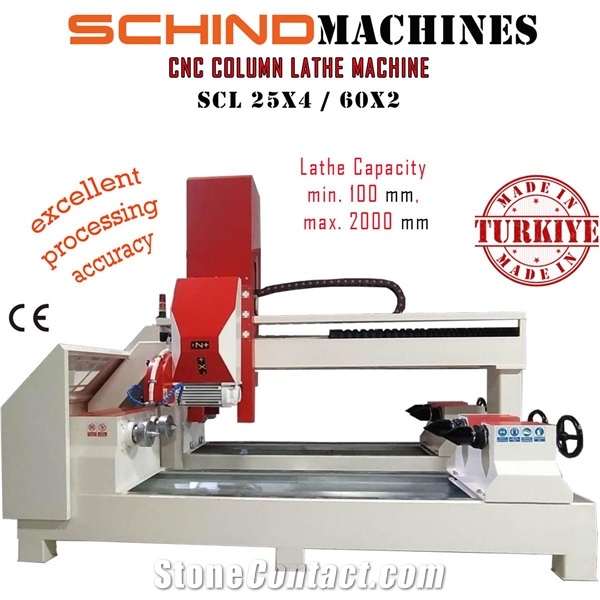

SCHIND SCL 25X4 / 60X2 CNC Column Lathe Machine

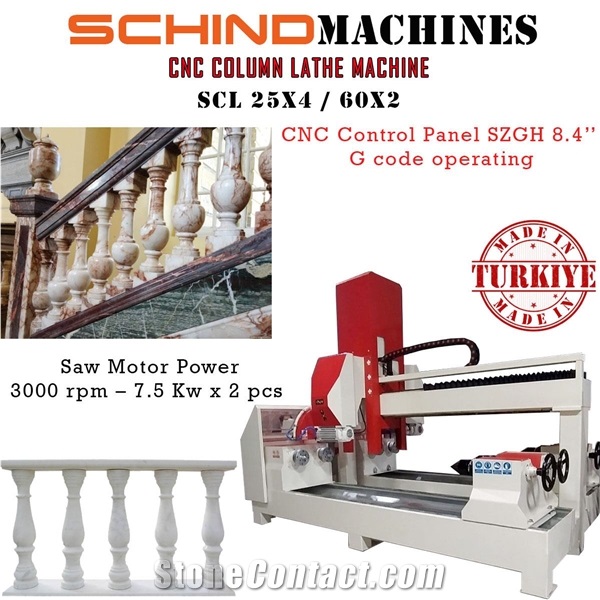

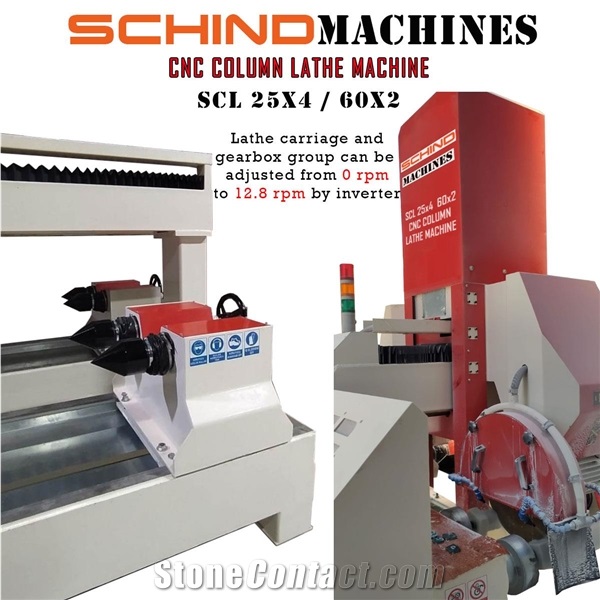

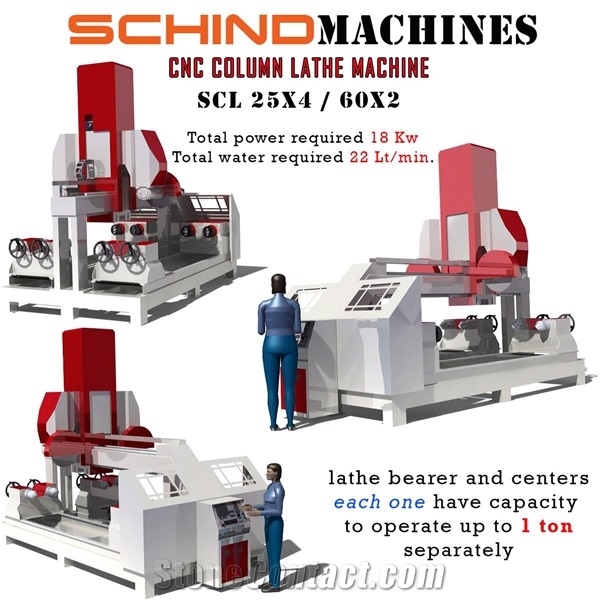

SCHIND SCL CNC is a CNC-based machine that enables the marble or granite connected to the lathe to be rotated in a circular motion and turned into a cylindrical or conical part by saw cutting, on top of its final design with lathe cutting tools. Schind SCL CNC column lathe machine have most efficient and suitable design for marble processing. CNC column machines use for marble, granite and other stones final product processing like marble column, marble handrail, marble stair rails, marble balcony railing. SCHIND 25x4 60x2 CNC COLUMN LATHE TECHNICAL SPECIFICATIONS 1 Machine Dimensions (L,W,H) 3650 x 1950 x 2820 mm 2 Side cutting (X axis) cutting Depth 2000 mm 3 Maximum column diameter is 250mm for 4 PCS at the same time 4 Maximum column diameter is 600mm for 2 PCS at the same time 5 Diameter of saw is electrolyzed diamond 500mm(diameter) x 10mm (thickness) x 50mm (Saw shaft diameter) 6 Saw Motor Power 3000 RPM – 7.5 KW x 2 PCS (Aldemirler brand) 7 Operating System / Computer-aided panel Automatic CNC 8 Total needed power 18 KW 9 Needed water flow 22 liters per minute 10 X axis motor power / forward move 1 KW Servo motor (OMRON brand) 11 Z axis motor power / forward move 1 KW servo motor (OMRON brand) 12 Control unit SZGH 8.4’’ (English Licensed) - G code operating 13 CODE INSTALLATION- USB2.0 14 Motion Card OMRON brand 15 All switches in the machine are of Siemens brand 16 All relays in the machine are of OMRON brand 17 All contactors included in the machine are of Telemecanique Schneider brand 18 Planetary gearbox used in X axis 1/10 is 110 trunk planetary type 19 Planetary gearbox used in Z axis 1/10 is 110 trunk planetary type 20 X axis motion is 35mm linear guide-way system. (A linear system is a mathematical model of a system based on the use of a linear operator. Linear systems typically exhibit features and properties that are much simpler than the nonlinear case) 21 The machine is Suitable for both marble and granite cutting process, only throw changing the cutting saw blade and keep going on. 22 Machine oiling system is easy to be oiled. 23 Z axis were cemented and produced as a strong hard shaft over this process. (Cementation: is a process of altering a metal by heating it in contact with a powdered solid, especially a former method of making steel by heating iron in contact with charcoal). 24 Lathe bearer and gear-box group can be set off from 0 RPM to 12.8 RPM per minutes by inverter aid. 25 Working scale between lathe bearer and centers arrange from 2000 mm to 100 mm 26 The motor protects itself in the event of mechanical interference caused by a user error. So, when you encounter a problem with this tour, you can press the reset button from the panel and continue again where you left off. 27 There are limited protection sensors on the input and output of all axes in the machine to avoid mechanical collisions. 28 The oil to be used in our machine must be a high-quality grease (wheel bearing grease) Rubber-free one. 29 Lathe bearer and centers can each one individually have the capacity to operate up to 1 tons.
